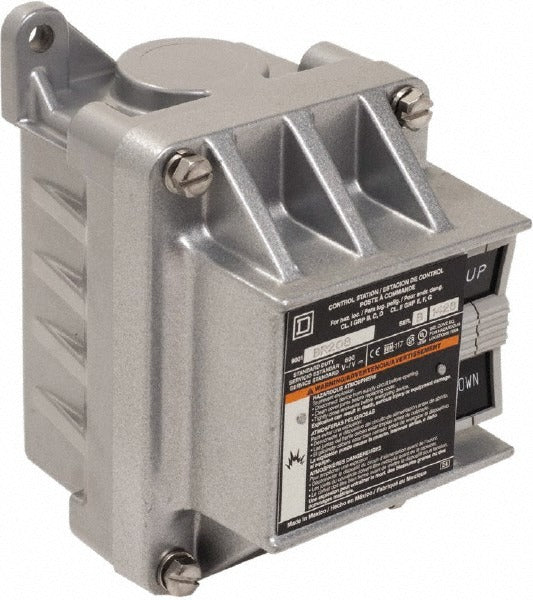

Schneider Electric 9001BR208 Push-button Control Station

Product Description

The SCHNEIDER ELECTRIC 9001BR208 is a two-operator momentary push-button control station designed for industrial control applications where reliable operator interface is required in demanding environments. The station features flush push button operators with a normally open (NO) contact configuration and Up legend marking. Rated at 5 amps at 600 volts AC, this gray surface-mount enclosure carries a NEMA 7 and 9 rating, making it suitable for use in hazardous locations involving explosive atmospheres and dust-ignitionproof conditions. Electricians and industrial controls technicians install this unit as part of motor control, conveyor, or process automation circuits.

This control station is used in industrial and commercial facilities where surface-mounted operator controls are required in classified hazardous locations. The NEMA 7 and 9 rating covers use in environments with flammable gases or combustible dust. The Up legend makes it appropriate for hoist, lift, or directional control applications. It ships as a single unit and is intended for use wherever a compact, two-button momentary control interface is needed in a compliant enclosure.

Key Features

• NEMA 7 and 9 rated enclosure for hazardous location use including explosive gas and combustible dust environments
• Two flush push button operators with momentary action and normally open contact configuration
• Up legend marking suited for hoist, lift, and directional control circuits
• Rated 5 amps at 600 volts AC for compatibility with standard industrial control voltage levels
• Surface mount design for straightforward panel or wall installation
• CSA, UL Listed, and RoHS compliant for broad code acceptance

Compatibility

Designed as an OEM-style surface-mount control station for use in industrial motor control and process automation systems requiring a NEMA 7 and 9 rated momentary push-button interface.

Installation Notes

Installation should be performed by a licensed electrician familiar with NEC Article 500 requirements for hazardous location wiring. De-energize all circuits and verify the absence of voltage before opening any enclosure or making wiring connections. Confirm the area classification matches the NEMA 7 and 9 rating before installation. Follow all applicable local electrical codes and the manufacturer instructions for conduit entry and sealing fittings in classified locations.
