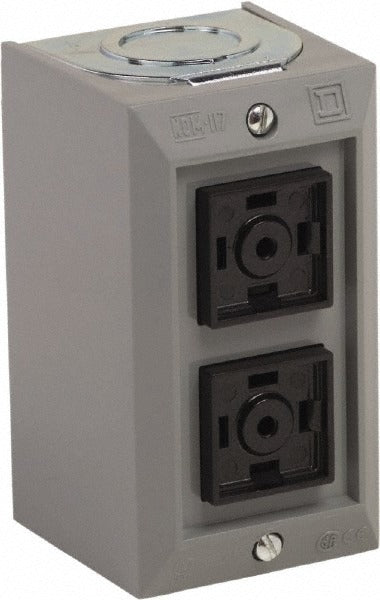

Schneider Electric 9001BG214 Push-button Control Station

Product Description

The SCHNEIDER ELECTRIC 9001BG214 is a momentary push-button control station designed for industrial and commercial electrical control applications. It houses two projecting push-button operators with a 2NO/2NC contact configuration, making it suited for start/stop or dual-command control circuits. Rated at 600 volts and 5 amps, this surface-mount station carries NEMA 1 enclosure protection, appropriate for indoor installations where no water or oil exposure is expected. It is installed by licensed electricians on machine control panels, motor control centers, and similar low-voltage command-and-control wiring systems.

This control station is used in light industrial and commercial environments where surface-mounted operator stations are required. The projecting push-button style provides tactile and visual clarity for operators in typical plant or facility settings. With no legend markings included, the installer or facility team can label the buttons to match the specific control function. Common applications include motor start/stop circuits, conveyor controls, and general-purpose machine switching in dry indoor locations.

Key Features

• Momentary switch action for start/stop or pulse-command control circuits
• 2NO/2NC contact configuration supports dual-function wiring in a single station
• Two projecting push-button operators for clear tactile feedback
• 600-volt, 5-amp rating suitable for standard industrial control voltages
• NEMA 1 enclosure rating for dry indoor environments
• Surface-mount design simplifies panel and wall installation
• Listed to CE, CSA LR25490 Class 3211 03, and UL standards

Compatibility

Designed as an OEM-style surface-mount control station for use in industrial and commercial electrical control panel assemblies requiring momentary push-button operators with 2NO/2NC contact blocks.

Installation Notes

Installation should be performed by a qualified licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the circuit before mounting or wiring the control station. NEMA 1 enclosures are rated for dry indoor use only and must not be installed in wet, oily, or contaminated environments. Verify contact block wiring against the control circuit schematic before restoring power.
