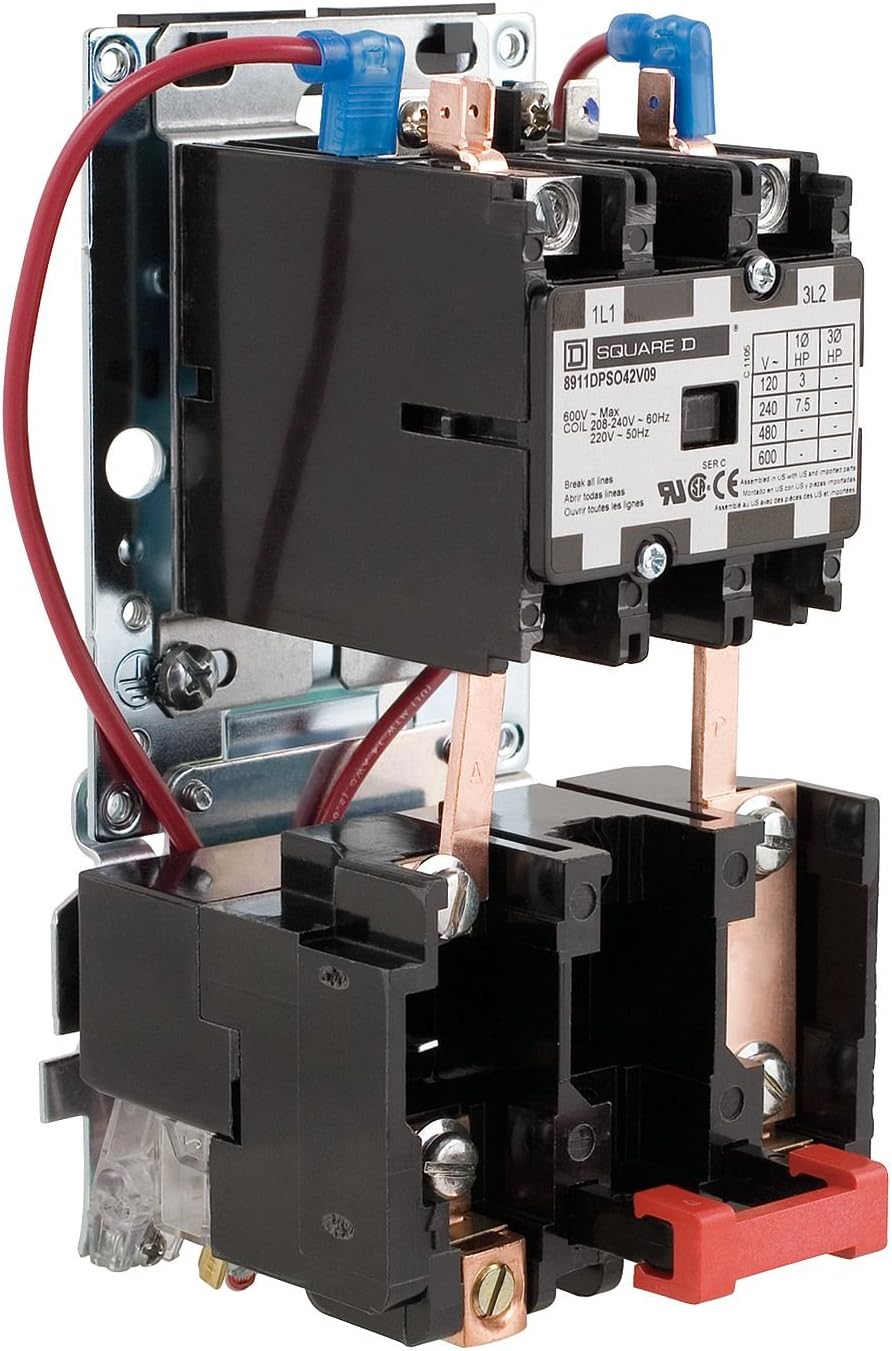

Schneider Electric 8911DPSO42V09 Motor Starter 600 Volts 40 Amp Compact Size

Product Description

The Schneider Electric 8911DPSO42V09 Motor Starter is designed to provide efficient and reliable starting of motors, primarily in low-duty cycle applications such as air compressors, agricultural machinery, pumps, and HVAC systems. It operates at a voltage of 600 volts and supports up to 40 amps of current.

• Compact design ideal for space-limited installations.
• Rated for 7.5 horsepower at 230 volts on a single phase.
• Features a powder-coated finish in black and gold for durability.

Product Highlights

This motor starter is known for its robust build and precision in performance, especially in sectors where motor runtime is intermittent. The starter is equipped with a non-replaceable coil, compatible with a range of voltages, enhancing its versatility across various electrical setups.

Product Information

Standard Information

• Height: 7 inches
• Width: 3.5 inches
• Depth: 4.09 inches

Technical Specifications

• Brand: Schneider Electric
• Type: Motor Starter
• MPN: 8911DPSO42V09
• Pole Configuration: 2 Pole
• Voltage: 600 Volts
• Amperage: 40 Amp
• Phase: 1
• Enclosure: Not Rated
