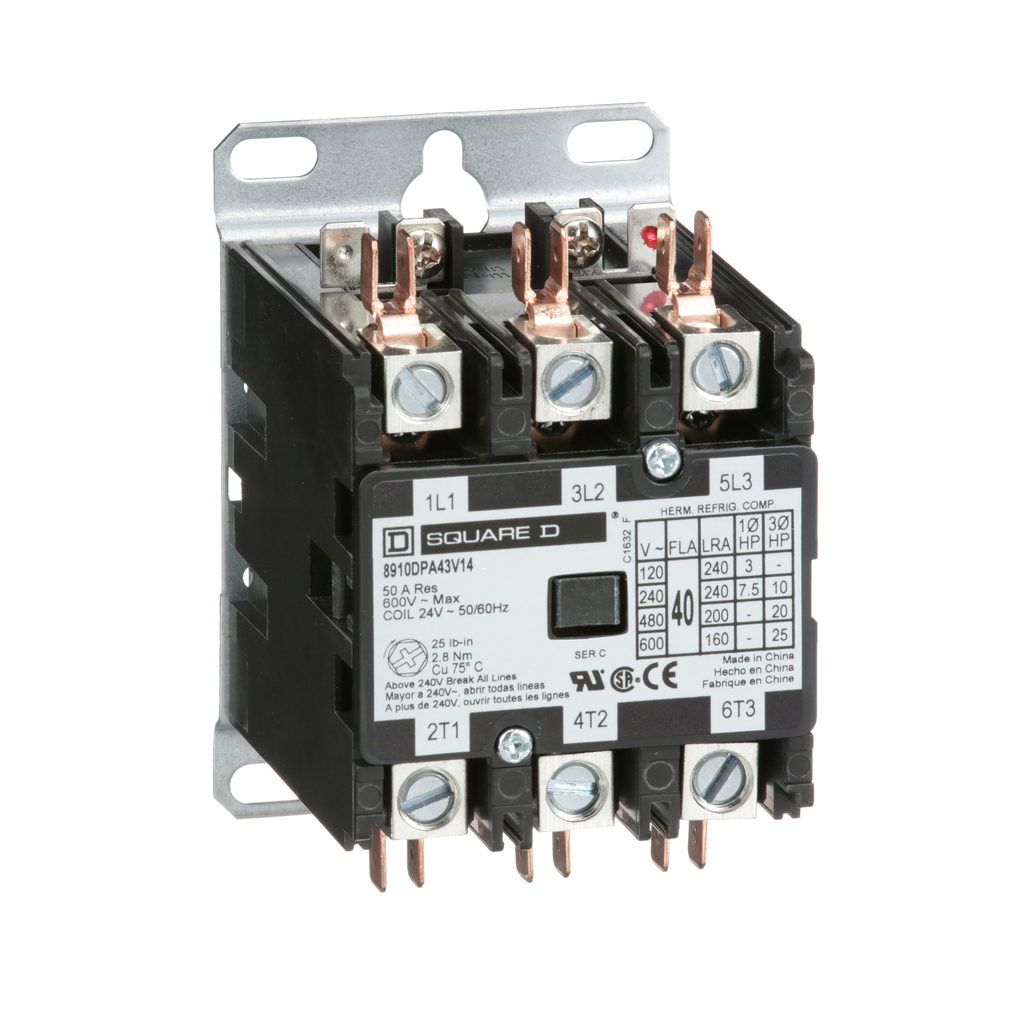

Square D 8910DPA43V14 Definite Purpose Contactor 40 Amp 3 Pole

The Square D model 8910DPA43V14 is a three-pole, non-reversing definite purpose contactor designed for robust performance in heating, air conditioning, and refrigeration applications. Its construction facilitates reliable operations in these critical environments.

• Rated for up to 40 amps for full load applications
• Features a 24 VAC coil, operational in both 50 and 60 Hz setups
• Supports up to 50 HP motors at 600 VAC in a compact form factor

This contactor is equipped to handle demanding loads with a setup that includes a 3 HP capacity at 115 VAC single phase, escalating to 25 HP at 575 VAC three-phase.

Product dimensions are 3.75 inches length by 2.37 inches width, and 3.00 inches height, making it suitable for streamlined installation in a variety of settings.

Technical Specifications:

• Amperage: 40 Amp
• Voltage: Up to 600 VAC
• Number of Poles: 3 Pole
• Coil Voltage: 24 V AC 50/60 Hz
• Certifications: UL Recognized, CSA Certified
