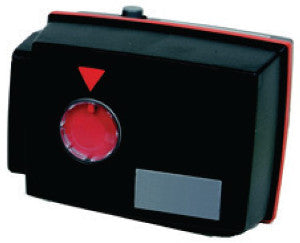

Schneider Electric 8601110000 EM9 Shoe Valve Actuator Modulating 24 Vac 90°/180° Rotation

Product Description

The Schneider Electric 8601110000 EM9 Shoe Valve Actuator is designed for modulating control in HVAC systems. This actuator operates on twenty-four volts alternating current and is suitable for various applications requiring reliable actuation. The actuator features a non-spring return mechanism and offers a rotation range of ninety to one hundred eighty degrees, making it versatile for different valve configurations.

• Modulating control signal for precise valve adjustments
• IP54 rating for protection against dust and water
• Robust design with a torque output of fifteen Newton meters

Product Highlights

This actuator is ideal for shoe valves in temperature control applications. It ensures consistent operation while meeting industry standards for protection ratings.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Product Line: EM9, M9B

Technical Specifications

• Actuator Type: Electric
• Control Signal: Modulating
• Power Input Voltage: 24 VAC
• Torque: 15 Nm
• Protection Rating: IP54
• Mechanical Movement: Rotary
• Rotation Range: 90° to 180°
• Control Signal Range: 0 to 10 VDC, 0 to 20 mAdc, 2 to 10 VDC, 4 to 20 mAdc
