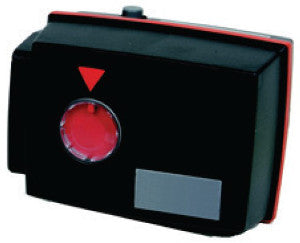

Schneider Electric 8601020000 Rotary Shoe Valve Actuator 230Vac 15Nm

Product Description

The Schneider Electric 8601020000 is a rotary shoe valve actuator designed to operate efficiently at 230 VAC with a torque capacity of fifteen Nm. This actuator works with a three-point floating control signal and does not return to the spring position upon power loss. It is built with an IP54 protection rating, making it suitable for various industrial environments.

• Actuator Type: Electric
• Control Signal: 3-Point Floating
• Protection Rating: IP54

Product Highlights

This actuator is ideal for controlling shoe valves in HVAC systems and other applications requiring efficient valve operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 8601020000
• Power Input Voltage: 230 VAC
• Torque: 15 Nm
• Mechanical Movement: Rotary
• Protection Rating: IP54
• Product Series: EM9, M9B
• Actuator Use: Shoe Valves
• Weight: 815 g
• Height: 8.7 cm
• Width: 13.7 cm
• Length: 6.6 cm
