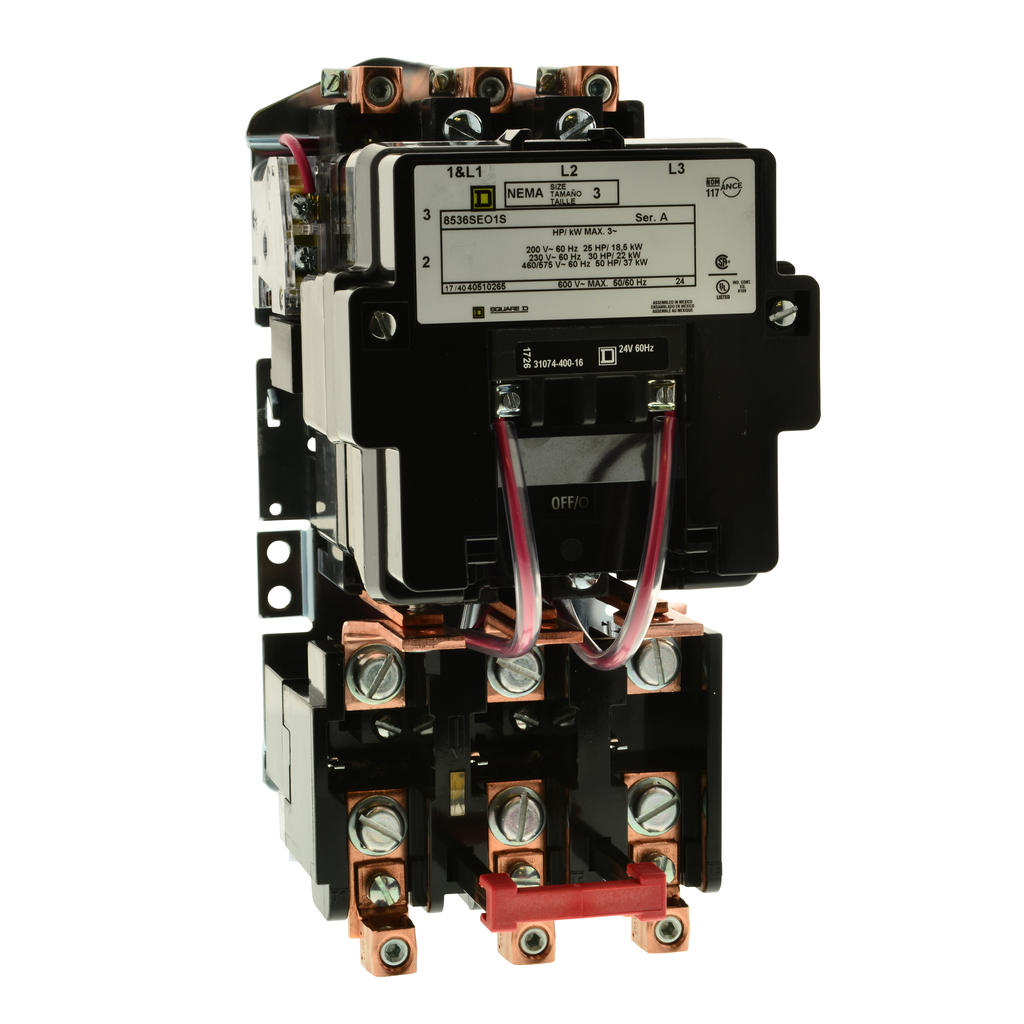

Schneider Electric 8536SEO1V08 NEMA Size 3 208 VAC 90 Amp 50 Hp Motor Starter

Product Description

The Schneider Electric 8536SEO1V08 motor starter is designed for robust and reliable full-voltage starting and stopping of AC squirrel cage motors. This non-reversing NEMA Size 3 starter operates up to 90 amps, suitable for motors up to 50 horsepower.

• Optimized for three-phase motors.
• Features a melting alloy type overload relay.
• Open device without enclosure enhances versatility in installation.

Product Highlights

This motor starter supports a variety of voltages and includes a 208 VAC 60 Hz coil. It is equipped with Type CC thermal units for precise over current protection, ensuring safe operation under high-demand conditions.

Product Information

Standard Information

• Height: 11.09 inches
• Width: 5.47 inches
• Depth: 6.50 inches

Technical Specifications

• Brand: Schneider Electric
• MPN: 8536SEO1V08
• Voltage: 208 VAC
• Amperage: 90 Amp
• Enclosure Type: Open
• NEMA Size: 3
• Number of Phases: 3 Phase
• Certifications: CSA, NEMA, UL Listed
• Country of Origin: Made in USA
