Schneider Electric 8536SDO1V02S Motor Starter 25HP

Product Description

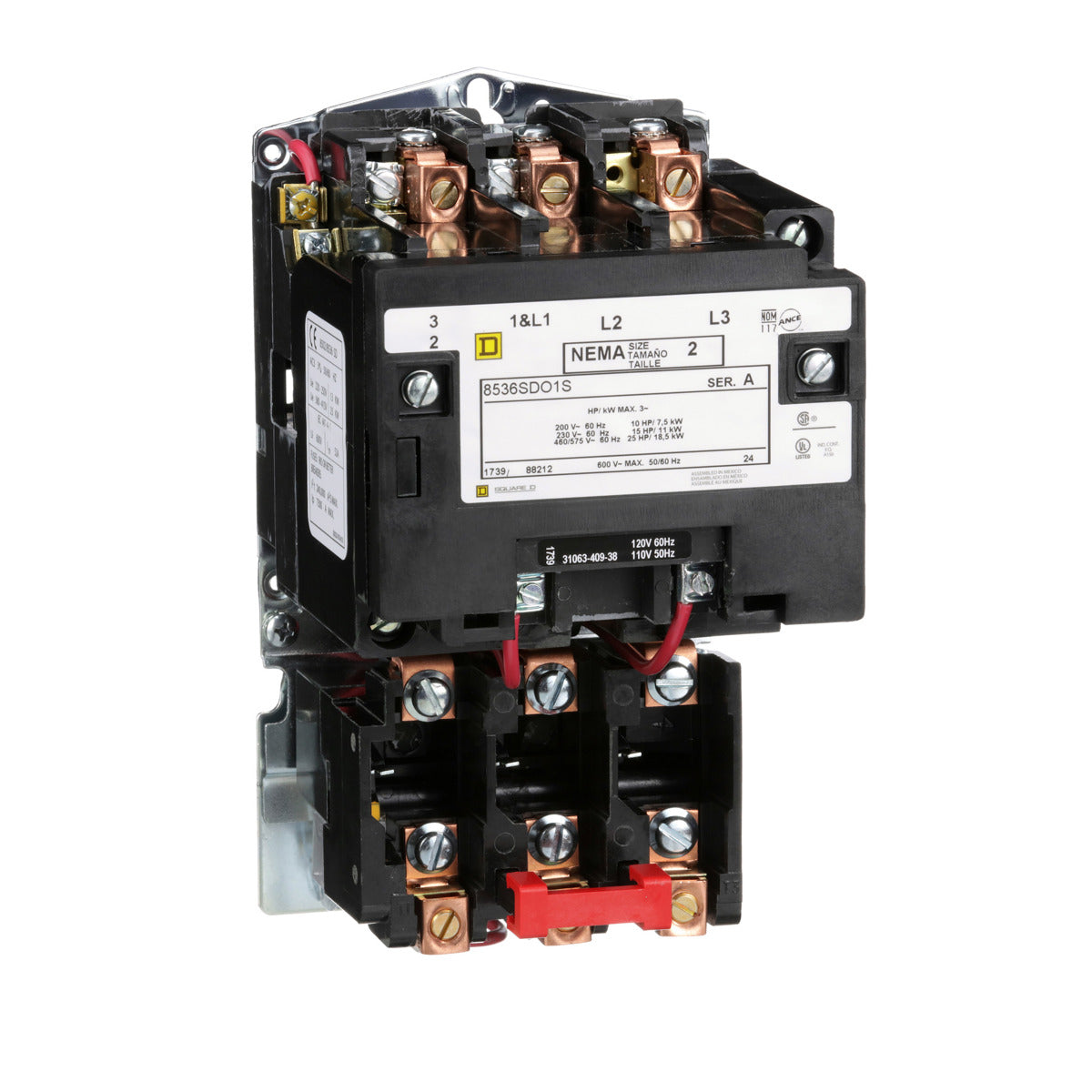

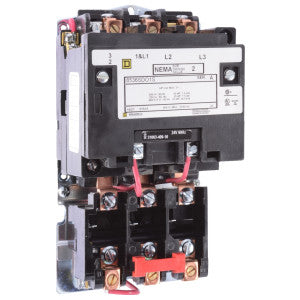

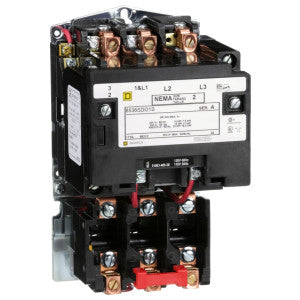

The SCHNEIDER ELECTRIC 8536SDO1V02S is a NEMA motor starter, Type S, nonreversing, Size 2, with a 45A amperage rating and 25HP at 460VAC. It features a 5kA SCCR, 3 phase, 3 pole design, melting alloy, and a 120VAC coil. This open-enclosure starter is designed for full voltage starting and stopping of AC squirrel cage motors.

• NEMA motor starter, Type S, Nonreversing, Size 2
• 25HP at 460VAC, 5kA SCCR, 3 phase, 3 pole
• Melting alloy, 120VAC coil, Open enclosure

Product Highlights

NEMA motor starter for AC squirrel cage motors. Features include melting alloy overload relay and replaceable coils.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: 8536SDO1V02S
• Country of Origin: Mexico

Technical Specifications

• Type: S
• Application: Motor Starter
• Amperage: 45A
• Horsepower: 25HP
• Voltage: 460VAC
• SCCR: 5kA
• Phase: 3
• Poles: 3
• Coil Voltage: 120VAC
• Enclosure: Open
• Nonreversing: True
• Catalog Number: 8536SDO1V02S
• Manufacturer: Schneider Electric
• Brand: SQUARE D
• NEMA Starter Size: 2
• Rated Current: 45A
• UNSPSC: 39121521
• Standards: Trade Agreements Act (TAA)
• Phase Type: Three Phase
