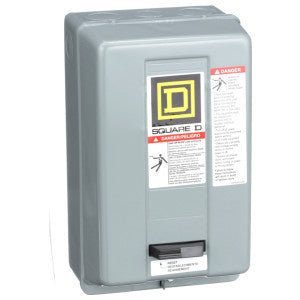

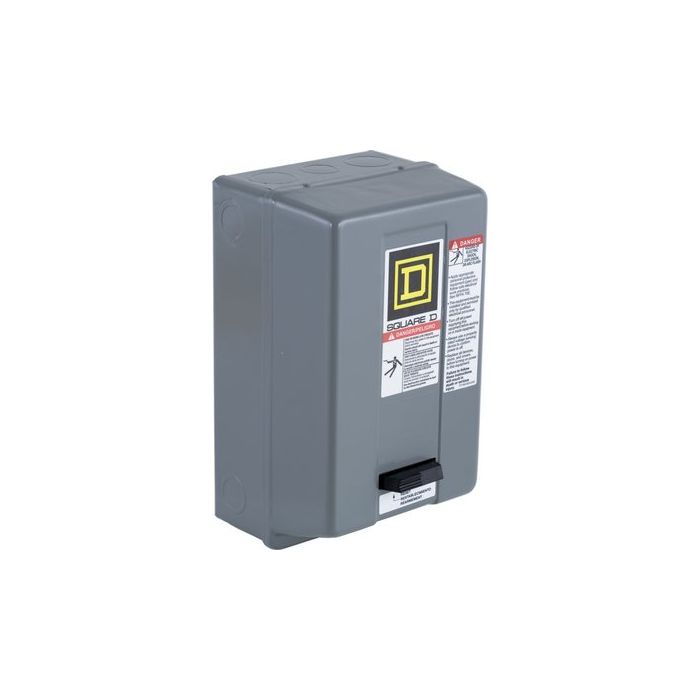

SCHNEIDER ELECTRIC 8536SCG3V02S Sqd 120V Starter

Product Description

The SCHNEIDER ELECTRIC 8536SCG3V02S is a reliable Square D full voltage starter, rated at 27 Amps. It is designed for non-reversing three-phase, three-pole motor control. This starter is ideal for starting and stopping AC squirrel cage motors in various applications.

• Rated for 27A and effective for three-phase motor applications.
• NEMA 1 enclosure offers protection suitable for general environments.
• Includes a 120V coil for seamless operation.

Product Highlights

This starter can operate motors with 7.5HP at 200/230VAC and 10HP at 460/575VAC. It is built for efficiency and reliability, providing necessary protection and control for motor operations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Square D by Schneider Electric

Technical Specifications

• Amperage: 27 Amps
• Voltage: 240 Volts
• Phase Type: Three Phase
• UPC: 785901864721
• Part Number: 8536SCG3V02S
• Coil Voltage: 120V
• Enclosure: NEMA 1
• Horsepower @ 200/230VAC: 7.5HP
• Horsepower @ 460/575VAC: 10HP
• Poles: 3
• NEMA Starter Size: 1
• Rated Current: 27A
