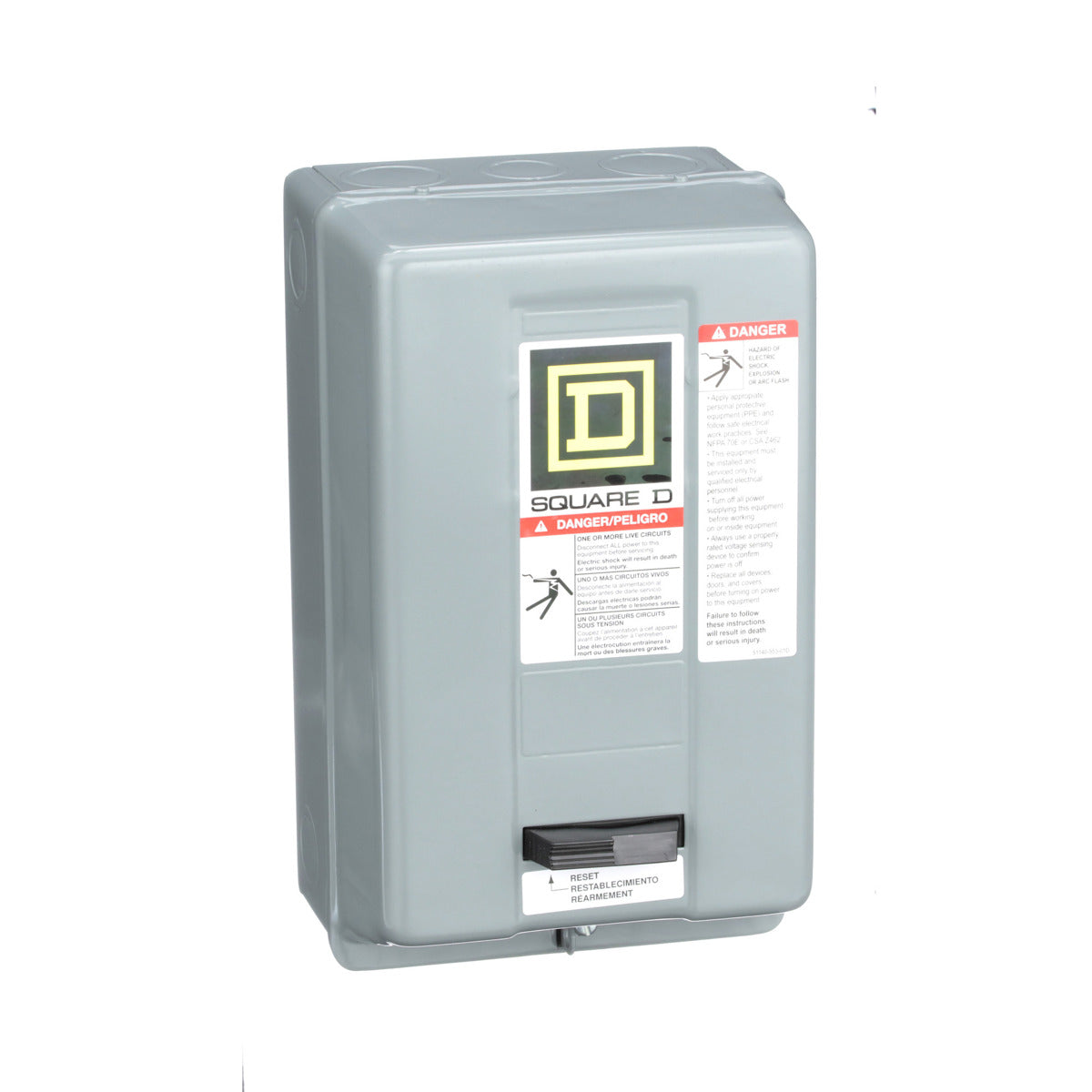

Schneider Electric 8536SAG11V02 NEMA Size 00 Motor Starter 9A 120VAC Non-Reversing

Product Description

The Schneider Electric Model 8536SAG11V02 is a non-reversing magnetic motor starter designed for starting and stopping AC squirrel cage motors. It is equipped with a melting alloy type overload relay that senses overcurrent conditions, ensuring optimal protection during operation.

• Robust design with a painted sheet steel NEMA 1 enclosure for general-purpose use.
• Operates with a 110/120 VAC 50/60 Hz coil, ideal for various industrial environments.
• UL Listed and CSA Certified, offering a safe and reliable performance.

Product Highlights

This motor starter features a compact design, making it suitable for installation in tight spaces while handling moderate loads, with a 9A rating and capable of accommodating up to 1 HP at 230 VAC in single phase applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• MPN: 8536SAG11V02
• Category: Motor Starters
• Voltage: 1000 Volts
• Contact Type: Normally Open
• Certifications: CSA, CE, UL, NEMA
• Enclosure: NEMA 1 Painted Sheet Steel
• Width: 6 inches
• Height: 10 inches
• Depth: 5.56 inches
• Current: 9 Amp
• NEMA Size: 00
• Coil Voltage: 120 VAC at 60 Hz; 110 VAC at 50 Hz
