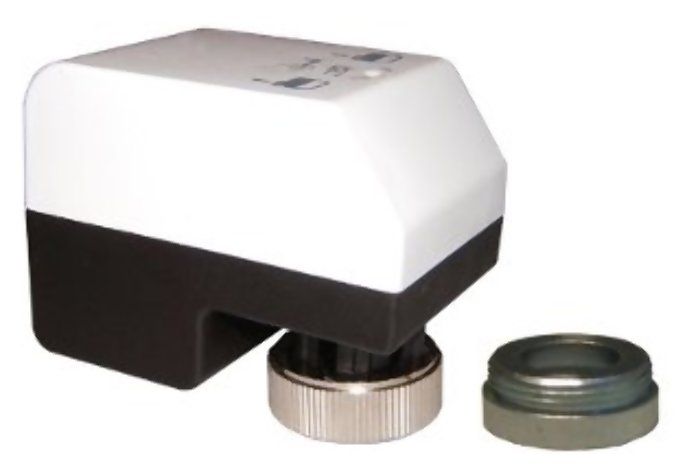

Schneider Electric 8532320000 Direct Coupled Actuator 45 ft.-lb.

Product Description

The Schneider Electric 8532320000 is a direct coupled actuator with a torque rating of forty-five foot-pounds. This actuator operates on twenty-four volts alternating current and consumes 0.5 VA. It is designed for modulating and floating increase/decrease control.

• Spring return mechanism
• Includes a stroke indicator
• Allows manual override with a socket head key

Product Highlights

The actuator provides reliable performance with little maintenance required. It features a magnetic clutch to protect the actuator during continuous operation. This design helps to prolong the life of the actuator and saves energy.

Product Information

Standard Information

• Brand: Schneider Electric
• Part Number: 8532320000

Technical Specifications

• Power Consumption: 0.5 VA
• Operating Conditions: 23°F to 131°F (5°C to 55°C)
• Electrical Connections: 5 ft., 3 wires connection cable
• Housing Rating: IP43
