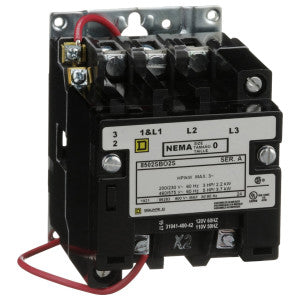

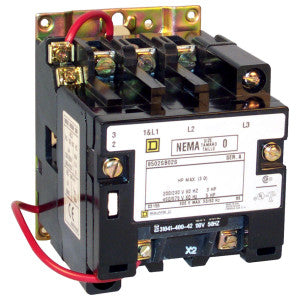

SCHNEIDER ELECTRIC 8502SBO2V02S Type S Non-Reversing Contactor 18A

Product Description

The SCHNEIDER ELECTRIC 8502SBO2V02S is a Type S non-reversing magnetic contactor designed for switching heating loads, capacitors, transformers, and electric motors with separate overload protection. This three-pole NEMA Size 0 contactor handles up to eighteen amps and operates on a 110/120 volt coil wired for separate control. It is an open style device without an enclosure and has both UL and CSA certifications.

• Switches heating loads, capacitors, transformers, and electric motors.
• Features a 110/120 VAC 50/60 Hz coil for separate control.
• Offers a maximum short-circuit current rating of 100 kA per UL508A with proper protection.

Product Highlights

This contactor is ideal for applications requiring reliable control of electrical loads and is suited for use in various industrial and commercial settings.

Product Information

Standard Information

• Rated Current: 18A
• Coil Voltage: 110/120V

Technical Specifications

• Dimensions: 4.34 inches tall, 3.22 inches wide, and 4.22 inches deep
• Weight: 2 pounds
• UPC: 78590186283
