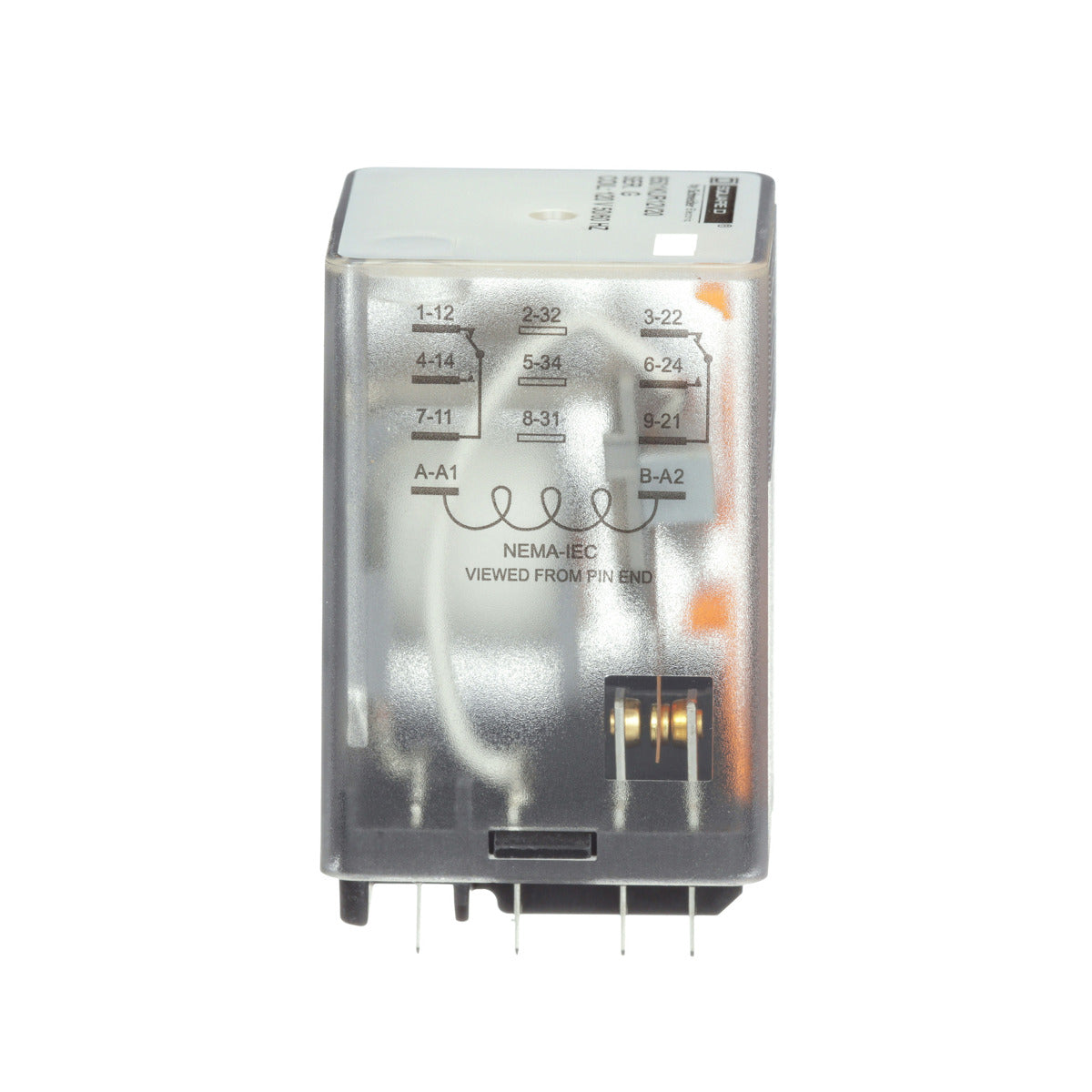

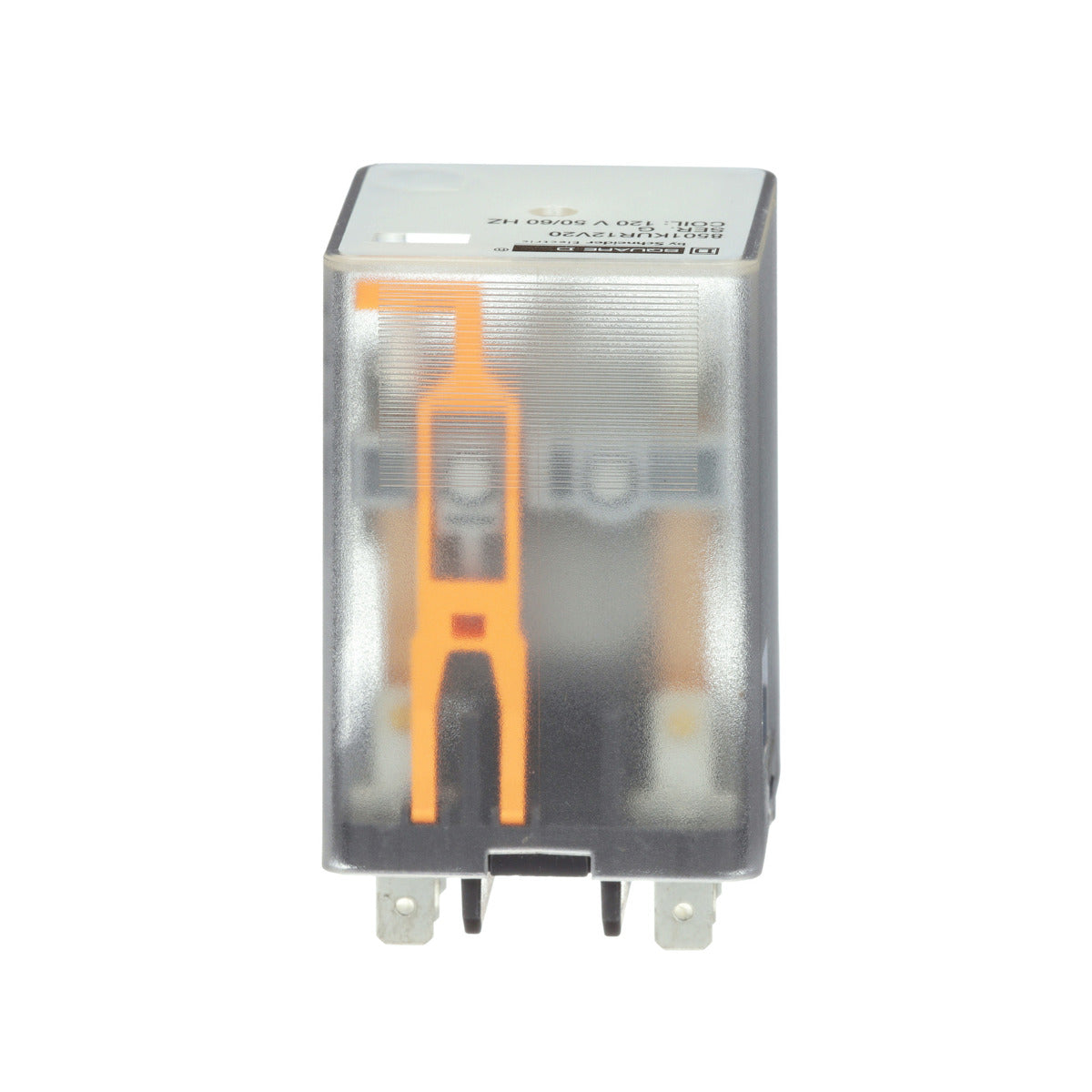

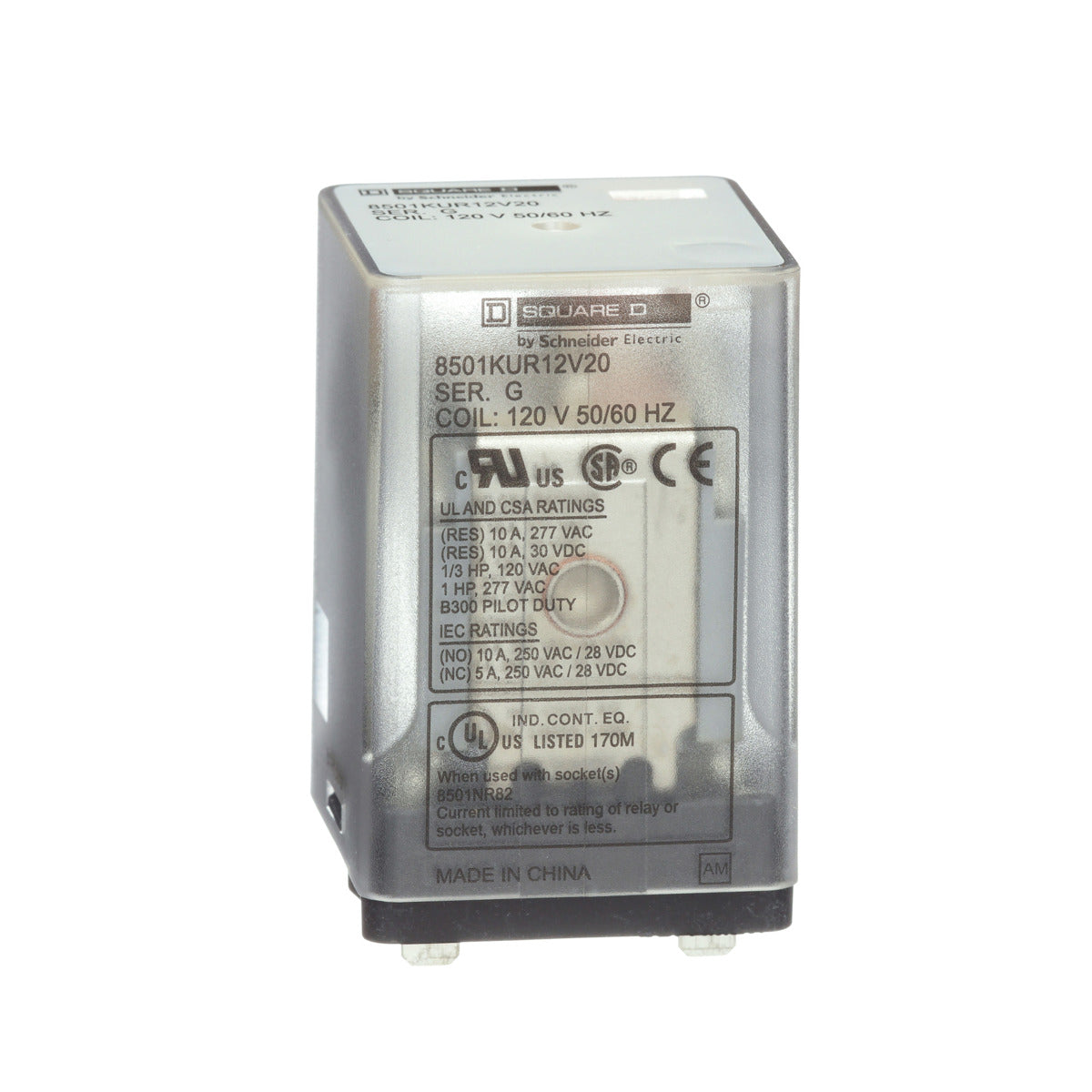

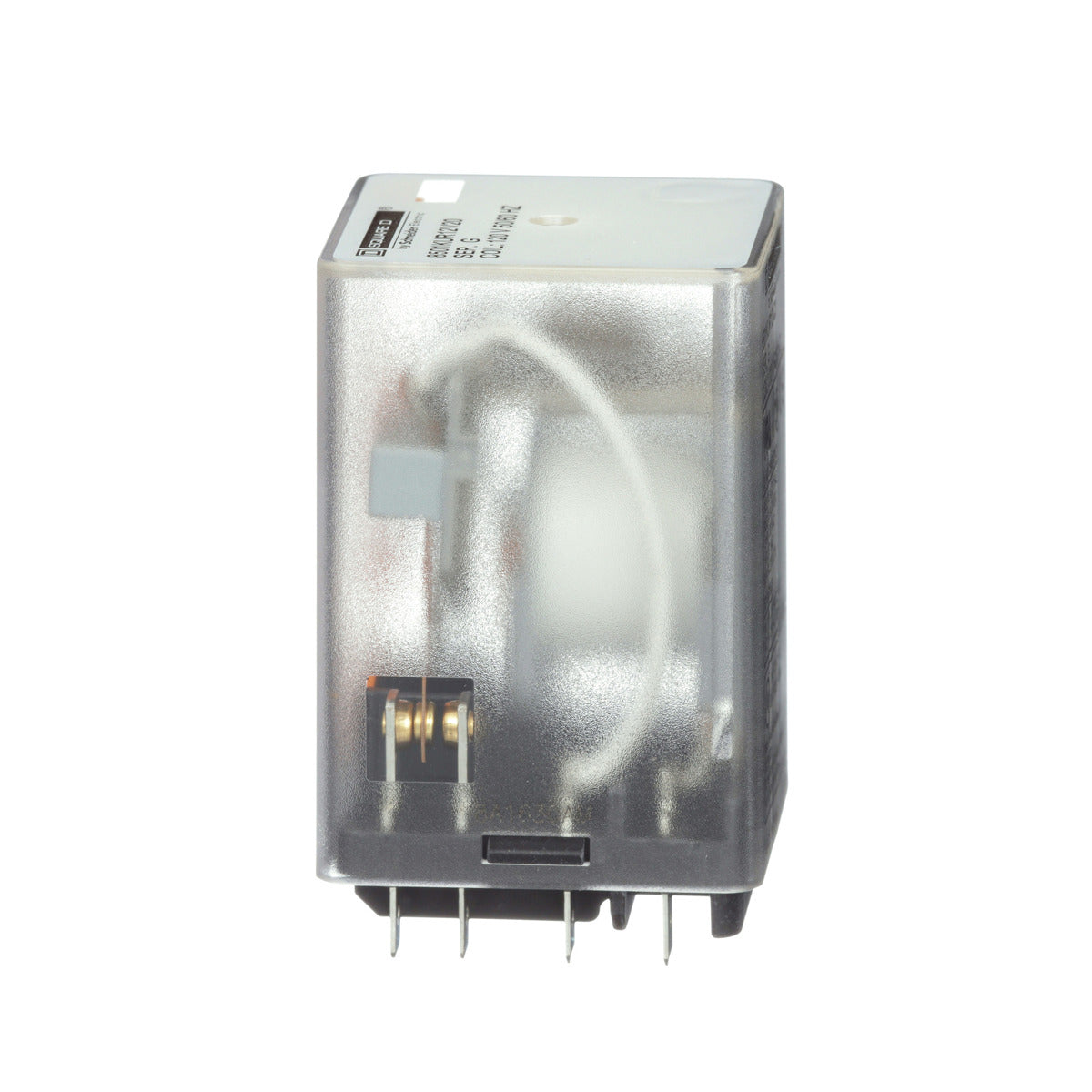

Schneider Electric 8501KUR12V20 Relay 120VAC 10A DPDT Plug-In

Product Description

The Schneider Electric 8501KUR12V20 DPDT relay is a robust device designed to facilitate easier and more reliable switching in various applications. The product's ability to plug into relay sockets, such as the 8501NR82, makes it ideal for quick replacements. Its dual-contact configuration enhances functionality, covering a wide range of operating voltages.

• DPDT contact arrangement allows for versatile wiring setups.
• 120 VAC coil voltage compatible with common industrial systems.
• Rated for up to 10 amps in switching applications.

Product Highlights

This relay boasts a sturdy square design, ensuring it fits seamlessly into existing setups without any hassle. The contacts are made of durable silver alloy, ensuring longevity and reliability in demanding conditions. Its enclosed design protects the components from environmental factors.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 8501KUR12V20
• UL Listed: Yes, confirms to safety standards
• CSA Certified: Yes, meets international standards

Technical Specifications

• Contact Type: DPDT
• Coil Voltage: 120V AC
• Contact Rating: 10A at 277V AC, 10A at 30V DC
• Mounting Style: Plug-in, socket type
• Pin Configuration: 8-pin arrangement
• Operating Temperature Range: -40 to 131 Degrees F
• Compliance: RoHS 2011/65/EU
• Country of Origin: China
