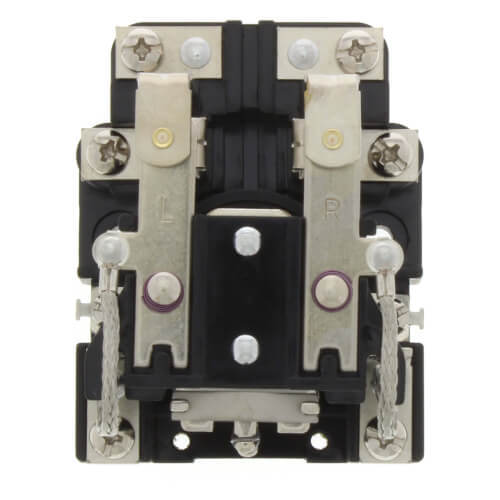

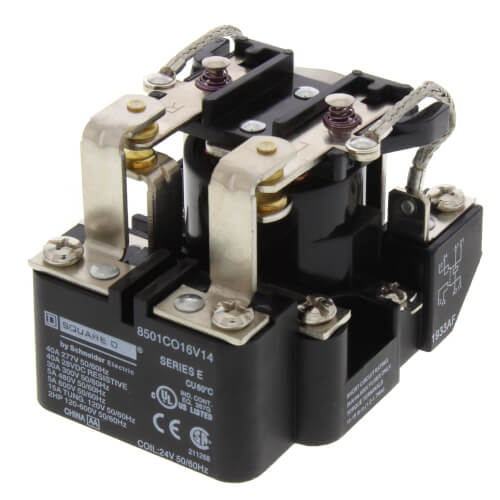

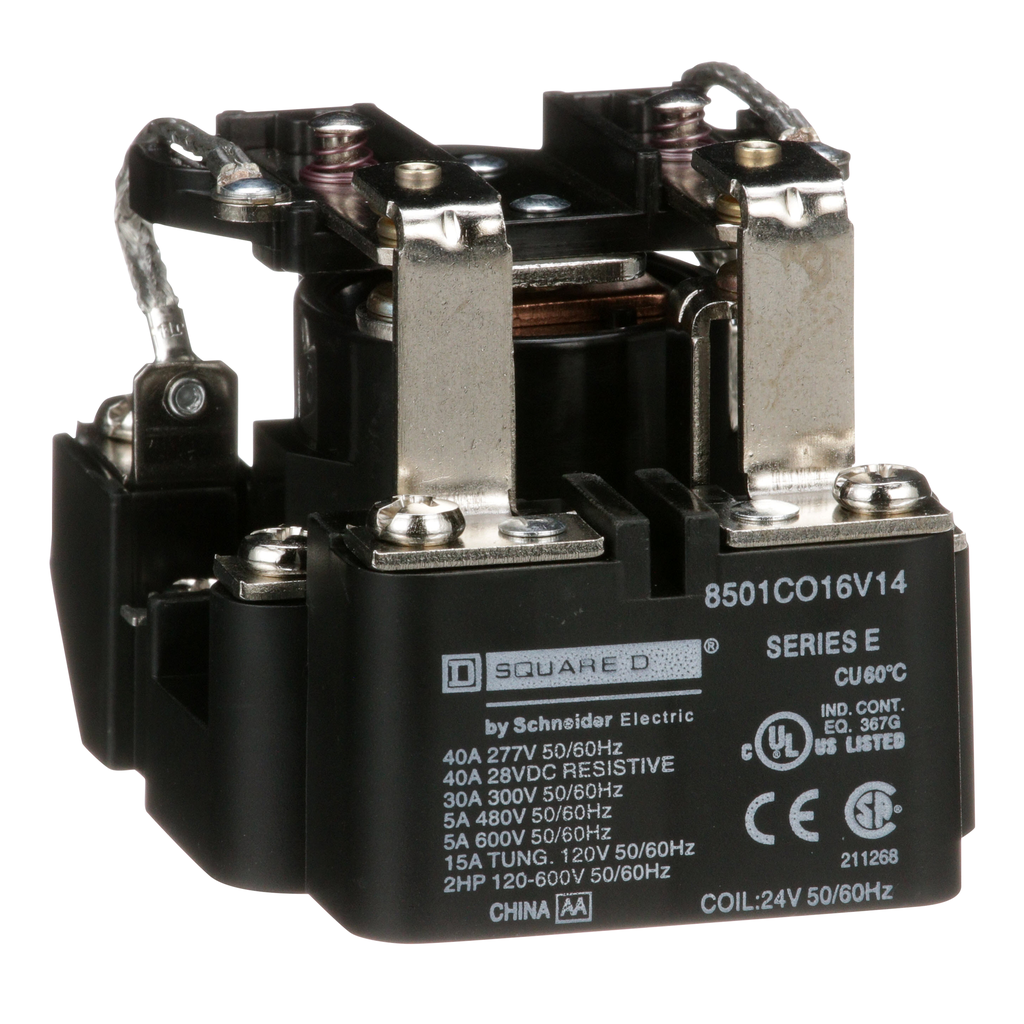

Schneider Electric 8501CO16V14 Power Relay 24 VAC 30 Amp DPDT

Product Description

The Schneider Electric model 8501CO16V14 is a robust power relay used extensively in industrial environments to manage loads in devices and systems. Compatible with 24 VAC circuits, this relay supports up to 30 amps, suited for small single-phase motors and other light loads often used in applications such as electric heaters, pumping systems, and conveyors.

• DPDT contact configuration with two normally open and two normally closed contacts.
• Can handle a maximum switching voltage of 600 VAC, enabling effective power management.
• Designed to be panel mounted, facilitating easy installation in restricted spaces.

Product Highlights

Constructed for durability with an open frame design, this relay promises reliable operation and extended usability in demanding settings. It is certified by UL listed and CSA, ensuring compliance with North American safety standards.

Product Information

Standard Information

• Coil Voltage: 24 VAC.
• Current Rating: 30 Amps.

Technical Specifications

• Operation Mode: Electric.
• Measurement System: Metric.
• Part Number: 8501CO16V10.
• Country of Origin: China.
• Certifications: CE, CSA, UL Listed File E78351 CCN NLDX.
