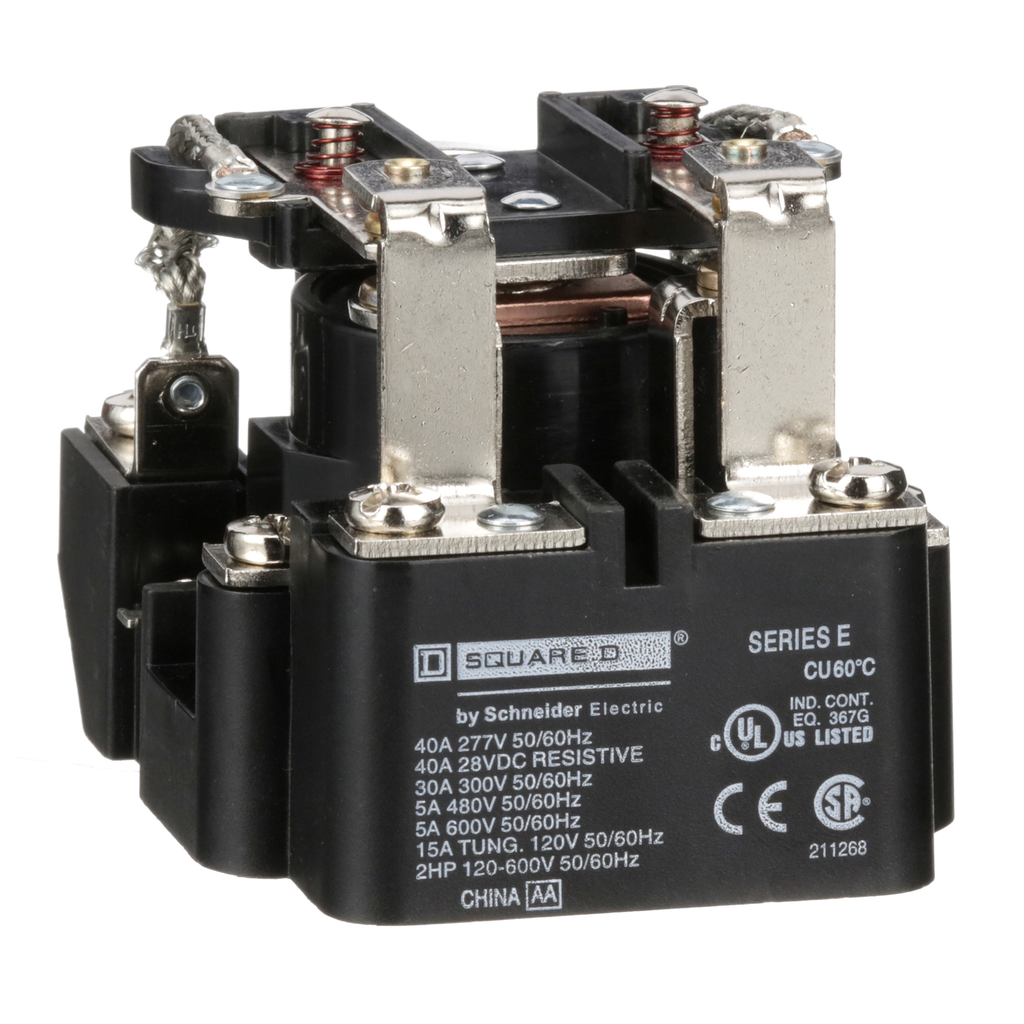

Schneider Electric 8501CDPDT Power Relay 120 VAC

Product Description

The Schneider Electric 8501CDPDT Power Relay operates at 120 VAC. It is suitable for electric heater, pumping, conveyor, and material handling applications. This relay features a durable open frame, capable of controlling small single-phase motors and other light loads.

• DPDT contact configuration with two normally open and two normally closed contacts.
• Rated for single-phase 1.5 HP motors at 120, 230, or 600 VAC.
• Heavy-duty contacts with a 30 A resistive rating at 300 VAC.

Product Highlights

This power relay is UL listed and CSA certified. It has a non-replaceable coil rated at 120 VAC, making it a reliable choice for various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: 8501CDPDT
• Type: Power relay
• Amperage Rating: 30 A
• Contact Configuration: 2NO/2NC
• Dimensions: 3.12 inches tall, 2.50 inches wide, 2.31 inches deep
• Operating Temperature: -22 to 122 degrees F
• Country of Origin: Mexico
