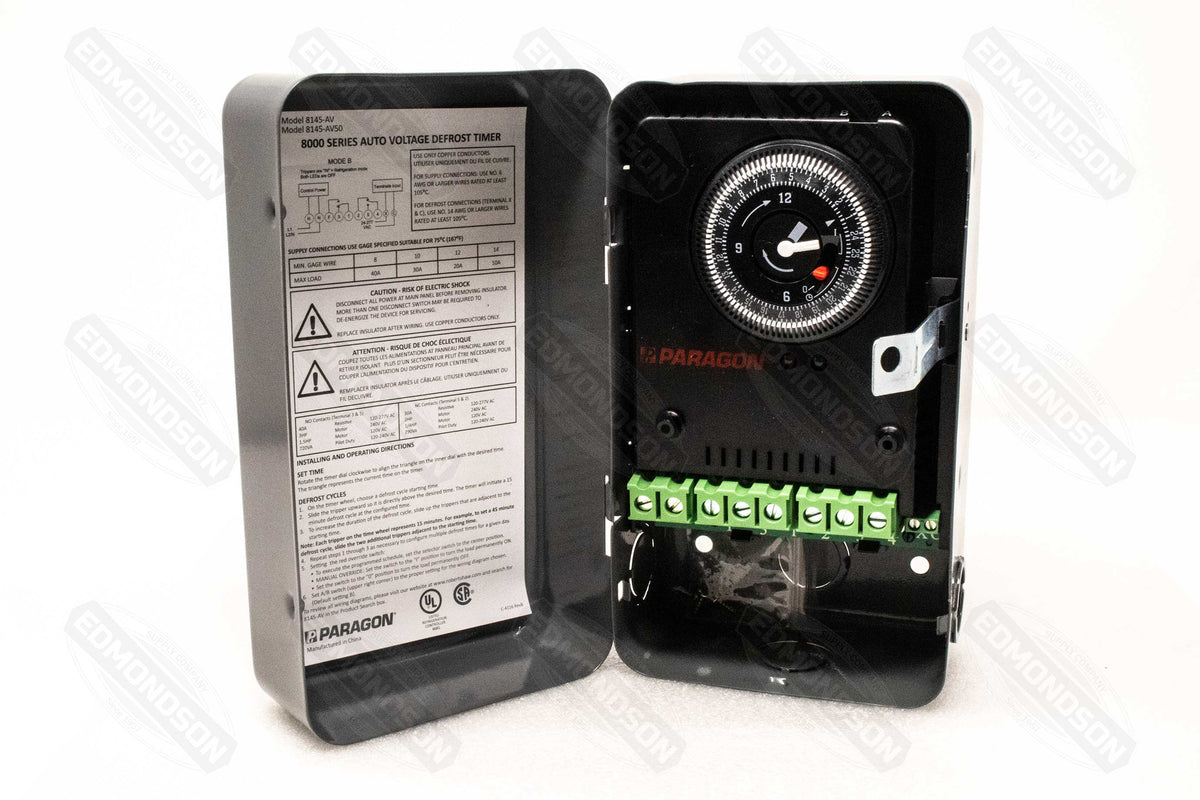

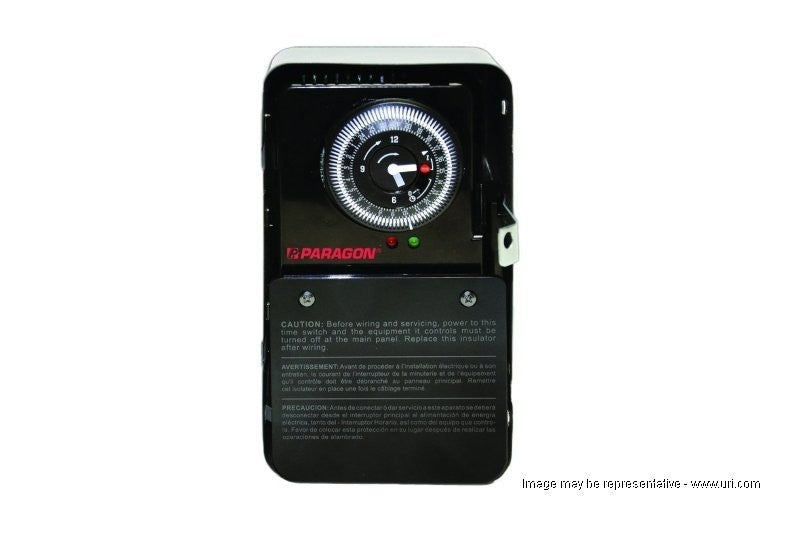

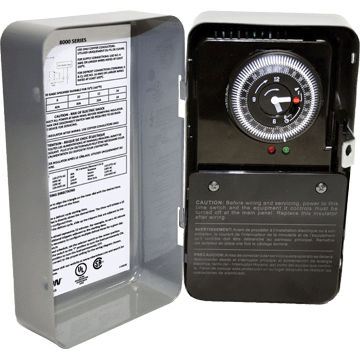

Schneider Electric 8145-AV Paragon 8000 Series Auto Voltage Defrost Timer

Product Description

The Schneider Electric 8145-AV is an auto voltage defrost timer for commercial freezers and refrigerators. This timer is designed for various defrost systems, such as electric defrost heaters, hot gas, and compressor off cycles. The device operates on a voltage range of one hundred twenty to two hundred seventy-seven volts AC. This feature helps eliminate the need for separate short cycle timers and single-phase voltage monitors.

• Automatically adjusts for 120-277V AC
• Features LED indicators for defrost and refrigeration cycles
• Heavy-duty steel enclosure with knockouts

Product Highlights

This defrost timer is built to reduce installation time and minimize inventory needs. Its heavy-duty enclosure protects internal components in demanding environments.

Product Information

Standard Information

• Voltage: 120-240V, 277V AC
• Country of Origin: Mexico (assembled)

Technical Specifications

• Contact Rating: 40 amp resistive/pole
• Switch: 2-NC/1-NO
• Compressor Contacts: 3HP
• Heater/Fan Contacts: 2HP
• Defrost Time: Programmable in 15-minute intervals
• Frequency: 60 Hz
