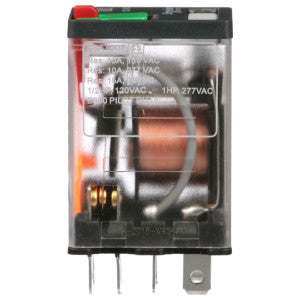

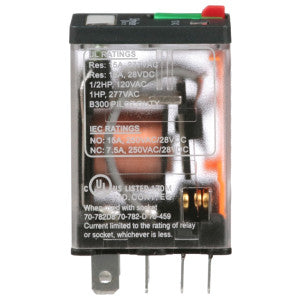

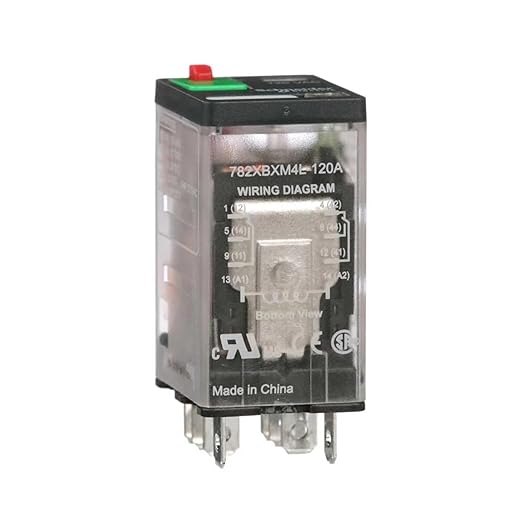

Schneider Electric 782XBXM4L-120A Legacy Relay 120VAC

Product Description

The Schneider Electric 782XBXM4L-120A is an electromechanical relay designed for operation at 120VAC. It features a DPDT configuration with a resistance of 4.43KOhm and is rated for a maximum current of 15A. This relay is suitable for various automation applications including control panels.

• Plug-in general purpose relay
• Square base mounting for easy installation
• LED indication with a clear cover for visibility

Product Highlights

This relay allows simultaneous control of separate circuits, making it ideal for automation systems.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 782XBXM4L120A

Technical Specifications

• Contact Type: DPDT
• Current Rating: 15 Amps
• Mounting Type: Socket Mount
• Coil Voltage: 120 VAC
• Number of Pins: 8-Pin
• Contact Rating: 15 A @ 300VAC, 15A @ 28VDC
• Dimensions: Length 3.500 inches, Width 2.900 inches, Height 1.100 inches
• Manufacturer Series: 782XBX
• Category: Relays
• Type: Power Relays, Over 2 Amps
