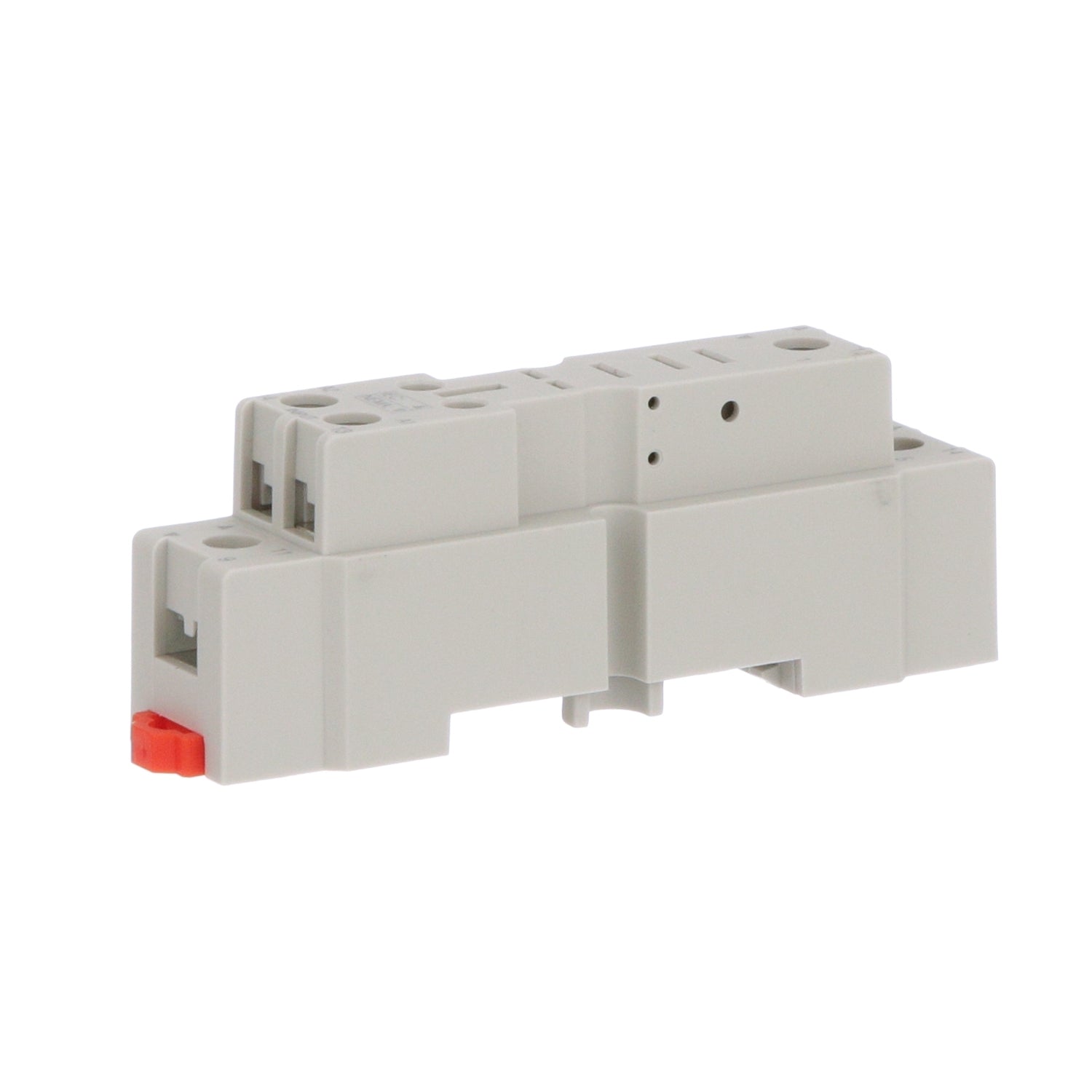

Schneider Electric 70-781D5R-1A Relay Socket 16 A 300 VAC (5-Pin)

Product Description

Schneider Electric 70-781D5R-1A is a finger-safe relay socket with a square base and five pins, designed for plug-in relay connections. It features a SPST contact form and is rated 16 A at 300 VAC. The socket mounts to DIN rail and uses screw-clamp electrical connections. Physical dimensions are approximately 1.18 in high, 0.82 in wide, and 3.33 in deep, and it carries CE, CSA, RoHS and UL recognitions.

• Finger-safe square socket with 5 pins and socket code L
• Contact rating 16 A @ 300 VAC; contact form SPST
• DIN-rail mount with screw-clamp electrical connections; dimensions 1.18" x 0.82" x 3.33"

Product Highlights

5-pin finger-safe relay socket for DIN-rail mounting, 16 A 300 VAC rating, screw-clamp terminals, CE/CSA/RoHS/UL recognized.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: 70-781D5R-1A
• Country of Origin: China
