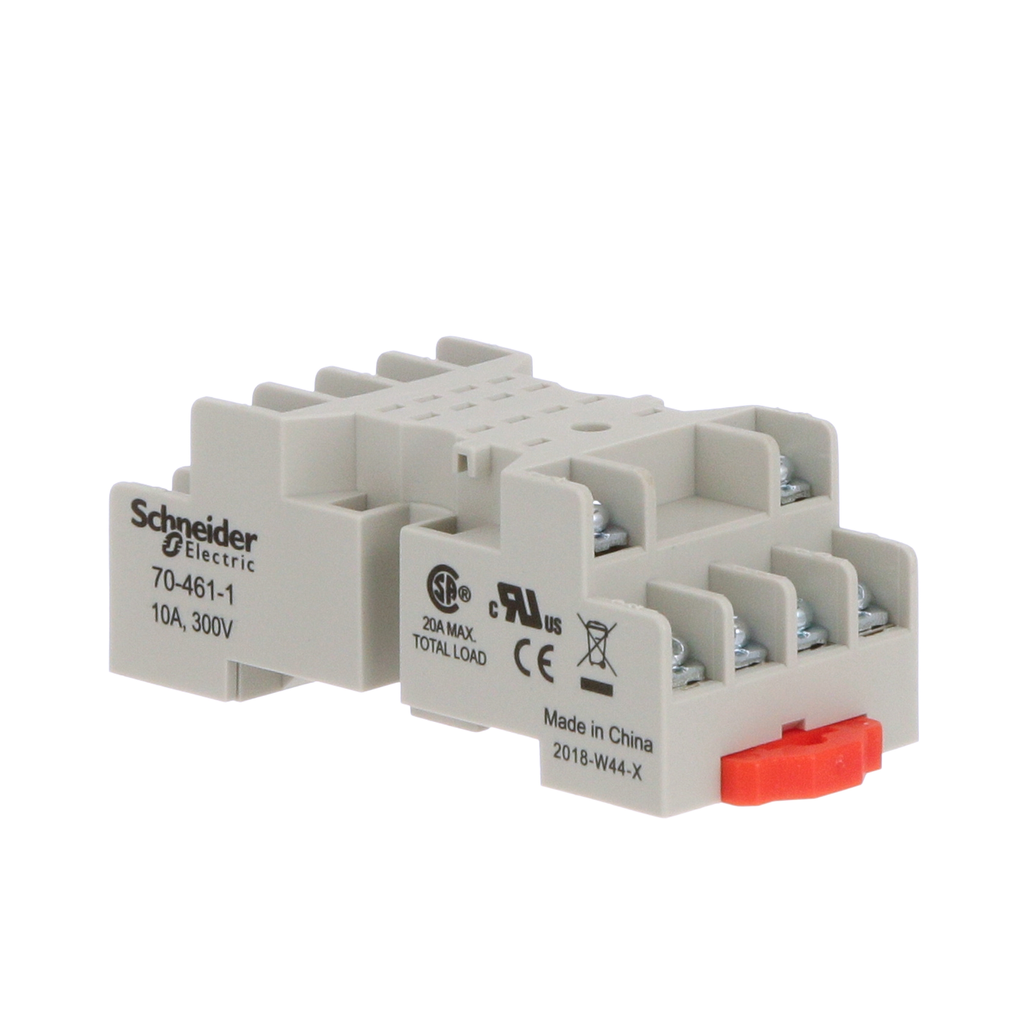

Schneider Electric 70-461-1 Socket, SE Relays, 10A

Product Description

The Schneider Electric 70-461-1 is a socket designed for SE relays with a current rating of ten Amps. This socket is suitable for use with the 782H and 792 series relays. It features four poles with double throw (4PDT) configuration contacts that are rated for three hundred Volts. The design includes screw clamping connect terminals with fourteen pins, providing flexibility for different configurations, including protection modules, holddown clips, and identification tags.

• Compatible with DIN rail or panel mounting.
• Finger-safe design meeting IP20 standards.
• Suitable for a wide range of general-purpose relay applications.

Product Highlights

This socket is an accessory for general-purpose relays, supporting reliable connections and configurations.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Current: 10 Amp
• Voltage: 300 Volt
• Depth: 64 mm
• Width: 30.7 mm
• Weight: 1.76 oz
• Product UPC: 78590115511
• Certifications: CE, CSA, UL
• Storage Temperature: -40-105 degrees C
• Operating Temperature: -40 to 158 degrees F (-40 to 70 degrees C)
• Number of Terminations: 14
