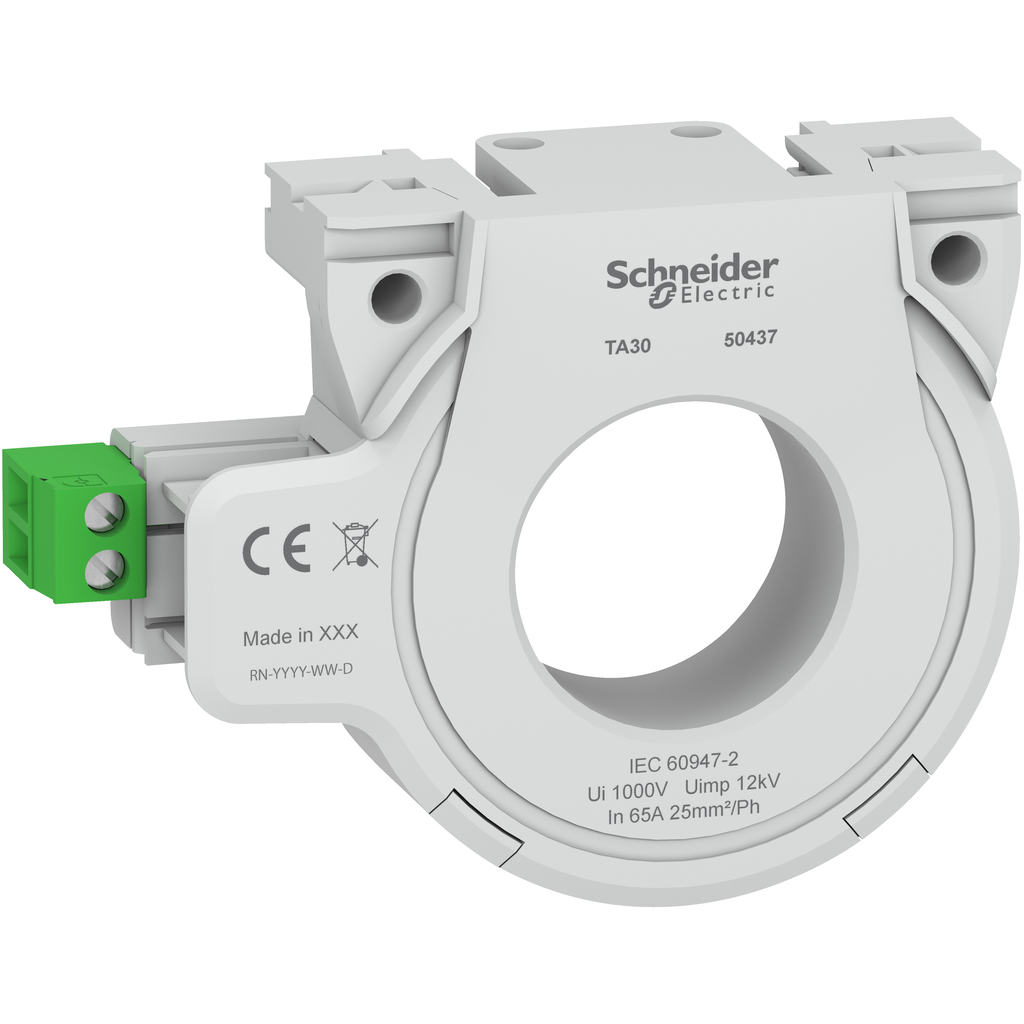

Schneider Electric 50437 SQUARED Closed Toroid A Type 65A (Inner Diameter 30mm)

Product Description

The Schneider Electric 50437 is a closed toroid A type designed for Vigilohm Insulation Fault locators and VigiPacT type A residual current protection and monitoring relays. This product enables precise monitoring of the injected component from the Vigilohm Insulation Monitor with a current rating capacity of up to sixty-five amperes for VigiPacT monitoring and protection relays. It features a transformer ratio of one to one thousand. The inner diameter measures thirty millimeters, and it has a weight of zero point one two kilograms.

This toroid must have cables properly centered, with an aggregate diameter not exceeding fifteen millimeters. The maximum cross-section per phase—R, S, T, N—is limited to twenty-five square millimeters for copper conductors.

• Designed for Vigilohm Insulation Fault locators.
• Inner diameter of thirty millimeters.
• Current rating up to sixty-five amperes.

Product Highlights

Schneider Electric's closed toroid is compatible with monitoring and protection applications in electrical engineering, suitable for equipment monitoring and control.

Product Information

Standard Information

• Brand: Schneider Electric
• Warranty: Eighteen months

Technical Specifications

• Catalog Number: 50437
• Voltage: 1 k Volt
• Amperage: 65 Amp
• Diameter: 30 mm
• Depth: 29 mm
• Width: 60 mm
• Height: 82 mm
• Net Weight: 0.12 kg
