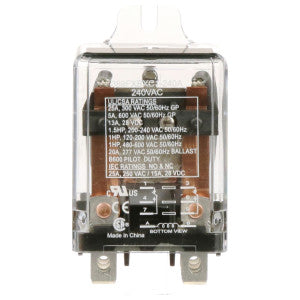

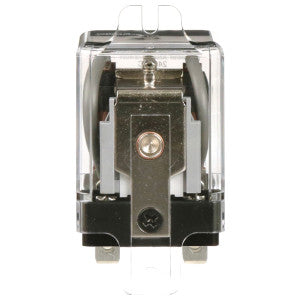

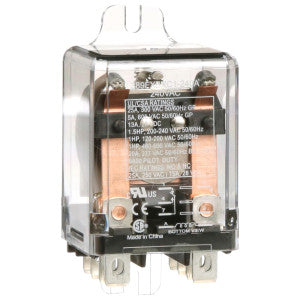

Schneider Electric 389FXBXC1-240A Power Relay 25A DPDT 240 Vac

Product Description

The Schneider Electric 389FXBXC1-240A is a reliable power relay designed for high-power applications. With a contact rating of twenty amperes at three hundred volts AC, this relay can handle motor loads up to 1.5 horsepower, specifically within the two hundred to two hundred forty volts AC range.

• High contact rating of twenty amperes at three hundred volts AC
• Holds motor loads up to 1.5 horsepower at two hundred to two hundred forty volts AC
• Nominal coil voltage of two hundred forty volts AC

Product Highlights

This relay features a two-pole double-throw (DPDT) contact configuration. It is ideal for lighting control and other high-power switching tasks.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: 389FXBXC1-240A

Technical Specifications

• Contact Configuration: DPDT
• Contact Rating: 20 A at 300 VAC
• Motor Loads: Up to 1.5 hp at 200 to 240 VAC
• Nominal Coil Voltage: 240 VAC
• Maximum Switching Voltage: 600 V
• Coil Resistance: 7200 ohms
• Mounting Type: Side Flange
• RoHS Compliance: Environmentally friendly design compliant with RoHS
