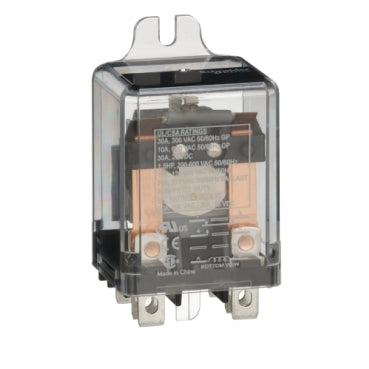

SCHNEIDER ELECTRIC 389FXAXC1-24D Power Relay SPDT 25A 24 VDC

Product Description

The SCHNEIDER ELECTRIC 389FXAXC1-24D is a power relay designed for high-performance applications. This relay offers a contact rating of twenty-five amperes at three hundred volts alternating current, making it suitable for various industrial uses. It holds motor loads of up to one point five horsepower at two hundred to two hundred forty volts alternating current with a nominal coil voltage of twenty-four volts direct current. The maximum switching voltage reaches six hundred volts, which allows it to handle high-power loads effectively.

• High current carrying capacity of twenty-five amps.
• Side flange mounting for flexible installation.
• Complies with RoHS standards for environmental safety.

Product Highlights

This power relay features a silver alloy single-pole double-throw contact configuration, which is versatile for various application needs. It supports ballast load contact rating, making it ideal for lighting control systems. The relay is also designed with an environmentally friendly approach that adheres to industry standards.

Product Information

Standard Information

• Type: Power relay
• Function: SPDT

Technical Specifications

• Input Current: 25 A
• Short Circuit Current: 3 kA
• Coil Resistance: 400 Ohm
• Drop-out Voltage Threshold: >= 0.1 Uc
• Electrical Durability: 100000 cycles
• Mechanical Durability: 5000000 cycles
• Operating Temperature: -22 to 131 °F
• IP Rating: IP40
