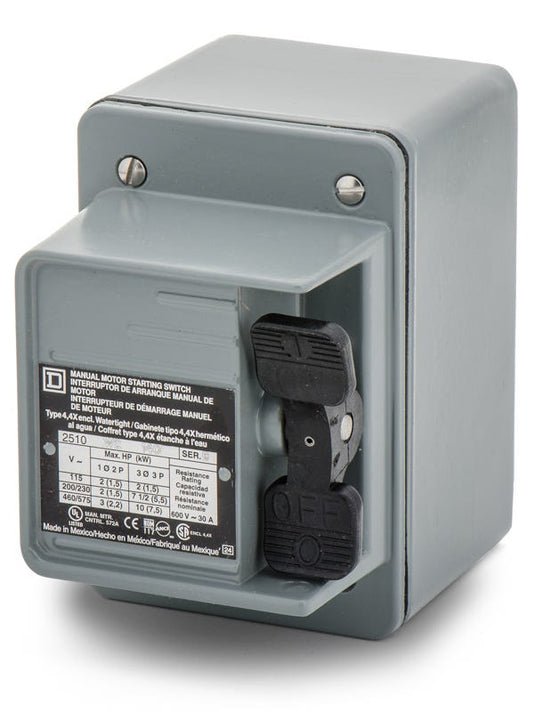

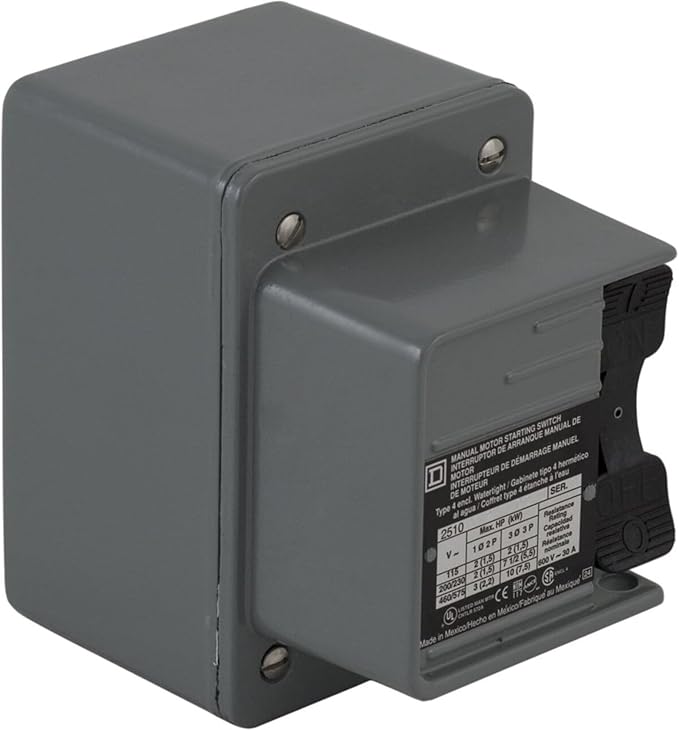

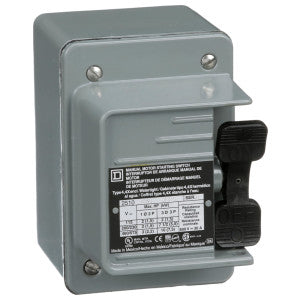

Schneider Electric 2510KW2 Manual Switch 600-Vac Kplus Options

Product Description

The Schneider Electric 2510KW2 manual switch is intended for various applications. It operates at 600 Volts and provides a manual On/Off control for small motors. This switch is ideal where overload protection is not needed or is provided by other means. It effectively works in industrial, commercial, and residential settings.

• Provides manual On/Off control of small motors
• Suitable for industrial, commercial, and residential applications
• Rated for 10 HP at 460VAC and 600VAC single phase

Product Highlights

The Schneider Electric 2510KW2 is a three pole manual switch that features screw clamp terminals.

Product Information

Standard Information

• Brand: Schneider Electric
• Connector Type: Screw

Technical Specifications

• Operating Voltage: 600 Volts
• Terminal: Screw
• Mounting Type: Panel Mount
• Actuator Type: Hinge Lever
• Number of Positions: 1
• HP Rating: 10 HP
• Voltage: 600
• Poles: 3
• Phase: 3
• Nema Rating: Nema 4
• UPC: 785901077053
