Schneider Electric 2510FO1 Square D Starter 16A

Product Description

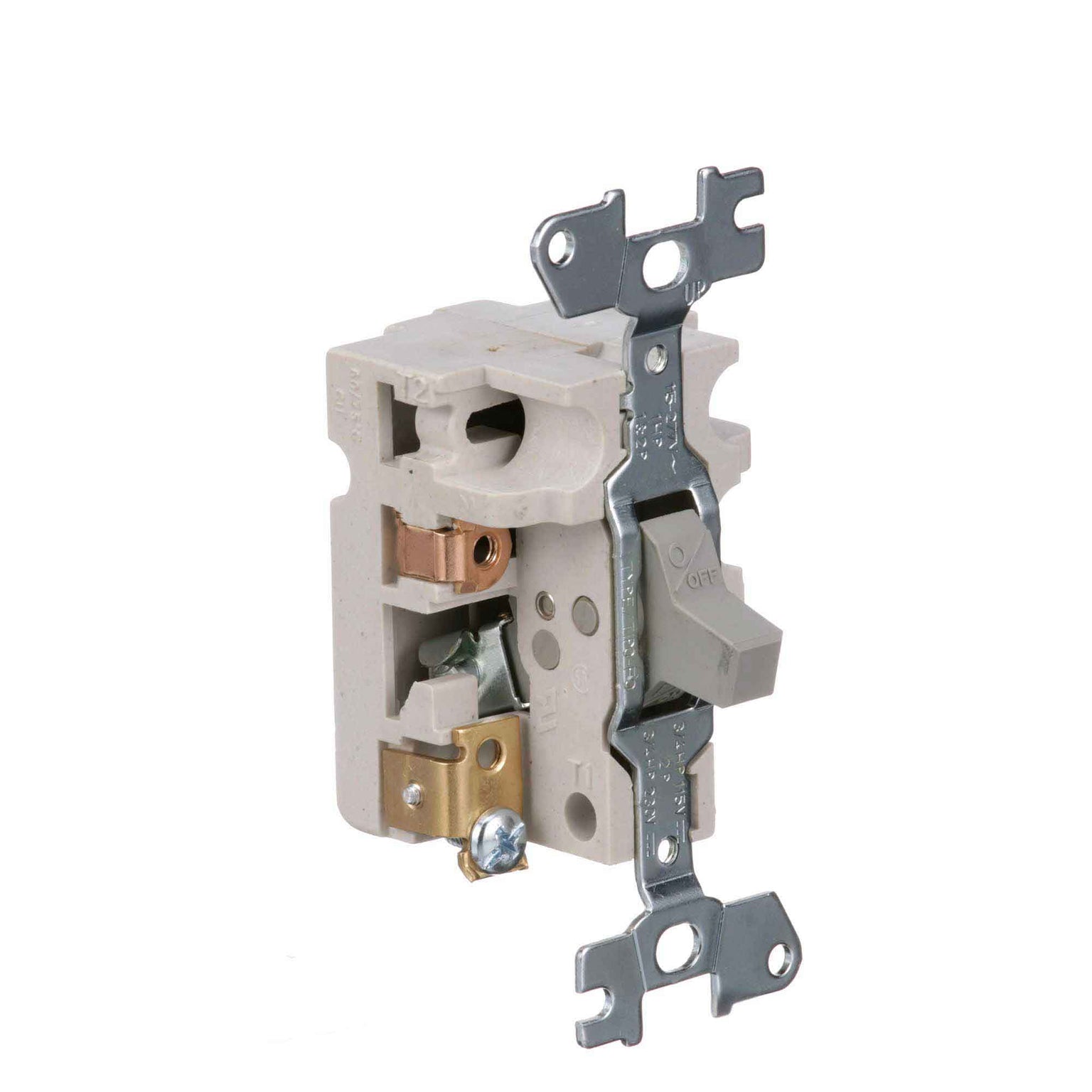

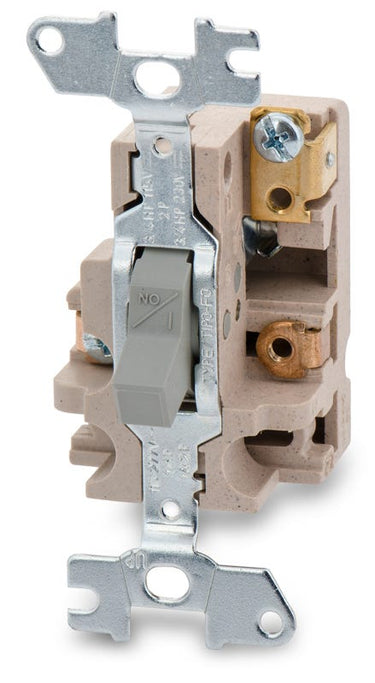

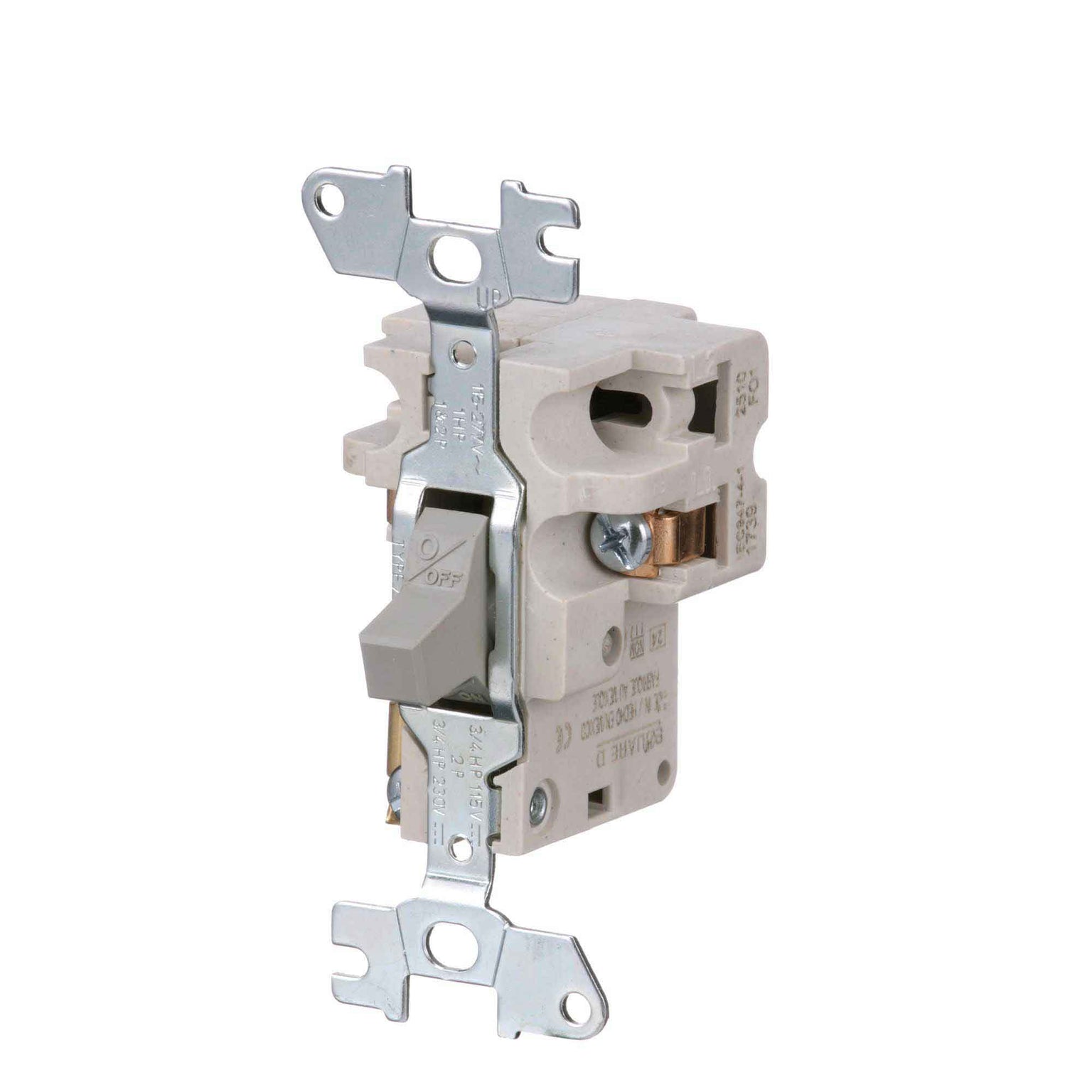

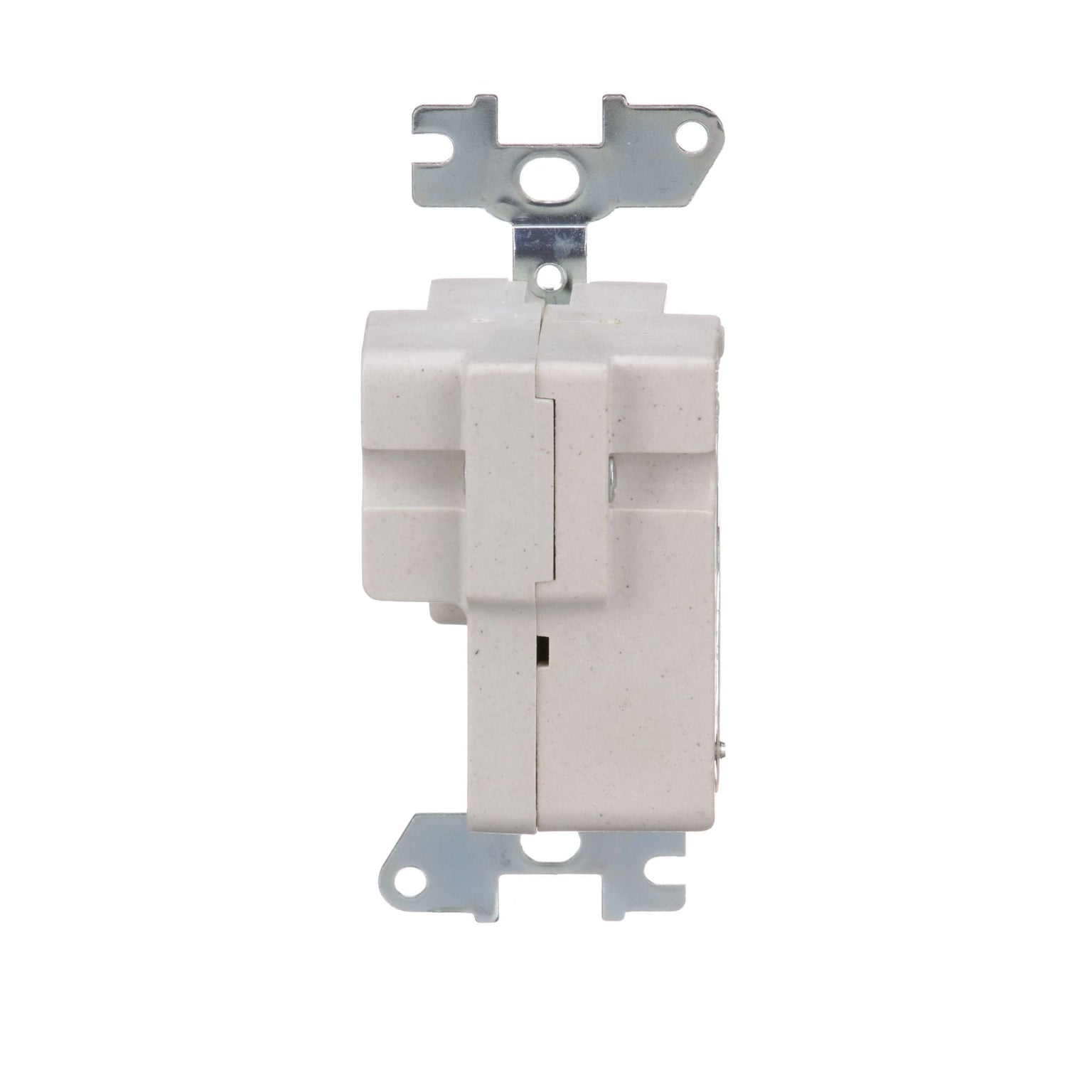

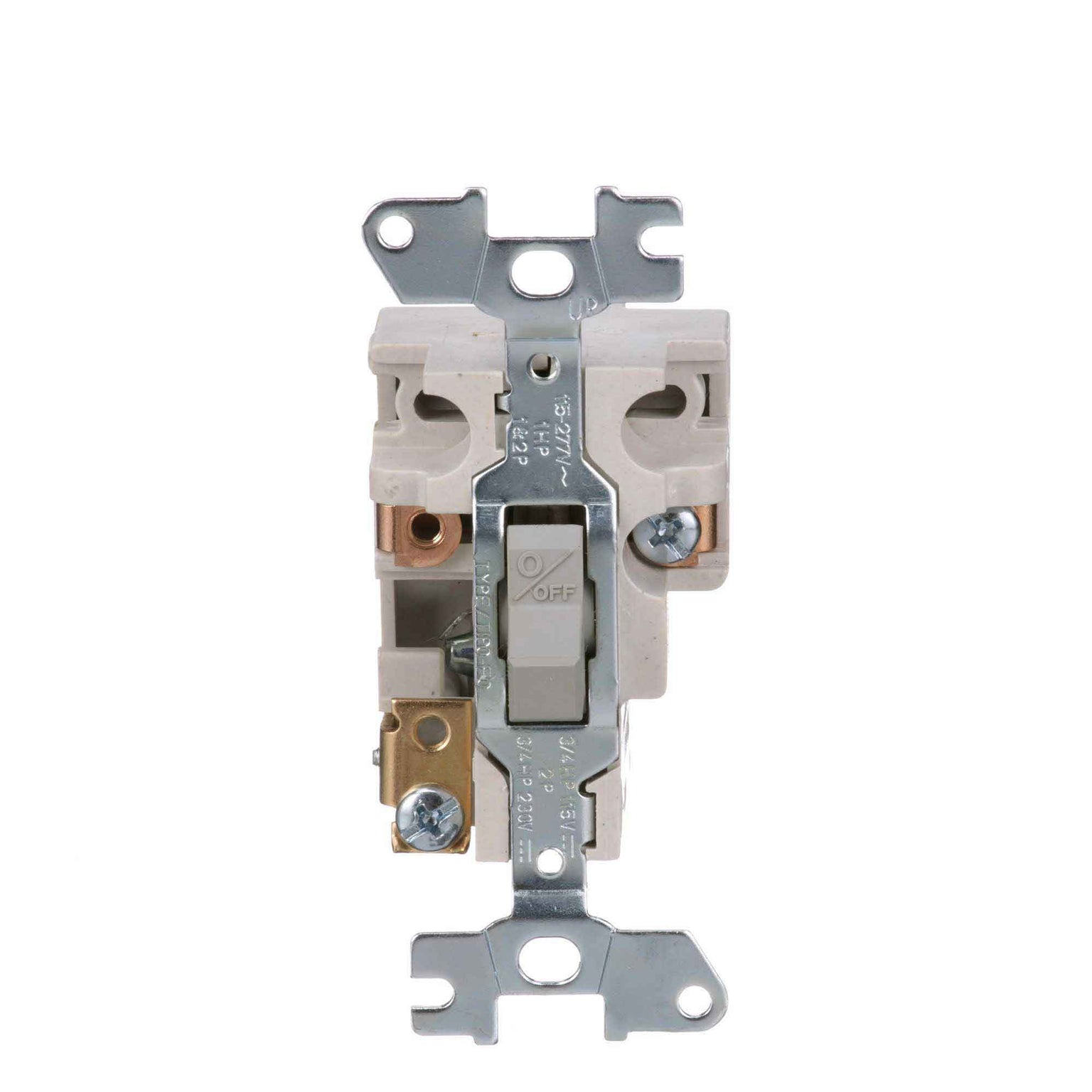

The Schneider Electric 2510FO1 Square D starter is a manual motor starter designed for controlling motors up to 1 horsepower. This 1 pole starter has a rated current of 16 Amps and operates at a voltage of 277VAC. It features screw clamp terminals for easy wire connections and is compatible with Class 2510 motor control systems.

• Manual motor starter rated for 16 Amperes at 277 VAC
• Designed for Class 2510 motor control systems
• Toggle switch actuator for easy operation

Product Highlights

This starter is suitable for single-phase motors. The robust design ensures reliable performance in various applications while providing thermal protection.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 2510FO1
• Rated Current: 16A
• Voltage: 277VAC
• Poles: 1
• Phase: 1
• Protection: Thermal
• Terminal Connection: Screw Clamp
• Dimensions: 4.13 inches tall, 1.69 inches wide, 2.22 inches deep
• Wire Gauge: AWG 14 to AWG 12, Copper
• Actuator Type: Toggle Switch
• Action: Non-Reversing
• UL Approval: Yes
• CSA Approval: Yes
• NEMA Approval: Yes
