Schneider Electric 2510FG2 Motor Starter Manual Double Pole Single Phase 2 hp

Product Description

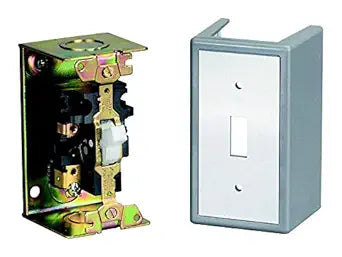

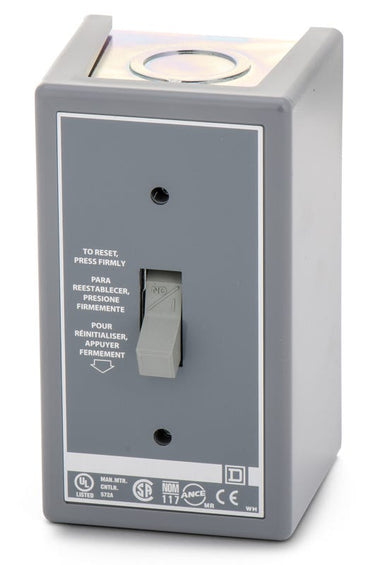

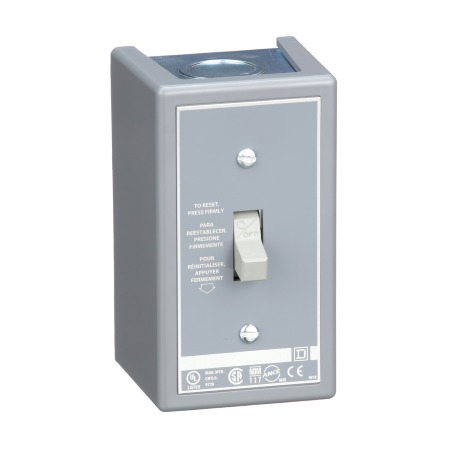

The Schneider Electric 2510FG2 motor starter is designed for motor control systems. This manual motor starter features a double pole setup, is single-phase, and operates at a power of 2 horsepower. It has a current rating of 16 Amps and a voltage rating of 277 Vac. The toggle operator allows for manual control, making it ideal for various applications.

• Manual On-Off control
• Overload protection for small motors
• Compatible with Class 2510 motor control systems

Product Highlights

The Schneider Electric 2510FG2 provides reliable performance in controlling motors while ensuring safety through its overload protection features.

Product Information

Standard Information

• Brand: Schneider Electric
• Approval: UL, CSA

Technical Specifications

• Material: Metal
• Amperage: 16 Amps
• Voltage: 277 Volts
• Series: 2510F
• Poles: 2
• Phase: 1
• Mounting Type: Surface
• Protection: Thermal
• Terminal Connection: Screw Clamp
• Nema Rating: 1
• Length: 2.75 inches
• Width: 2.44 inches
• Height: 4.25 inches
• Wire Gauge: AWG 14 to AWG 12, Copper
• Actuator Type: Toggle Switch
• Action: Non-Reversing
• Rated Current: 16A
• Enclosure Type: NEMA 1
• Motor Power: 2 hp
• Overload Relay: Thermal Melting Alloy
• Reset Type: Manual
• Type: Type F Non-Reversing Single Unit
• Voltage Rating: 277 VAC, 230 VDC
