Schneider Electric 2510FG1P Square D Starter 16A

Product Description

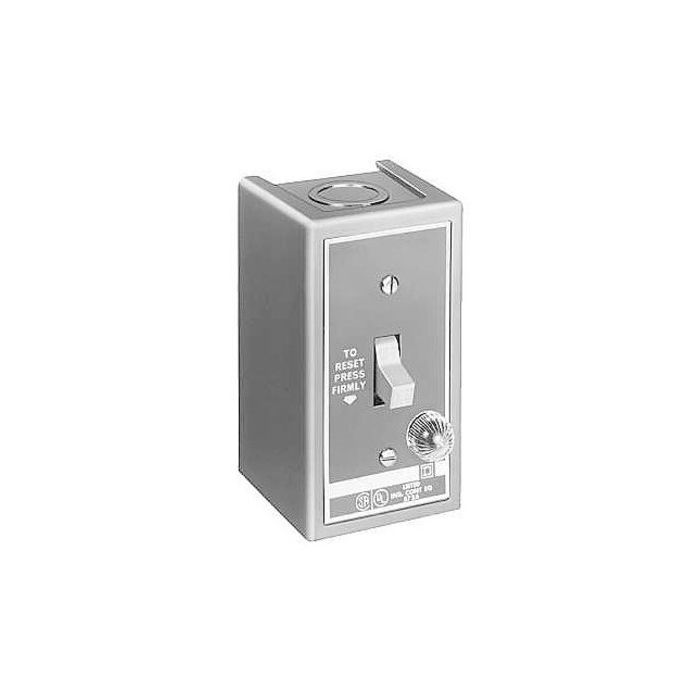

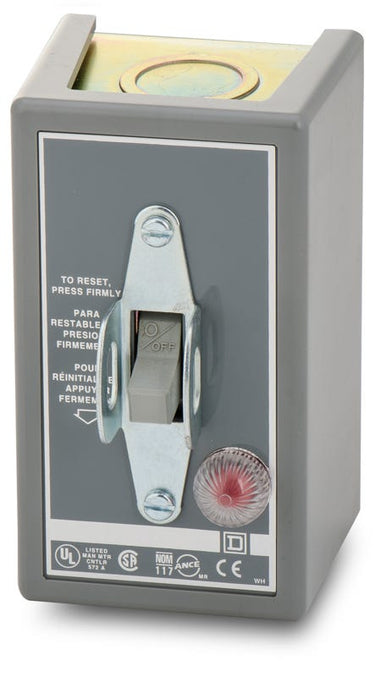

The Schneider Electric Square D 2510FG1P is a one pole starter with a current rating of sixteen amps and a voltage rating of 277VAC. It is designed for Class 2510 motor control systems and includes a screw clamp terminal connection. This manual starter allows for On-Off control and provides overload protection suitable for small motors.

• One pole starter with sixteen amps rated current
• Toggle operator for easy manual control
• Suitable for fractional single phase motors up to one horsepower

Product Highlights

The Schneider Electric 2510FG1P is ideal for controlling small motors with reliable overload protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 2510FG1P
• Amperage: 16A
• Voltage: 277VAC
• Poles: 1
• Phase: 1
• Mounting Type: Surface
• Protection: Thermal
• Terminal Connection: Screw Clamp
• NEMA Rating: 1
• Length: 2.75 inches
• Width: 2.44 inches
• Height: 4.25 inches
• Wire Gauge: AWG 14 to AWG 12, Copper
• For Use With: Class 2510 Motor Control Systems
• Actuator Type: Toggle Switch
• Action: Non-Reversing
• Warranty: 18 months
• Overload Relay Type: Melting Alloy
