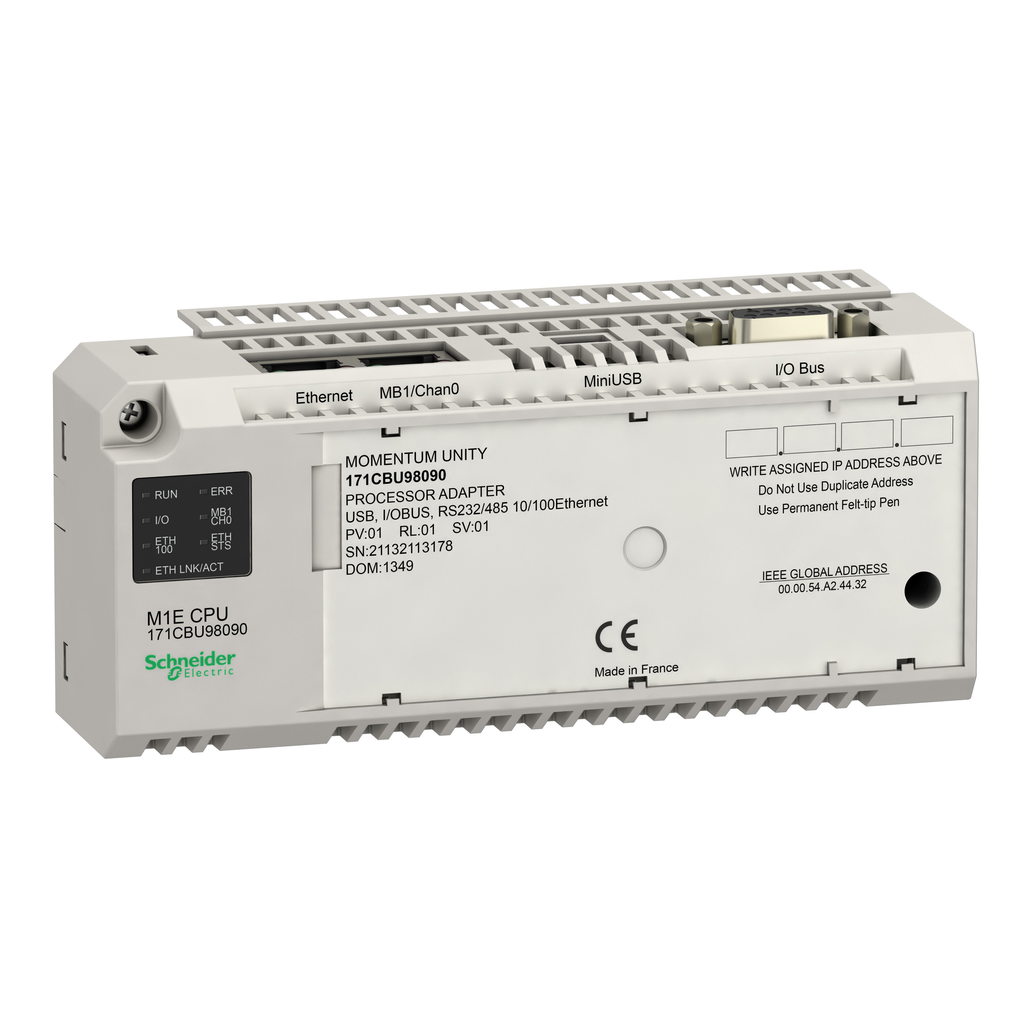

Schneider Electric 171CBU98090 Unity M1E processor - RS232/485 - Ethernet - USB - I/O bus

Product Description

The Schneider Electric 171CBU98090 Unity M1E processor is designed for distributed control architecture. It features Ethernet and USB connection ports. This processor supports Modbus messaging with a capacity for 200 I/O messages per second. It also provides web services such as CPU status and Ethernet statistics when used with Unity Pro software. It meets IP20 specifications and is ideal for applications in energy infrastructure and simple machine control.

• Application: Infrastructures, energy, material handling, simple machine control.
• Compliance: CE, FM, C-Tick certification; fulfills UL 508 and CSA C22.2 No 142 standards.
• Compatibility: Works with Modicon STB I/O and supports 35mm DIN rail mounting.

Product Highlights

Compact, efficient, and modular design for versatile control applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: 171CBU98090
• Type: Processor
• Depth: 53.47 mm
• Width: 144 mm
• Height: 60.6 mm
• Weight: 0.36 lb
• Current: 5 V
• Material: Lexan
• Standard: CSA C22.2 No 142, EN/IEC 61131-2, UL 508
• Enclosure: IP20
• Country of Origin: France
• Operating Temperature: 0-60 degrees C
• Storage Temperature: -40-85 degrees C
• Power Supply: 500 MA 5 V DC
• Certifications: C-tick, FM
