SCHNEIDER ELECTRIC 170AMM09000 CONTROL BOARDS
SCHNEIDER ELECTRIC 170AMM09000 CONTROL BOARDS

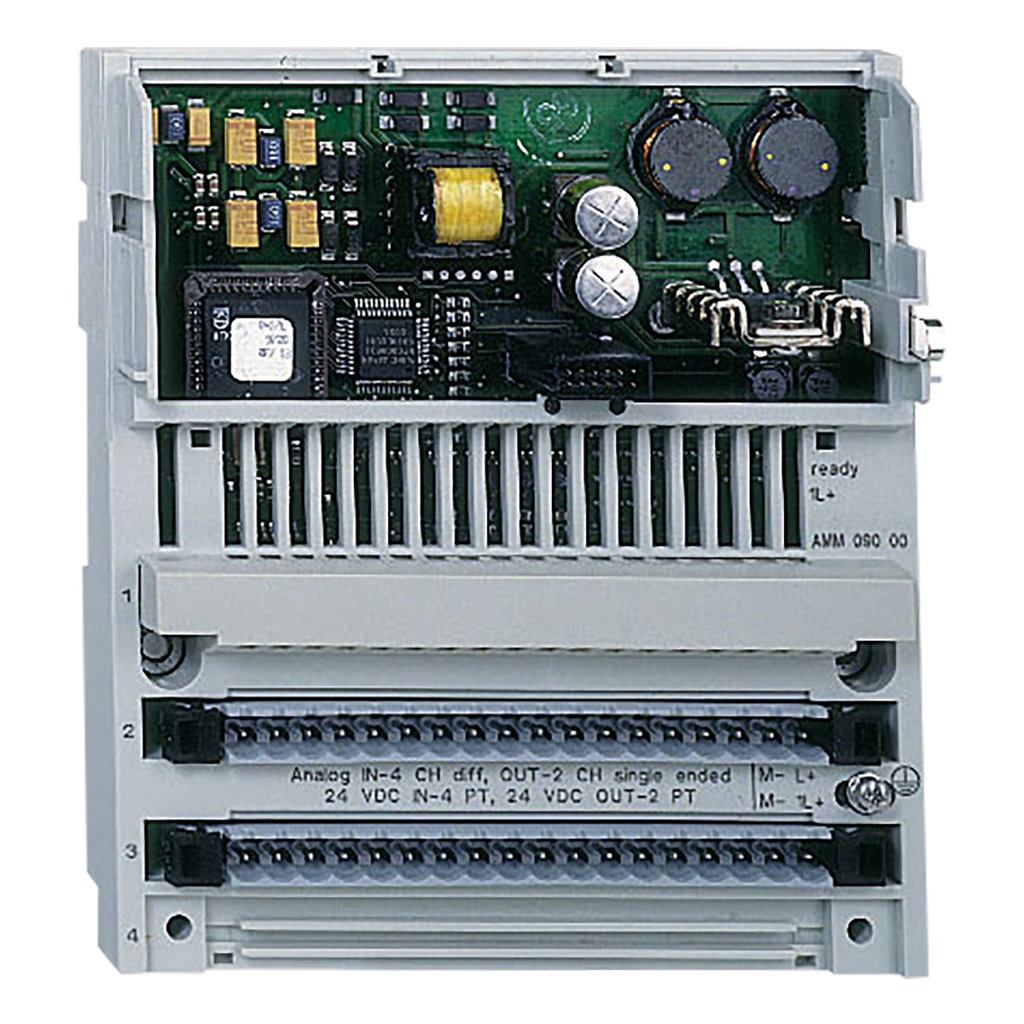

Schneider Electric 170AMM09000 Square D 24 VDC 200 mA 8-Input 4-Output Discrete and Analog I/O Base

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: 170AMM09000
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Schneider Electric 170AMM09000 is part of the Modicon Momentum range, designed for distributed control systems. This module features eight input/output options, including two discrete outputs, four discrete inputs, four analog inputs, and two analog outputs. It operates at a supply voltage of twenty-four volts DC, with a current of two hundred milliamperes. The device has a maximum power dissipation of six watts and includes two connectors for removable terminal blocks.

  • Operating voltage: 24 VDC
  • Includes multiple input/output options
  • Compact dimensions: 141.5 mm width, 47.5 mm depth, 125 mm height

Product Highlights

This module is ideal for applications in energy management, material handling, and basic machine control, making it a versatile choice for various industries.

Product Information

Standard Information

  • Catalog Number: 170AMM09000
  • Manufacturer: Schneider Electric
Technical Specifications
Brand
Schneider Electric
Weight
0.24 kg
Depth
47.5 mm
Width
141.5 mm
Height
125 mm
Input/Output Types
Analog, Discrete
Power Supply
24 VDC
Response Time
Less than 0.1 ms (discrete output states)
Certifications
CE, FM Class 1 Division 2, CSA, UL
Temperature Rating
0-60 degrees C
Country of Origin
Indonesia
