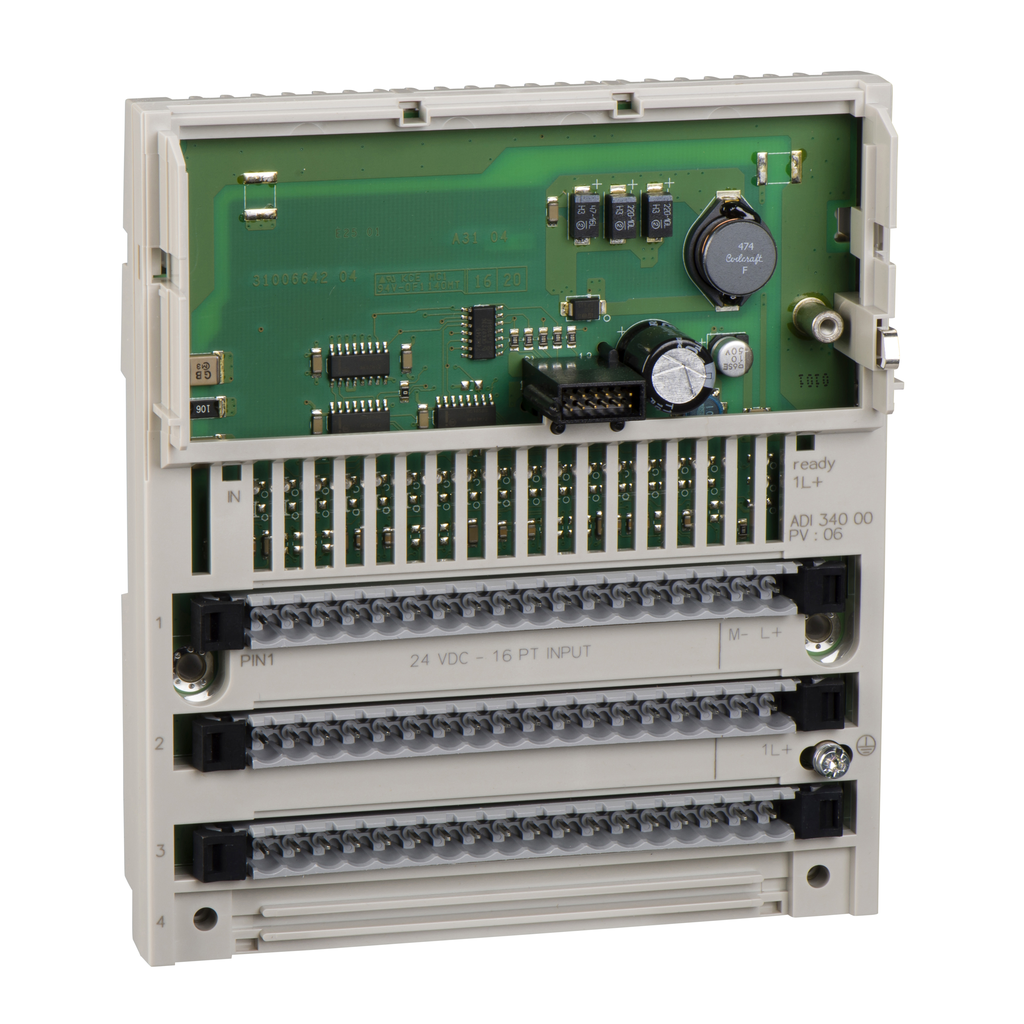

Schneider Electric 170ADI34000 Discrete Input Module 24 VDC 250 mA 16-Channel

Product Description

Schneider Electric introduces the 170ADI34000 discrete input module. This device is designed for Modicon Momentum systems. It features 16 discrete inputs that operate on a twenty-four volt direct current power supply.

• 16 discrete inputs
• Operates at 24 VDC
• Compatible with Modicon Momentum systems

Product Highlights

The Schneider Electric 170ADI34000 input module is ideal for controlling various industrial applications. Its fast response time of 2.2 milliseconds for state changes enhances operational efficiency. This module is designed for straightforward installation, providing reliable performance in various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: 170ADI34000
• Power Supply: 24 VDC
• Current: 250 mA
• Depth: 1.87 inches
• Width: 125 mm
• Height: 141.5 mm
• Weight: 0.42 lb
• Response Time: 2.2 ms from state 0 to state 1; 3.3 ms from state 1 to state 0
• Certifications: CSA, FM Class 1 Division 2, UL
• Country of Origin: France
• Warranty Length: 18 months
• Temperature Rating: 0-60 degrees Celsius
• Storage Temperature: -40-85 degrees Celsius
