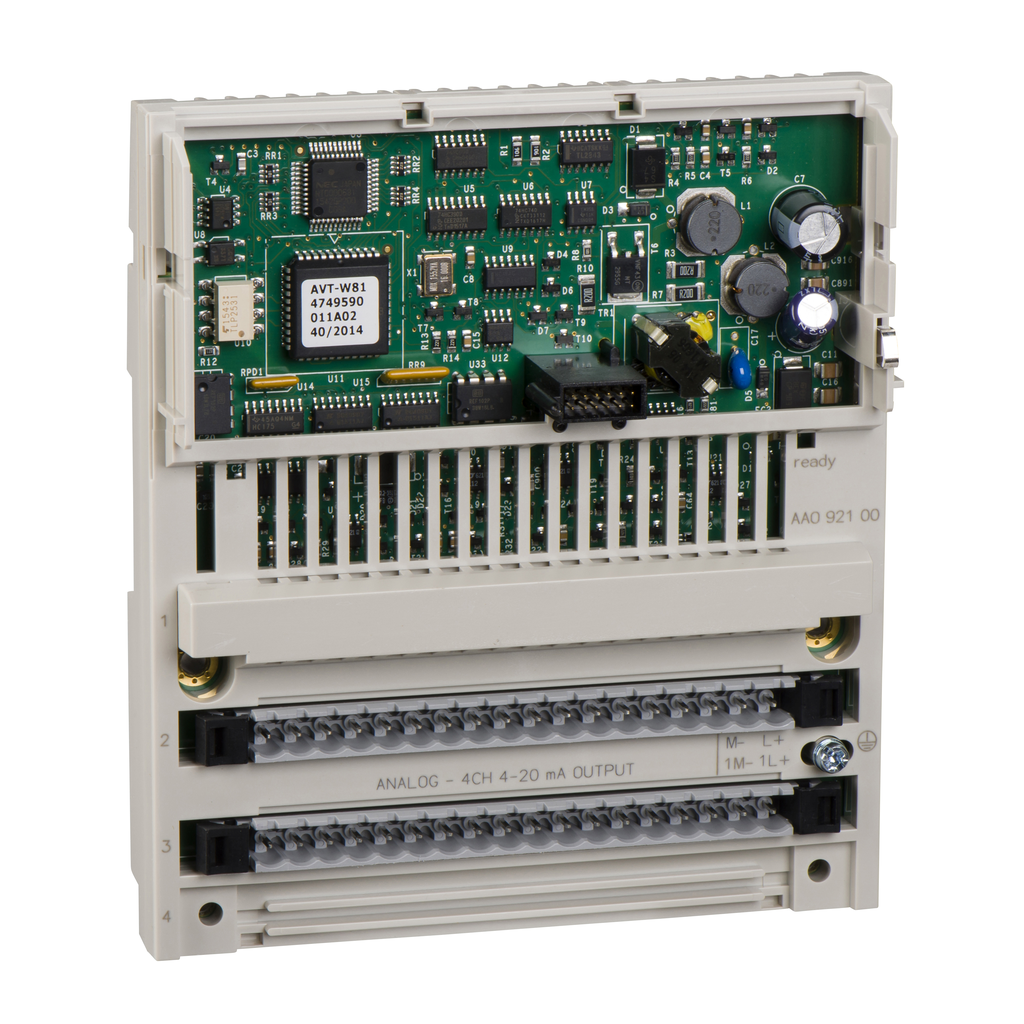

Schneider Electric 170AAO92100 Square D 4 Channel Analog Output Base 125 x 47.5 x 141.5 mm

Product Description

Schneider Electric offers the 170AAO92100, a four-channel analog output base designed for the Modicon Momentum series. This module features 16-bit signed resolution across four outputs, supporting a range of outputs from ten volts and four milliamps to twenty milliamps. The device includes channel-to-ground isolation rated at five hundred volts AC and four status LEDs for monitoring output performance. Measurements for this device are one hundred forty-one point five millimeters in width, forty-seven point five millimeters in depth, and one hundred twenty-five millimeters in height. The weight is zero point two one five kilograms.

This module is suitable for various applications including infrastructure, energy management, material handling, and basic machine control. The product holds certifications from CE, CSA, and UL, ensuring reliability in demanding environments. It is designed for wall mounting and is part of a modular system allowing for flexible configuration. The Momentum series can be easily snap-fitted together to accommodate a wide range of control applications.

• Modular design for easy integration
• 16-bit signed resolution
• Operating voltage of 24 VDC

Product Highlights

This analog output base is ideal for distributed control architectures and can be used in both simple and complex control systems.

Product Information

Standard Information

• Catalog Number: 170AAO92100
• Brand: Schneider Electric

Technical Specifications

• Depth: 47.5 mm
• Width: 141.5 mm
• Height: 125 mm
• Output Channels: 4
• Weight: 0.215 kg
• Power Supply: 24 VDC
• Current Rating: 150 mA
• Certifications: CSA, UL
