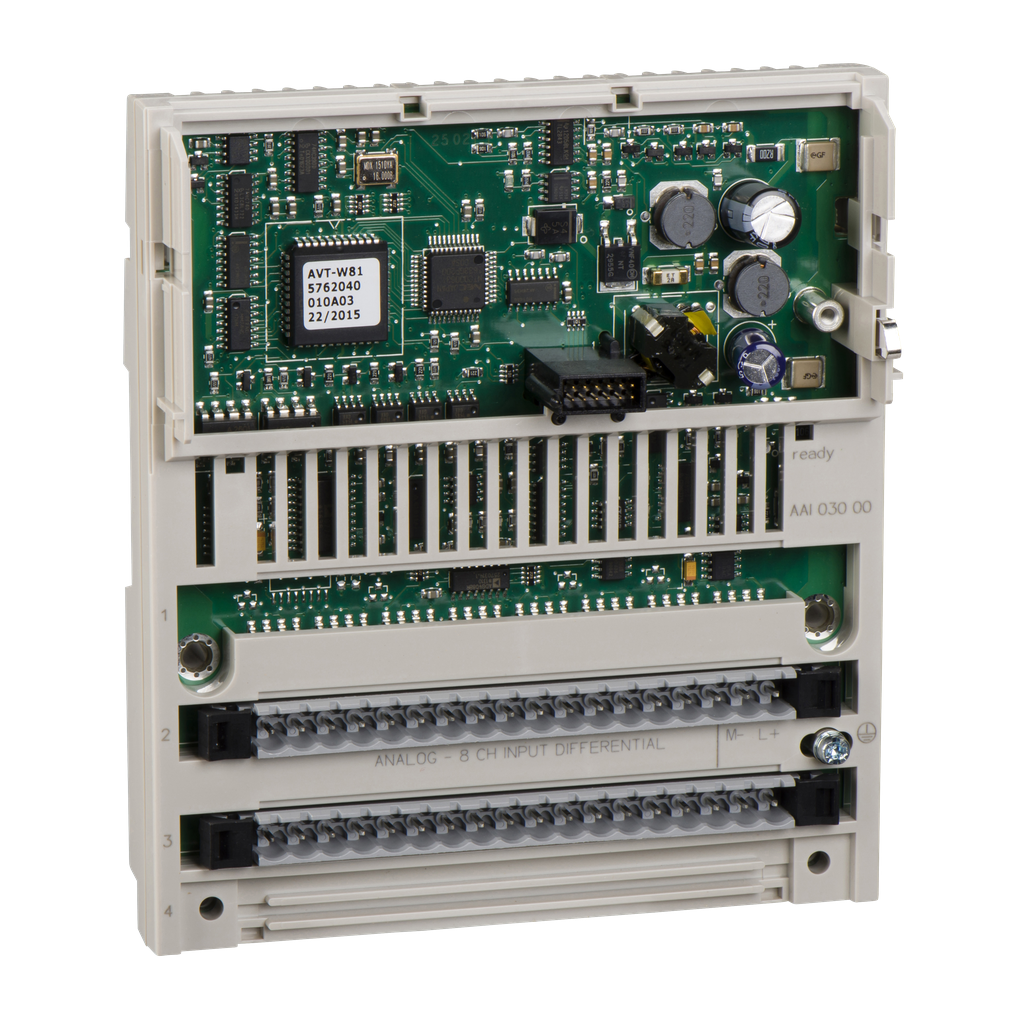

Schneider Electric 170AAI03000 Square D 8-Channel Analog Input Base 24 VDC

Product Description

Schneider Electric 170AAI03000 is a part of the Modicon Momentum range. This analog input base provides 8 inputs with a full 16bit signed resolution. It supports differential analog input ranges from 4mA to 20mA and from 1V to 5V. The module offers isolation between channels, ensuring safety with a 500V AC rating. This base is equipped with two removable terminal blocks for secure electrical connections and features multiple LEDs for status indication.

• 8 analog inputs with 16bit resolution
• Isolated channels with a 500V AC rating
• Includes removable terminal blocks for ease of installation

Product Highlights

This input base is ideal for use in infrastructures, energy management, and machine control applications. Its modular design allows for flexibility and expandability in various control systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D / Schneider

Technical Specifications

• Catalog Number: 170AAI03000
• Power Supply: 24 VDC
• Dimensions: 141.5 mm x 47.5 mm x 125 mm
• Weight: 0.215 kg
• Temperature Rating: 0 to 60 degrees C
• Storage Temperature: -40 to 85 degrees C
• Certifications: CE, CSA, FM Class 1 Division 2, UL
• Country of Origin: Indonesia
