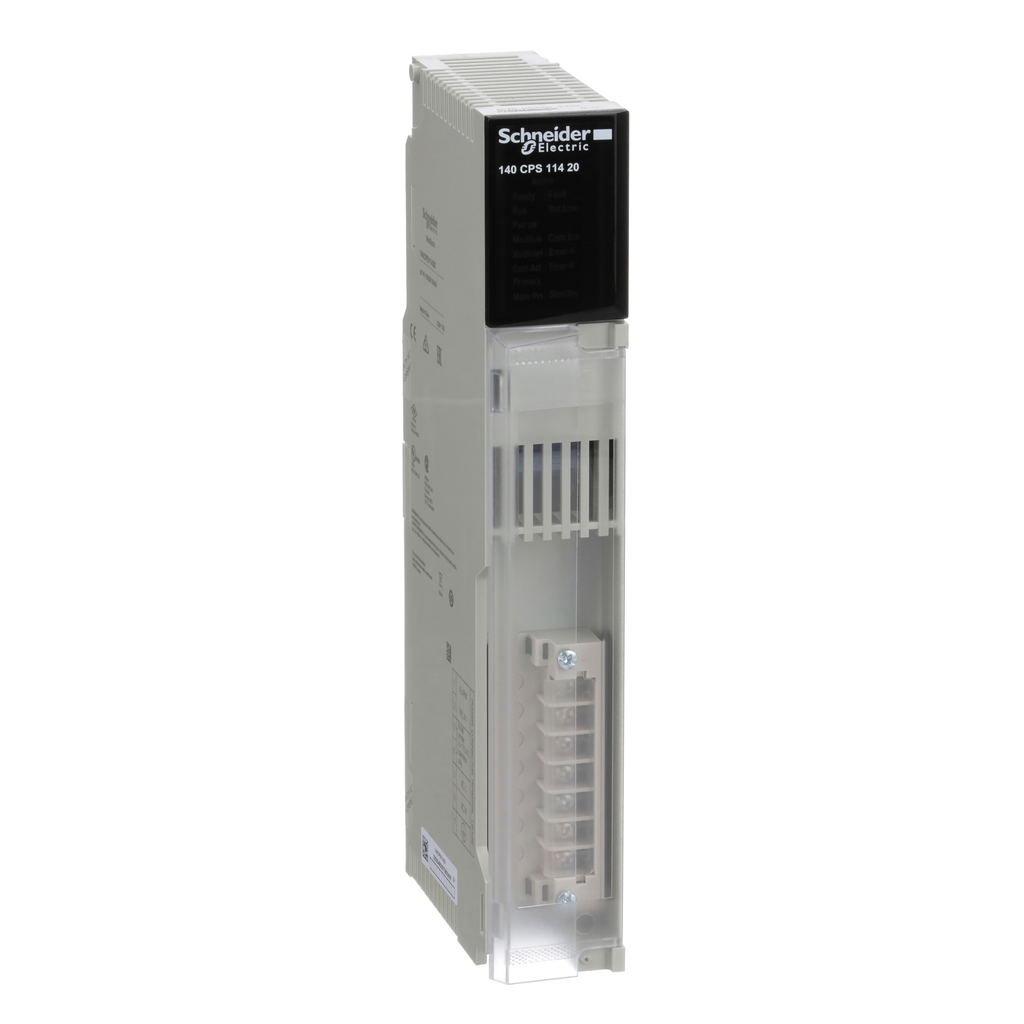

Schneider Electric 140CPS11420 Square D 115/230 VAC Input 5.1 VDC Output 11 Amp Power Supply Module

Product Description

The Schneider Electric 140CPS11420 is a power supply module designed for use in programmable logic controllers. This module accepts 115/230 VAC input and provides a 5.1 VDC output at a current of 11 amps. It is suitable for various automation applications and ensures stable performance in demanding control environments.

• Input Voltage: 115/230 VAC
• Output Voltage: 5.1 VDC
• Current Rating: 11 Amps

Product Highlights

The module supports multiple control architectures, allowing integration with various devices and systems. It is ideal for both industrial and commercial applications due to its versatile input options and robust design.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D / Schneider

Technical Specifications

• Catalog Number: 140CPS11420
• Input Current: 1300 mA at 115 V; 750 mA at 230 V
• Output Voltage: 5.1 V
• Weight: 1.43 lb
• Country of Origin: China
• Certifications: CSA C22.2 No 142, UL 508
• Operating Temperature: 0-60 degrees C
• Storage Temperature: -40-85 degrees C
