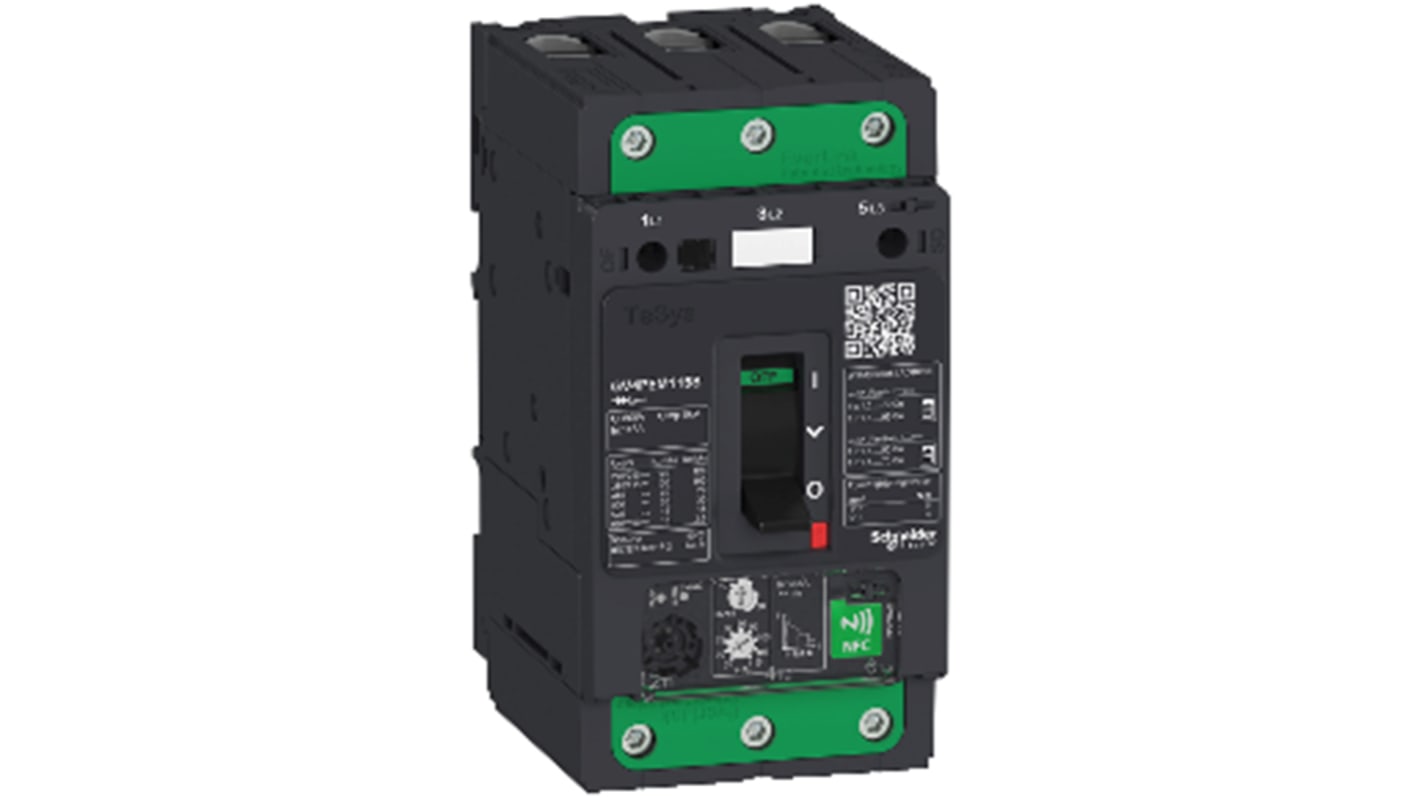

Schneider Electric 10-391 TeSys GV4PEM Thermal Magnetic Circuit Breaker

Product Description

The Schneider Electric TeSys GV4PEM is a 3-pole thermal-magnetic circuit breaker designed for efficient motor protection. This device has a voltage rating of 690V AC and a current rating of 80A, suitable for various electrical applications.

• 3-pole configuration
• Thermal-magnetic tripping mechanism
• Adjustable thermal protection with selectable tripping class

Product Highlights

The TeSys GV4PEM provides advanced motor protection and features adjustable thermal protection through dials. The setting current range is adjustable from 40A to 80A, allowing flexibility in different use cases when motor circuits are involved.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 10-391

Technical Specifications

• Series: GV4PEM
• Range: TeSys
• Current Rating: 80A
• Voltage Rating: 690V AC
• Number of Poles: 3
• Tripping Mechanism: Thermal-Magnetic
• Circuit Breaker Type: Thermal Magnetic Circuit Breaker
• Breaking Capacity at Maximum Voltage Rating: 10 kA @ 500V AC
• Terminal Contact Type: Screw
• Overall Dimensions: 81 x 116 x 155mm
