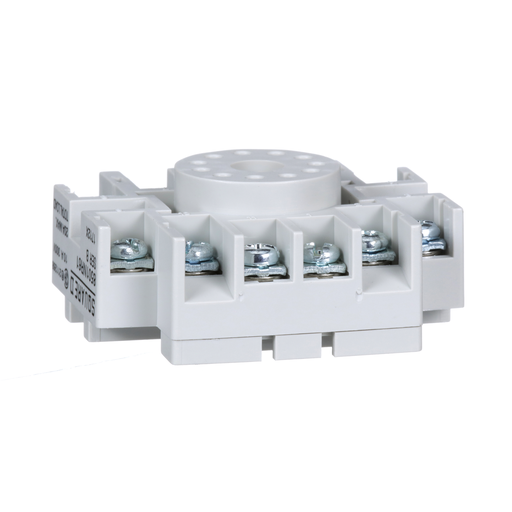

Schneider 8501NR61 1-Pin Sci Term Socket

Product Description

The SCHNEIDER 8501NR61 1-Pin Sci Term Socket is designed for wiring 8501K plug-in relays. This socket can be mounted on a 35mm DIN rail or directly to a panel. It is designed for 11 tubular pins and features socket terminals with pressure wire clamps for a secure connection. The terminals are not stacked for easier wiring.

• Can be mounted on 35mm DIN rail or directly to a panel.
• Designed for 11 tubular pins.
• Socket terminals have pressure wire clamps for a good secure connection.

Product Highlights

The 8501NR61 relay socket ensures secure connections and easy wiring for 8501K plug-in relays, with versatile mounting options.

Product Information

Standard Information

• Brand: SCHNEIDER
• Manufacturer Part Number: 8501NR61
• Country of Origin: China

Technical Specifications

• Connector Type: Plug-In
• Contact Material: Silver
• Contact Type: Normally Open
• Current Rating: 5 Amps
• Mounting Type: DIN Rail,Panel
• Brand: Square D
• Operation Mode: Electric
• Maximum Switching Current: 5 Amps
• Number of Pins: 11
• Type: Relay Socket
• Depth: 24.6 mm
• Height: 54.8 mm
• Width: 59 mm
• Certifications: CE,CSA,UL Recognized
