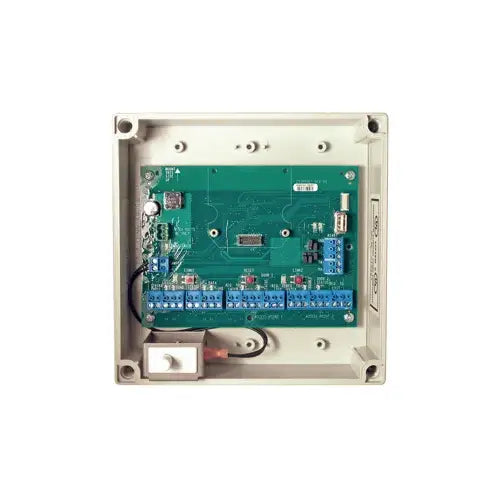

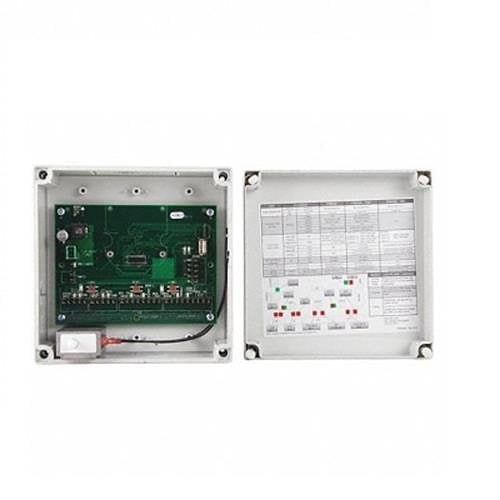

Schlage PIB300-2D Panel Interface Board 2-Door

Product Description

The Schlage Electronic Security PIB300-2D Panel Interface Board connects RS485 based access point devices to systems that require Wiegand or clock and data protocols. This interface board enables two-way communication with locks using an RS-485 connection, accommodating up to two Schlage AD-300 locks or legacy RS-485 locks. It features a trouble signal output to alert users about tampering incidents.

• Connects RS485 devices to Wiegand/Clock & Data systems
• Supports up to 2 Schlage AD-300 or legacy locks
• Provides two-way communication via RS-485 connection

Product Highlights

This device is suitable for commercial applications, ensuring secure and reliable connections.

Product Information

Standard Information

• Brand: Schlage
• Manufacturer: Allegion plc

Technical Specifications

• ADI Part Number: 6S-PIB3002D
• Product Model: PIB300-2D
• Product Type: Panel Interface Board
• Unit Dimension: 7 inches x 7 inches
• Voltage: 12/24 VDC
• Application: Connection for 2 Schlage RS-485 based Access Point Devices
• Certification: UL 294, ULC S319
• Commercial Residential: Commercial
