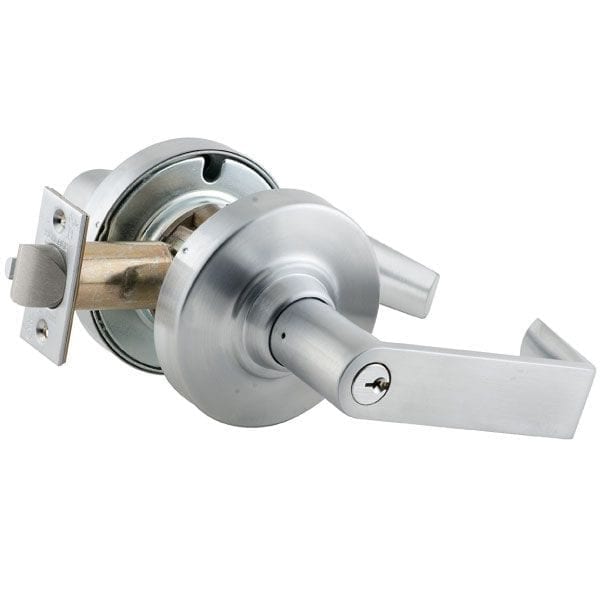

Schlage ND97-JD-RHO-626 Corridor Lock Rhodes Lever Schlage FSIC Prep Less Core

Product Description

The Schlage ND97-JD-RHO-626 is a Grade 1 corridor lock designed for commercial use. It features a Rhodes lever and Schlage FSIC prep less core. This non-handed lock is built for heavy-duty applications and comes with a satin chrome finish.

• Grade 1 for high security
• UL/cUL listed for fire safety
• Suitable for various door thicknesses

Product Highlights

This corridor lock meets the ANSI/BHMA Grade 1 standards and is fire rated for up to 3 hours.

Product Information

Standard Information

• Brand: Schlage
• Function: Corridor Lock

Technical Specifications

• Grade: Grade 1
• UL Listing: UL/cUL Listed
• Finish Description: Satin Chrome
• Country Of Origin: Mexico
• Fire Rated: 3 Hours (A)
• Hand: Non-handed
• Cylinder Type: Schlage FSIC Prep Less Core
• Lock Function: 97-Corridor Lock
• BAA Qualified: Yes
• Limited Warranty: 10 Years
• Finish: 626/US26D
• Series: ND Series Lever Locks
• Lever Design: RHO (Rhodes)
• Clutch Lever: Yes
• Usage: Heavy Duty
• ANSI/BHMA Standard: Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
• Backset: 2-3/4 inches
• Latch: 1/2 inch throw, deadlocking – 1-1/8 inches x 2-1/4 inches face
• Strike: 4-7/8 inches x 1-1/4 inches ASA/ANSI strike with curved lip
• Door Thickness: 1-3/4 inches
