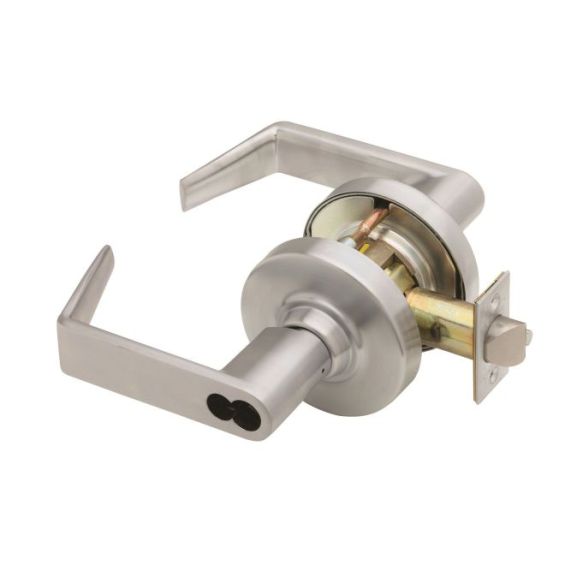

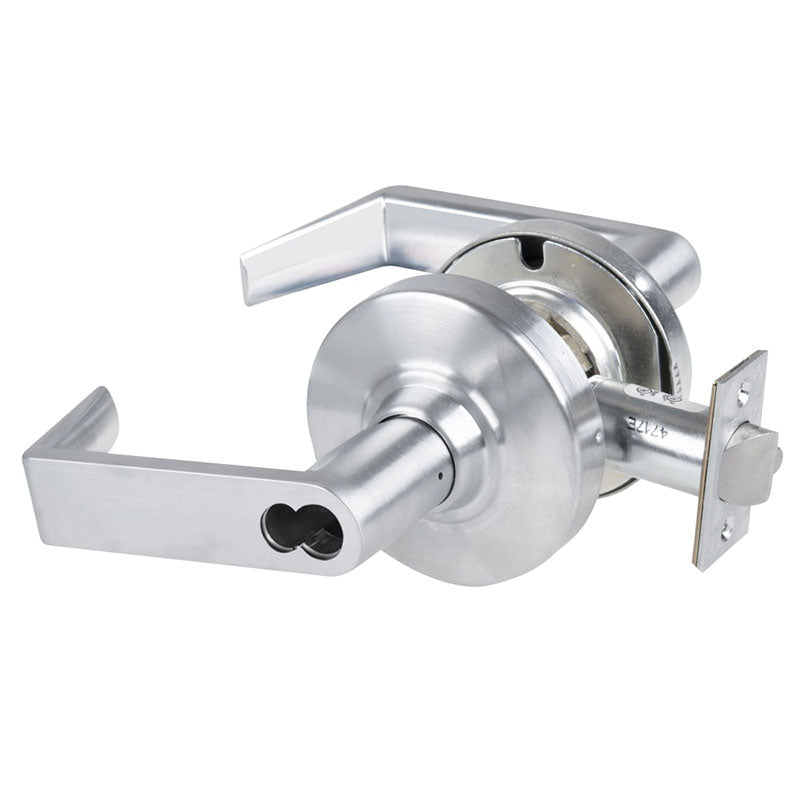

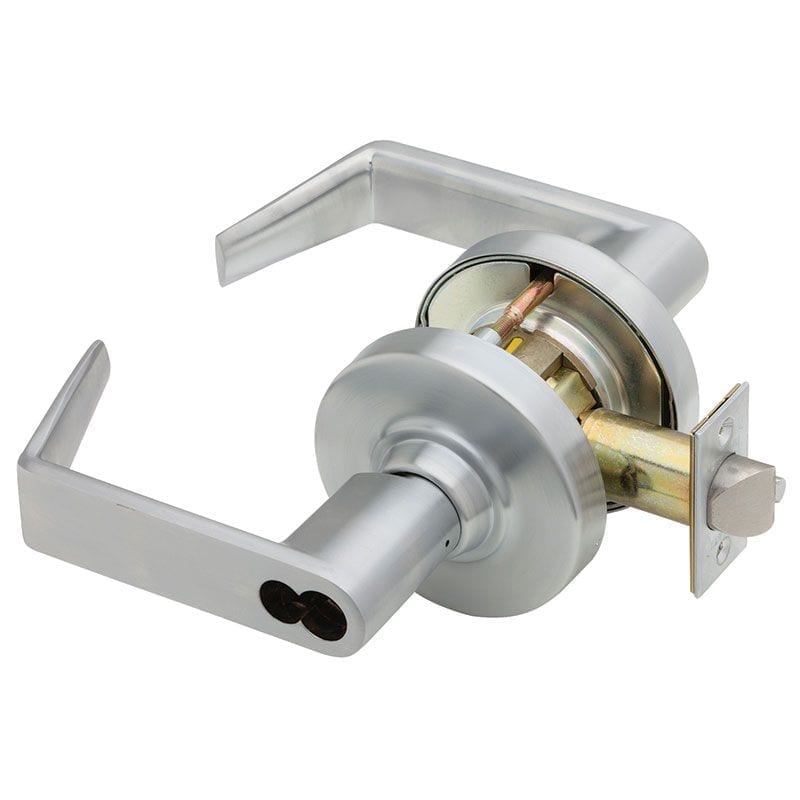

Schlage ND96-JD-RHO-626 ND Series Vandlgard Storeroom Lever Lock Less Full Size Interchangeable Core

Product Description

The Schlage ND96-JD-RHO-626 is an ANSI/BHMA Grade 1 certified cylindrical lever lock designed for storeroom applications. This lock features a Vandlgard Rhodes lever suitable for heavy-duty commercial use. It meets and exceeds top industry standards, ensuring reliability and security.

• ANSI/BHMA Grade 1 certified for top performance.
• Designed for abusive environments with a clutching lever.
• Prepped for interchangeable core use (FSIC core sold separately).

Product Highlights

This storeroom lever lock is a strong choice for secure access in commercial spaces.

Product Information

Standard Information

• Brand: Schlage
• Finishes: 626 Satin Chrome

Technical Specifications

• Lever Design: RHO (Rhodes)
• Lock Function: Storeroom
• Clutch Lever: Yes
• Cylinder: Less Interchangeable Core
• Usage: Heavy Duty
• ANSI Standard: Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
• ADA Compliance: Meets ADA requirements
• Fire Rating: UL/cUL listed up to 3 Hours
• Handing: Non-Handed
• Backset: 2-3/4 inches
• Latch: 1/2 inch throw, deadlocking
• Strike: 4-7/8 inches x 1-1/4 inches ASA/ANSI strike
• Door Thickness: 1-5/8 inches to 2-1/8 inches
• Warranty: 10 Years
• Installation: Commercial
• Origin: Mexico
• Unit of Measure: Each
• UL Listing Type: UL/cUL Listed
• Function: 96 Storeroom Lock
• Lever/Knob Design Family: Straight Return Lever
• Rose/Escutcheon Design: 3-7/16 inch Rose Diameter
• Cylinder Type: Schlage FSIC Prep Less Core
• Num Pins: 6
• Lock Face Size: 1-1/8 inches x 2-1/4 inches
• Bore Hole Diameter: 2-1/8 inches
• Product Type: Cylindrical Lock
