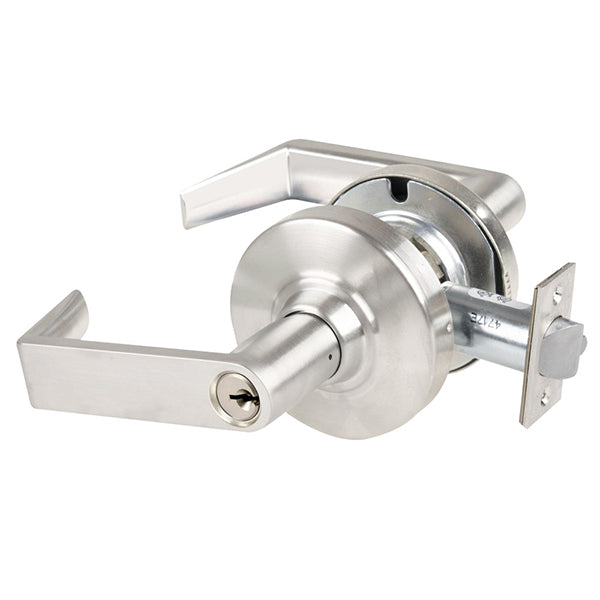

Schlage ND82-PD-RHO-626 C Institution Lock Rhodes Lever

Product Description

The Schlage Lock ND82-PD-RHO-626 C is a cylindrical institution lock designed for commercial use. This lock features a Rhodes lever and is compatible with the Schlage C keyway, ensuring keyed differently options for security. It includes two keys and accommodates standard backset requirements with a size of two and three-quarters inches and a strike size of four and seven-eighths inches.

• Cylindrical institution lock with Rhodes lever
• Includes two keys and a two and three-quarters inch backset
• Exceeds ANSI/BHMA A156.2 requirements for Grade 1 locks

Product Highlights

This lock provides reliable security for institutional environments, meeting high standards for performance and durability.

Product Information

Standard Information

• Manufacturer: Schlage
• Grade: Grade 1
• Installation: Commercial
• Origin: Mexico
• Unit of Measure: Each

Technical Specifications

• ANSI Number: ANSI A156.2 Series 4000, Grade 1
• Function: 82 Institution Lock
• Lever/Knob Design: RHO Rhodes Lever
• Rose Diameter: 3-7/16 inches
• Cylinder Type: Cylinder
• Number of Pins: 6
• Number of Keys: 2
• Handing: Non-handed
• Door Thickness: 1-5/8 inches to 2-1/8 inches
• Std. Latch Backset Dimension: 2-3/4 inches
• Lock Face Size: 1-1/8 inches x 2-1/4 inches
• Strikes: ANSI Strike
• Screws: Wood/Machine Screws
