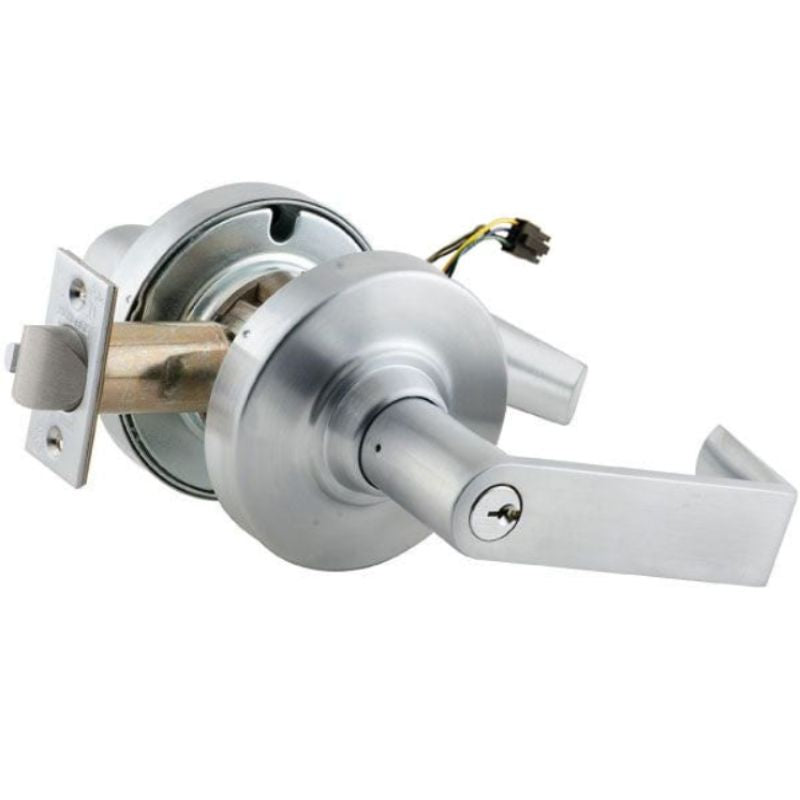

Schlage ND80EU-PD-RHO-626 C Electrified Cylindrical Lock 12-24V DC

Product Description

The Schlage ND80EU-PD-RHO-626 C Electrified Cylindrical Lock is designed for storeroom applications and operates using 12-24V DC power. It features a Fail Secure mechanism, ensuring that the door remains locked during a power failure. This lock includes a backset of two and three-fourth inches, a Rhodes Lever, and a inchCinch Keyway with a six-pin cylinder that is keyed different. Additionally, this Grade 1 lock package includes two keys.

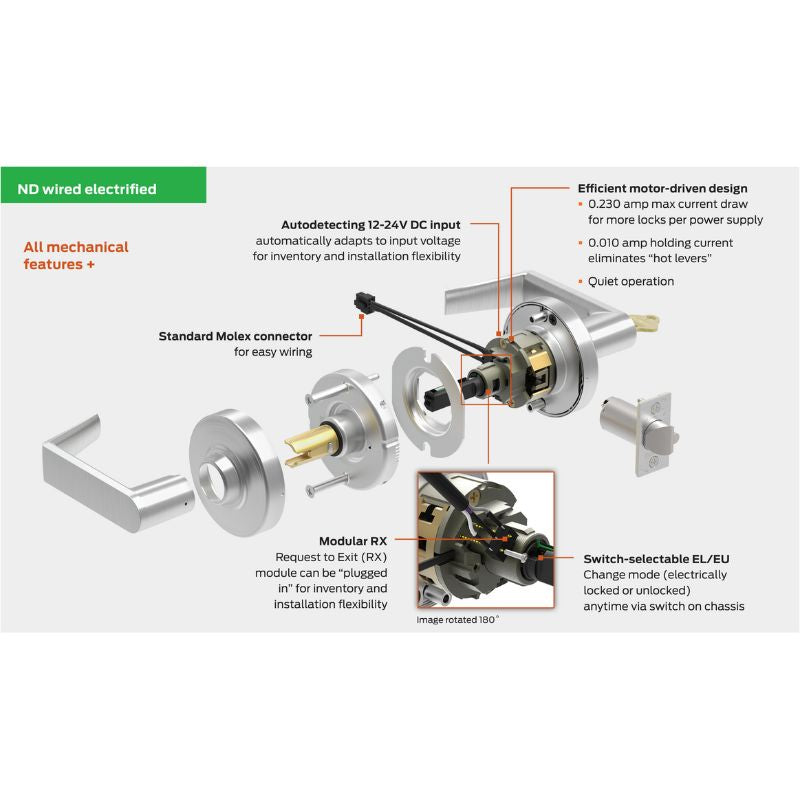

• Auto-detecting 12-24VDC input
• Low 0.23 amp max current draw allows multiple locks on a single power supply
• Modular Request to Exit (RX) can be added at any time

Product Highlights

The Schlage ND80EU-PD-RHO-626 C is suitable for commercial settings and provides reliable access control. Its construction is durable and meets grade 1 standards.

Product Information

Standard Information

• Manufacturer: Schlage
• SKU: ND80PDEU RHO

Technical Specifications

• Grade: Grade 1
• Installation: Commercial
• Origin: Mexico
• Application: Storeroom Lever
• Base Material: Brass or Bronze
• BAA Qualified: Yes
• Limited Warranty: 1 Year
• Finish: 626/US26D
• Function: 80EU-Fail Secure

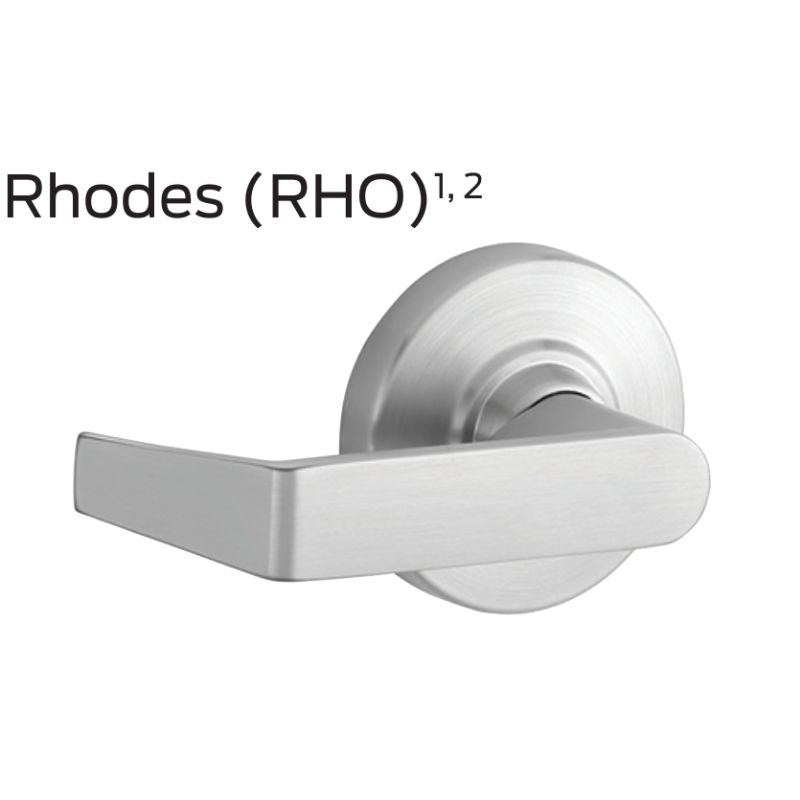

• Lever/Knob Design: RHO-Rhodes
• Rose/Escutcheon Design: 3-7/16 inches Diameter
• Cylinder Type: Conventional Cylinder
• Number of Pins: 6
• Keying: Keyed Different
• Number of Keys: 2
• Door Thickness: 1-3/4 inches to 2 inches
• Latch Type: Guarded Latch
• Latch Backset Dim: 2-3/4 inches
• Lock Face Size: 2-1/4 inches X 1-1/8 inches
• Strike Number: 10-025
• Strike Type: ASA
• Strike Height: 4-7/8 inches
• Strike Width: 1-1/4 inches
• Power: Hard Wired
• Operating Voltage: 12VDC/24VDC
• Amp Draw: 0.23
• Product Type: Electric Cylindrical Lock
• Input Voltage: 12VDC/24VDC
