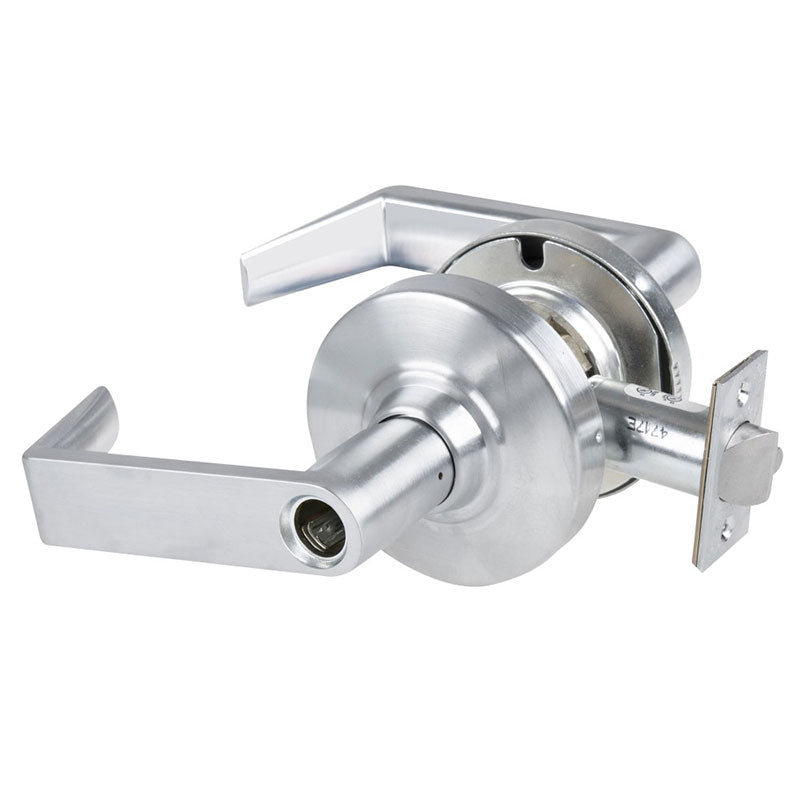

Schlage ND80EU-LD-RHO-626 Electrified Storeroom Lock 12VDC/24VDC

Product Description

The Schlage ND80EU-LD-RHO-626 is an electrified storeroom lock designed for commercial use. This model features a fail-secure design and is equipped with a Rhodes lever. The lock operates on selectable input voltage of twelve to twenty-four DC volts and has a low current draw, making it efficient for high-traffic areas.

• Fail secure storeroom function
• Supports auto-detecting voltage
• Suitable for commercial installation

Product Highlights

This product is ideal for areas requiring security and reliability.

Product Information

Standard Information

• Brand: Schlage
• MPN: ND80EU-LD-RHO-626

Technical Specifications

• Grade: Grade 1
• Installation: Commercial
• Origin: Mexico
• Application: Storeroom Lever
• Base Material: Brass or Bronze
• Limited Warranty: 1 Year
• Finish: Satin Chrome (626/US26D)
• Function: 80EU-Fail Secure
• Lever/Knob Design: RHO-Rhodes
• Door Thickness: 1-3/4 inches to 2 inches
• Latch Number: 14-047
• Latch Type: Guarded Latch
• Latch Backset Dim: 2-3/4 inches
• Lock Face Size: 2-1/4 inches x 1-1/8 inches
• Strike Height: 4-7/8 inches
• Strike Width: 1-1/4 inches
• Power: Hard Wired
• Operating Voltage: 12VDC/24VDC
• Amp Draw: 0.23
• Product Type: Electric Cylindrical Lock
