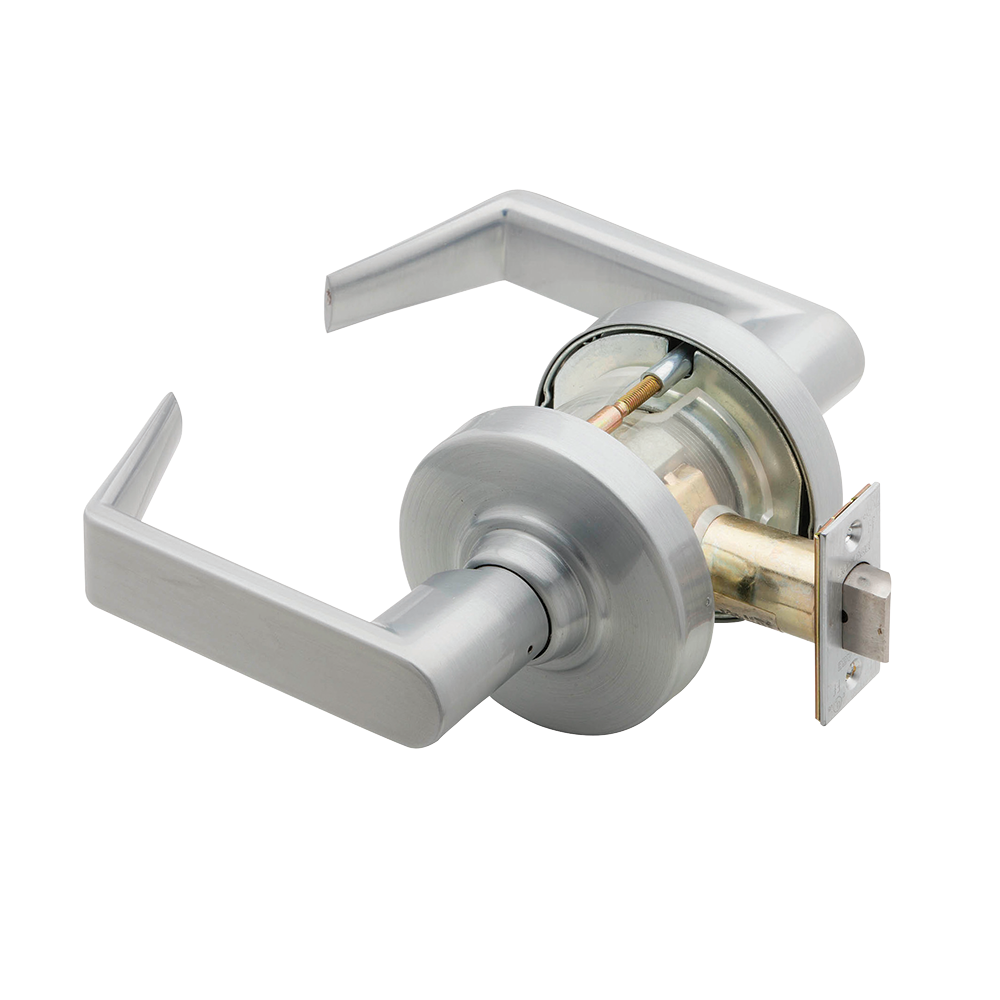

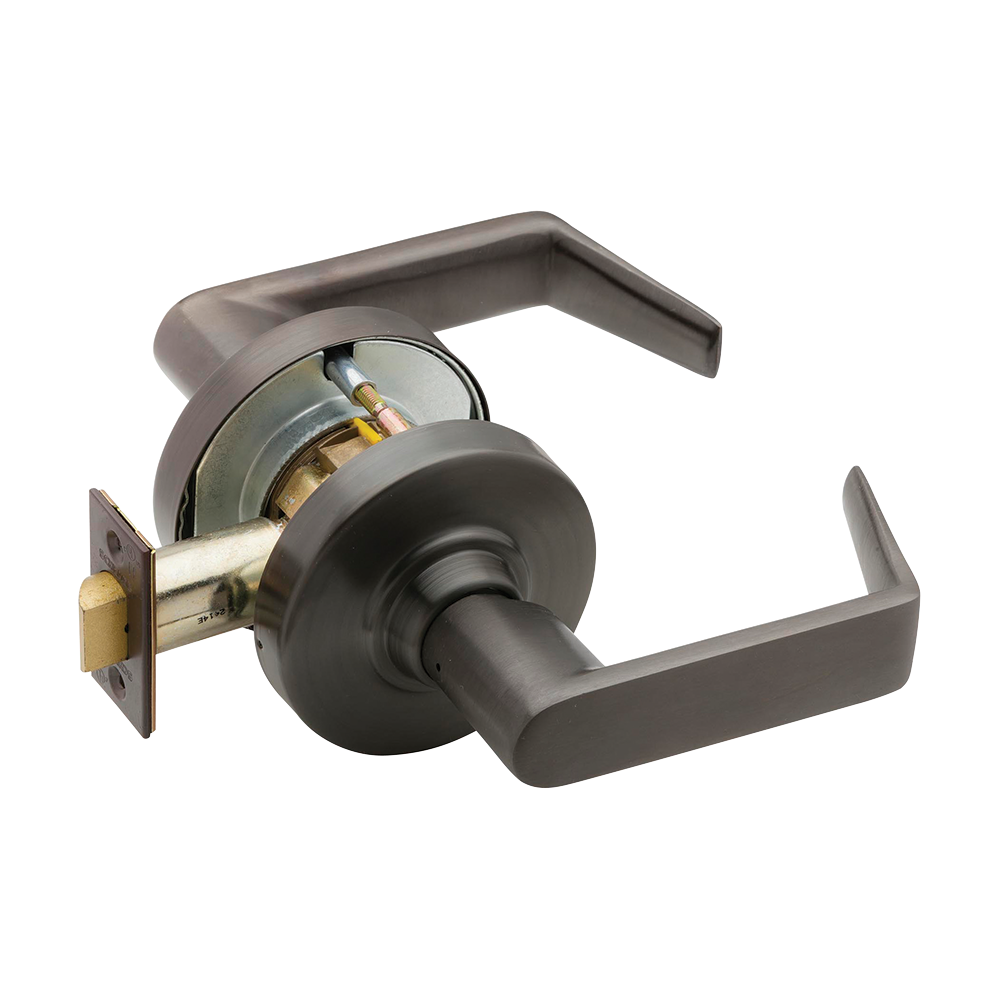

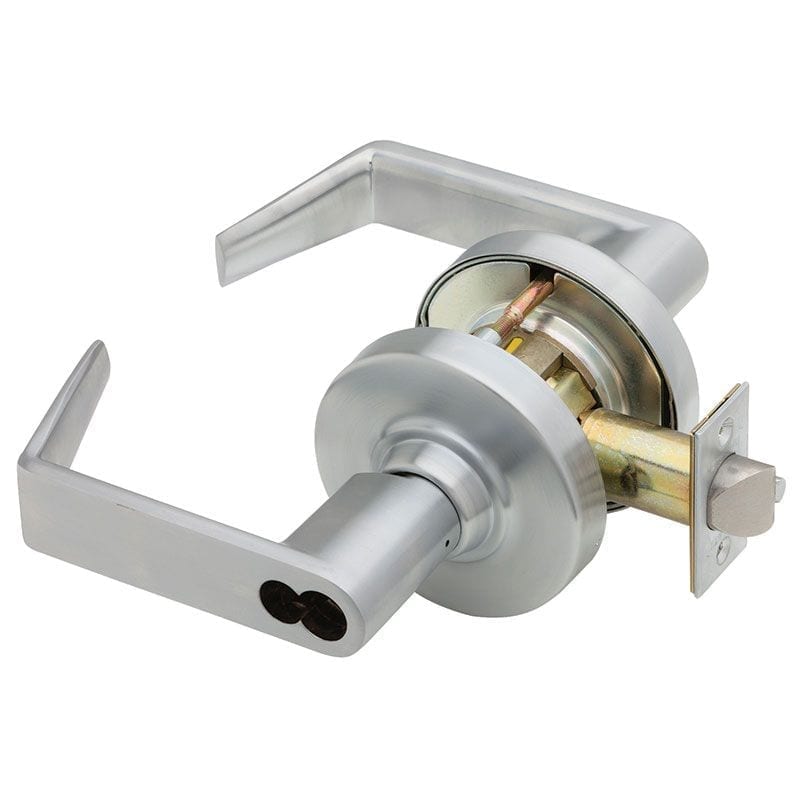

Schlage ND80-JD-RHO-613 ND80JD RHO Storeroom Lock

Product Description

The Schlage ND80-JD-RHO-613 is an ANSI/BHMA Grade 1 certified cylindrical lever lock designed for commercial use. This lock exceeds Grade 1 standards and allows for easy rekeying with interchangeable cores without disassembly. The ANSI function F86 ensures the outside lever remains locked, accessible only by a key, while the inside lever stays unlocked.

• Exceeds ANSI/BHMA Grade 1 requirements for durability.
• Withstands up to 3,100 in-lb. of lever torque and 1,600 lbs. of offset pull.
• Rated for 16 million cycles with minimal wear.

Product Highlights

This lock is ideal for heavy-duty use in environments that require high-security measures.

Product Information

Standard Information

• Brand: Schlage
• Lock Function: Storeroom

Technical Specifications

• Finishes: 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome
• Cylinder: Less Interchangeable Core
• Latch: 1/2 inch throw, deadlocking
• Strike: 4-7/8 inch x 1-1/4 inch ASA/ANSI strike
• Backset: 2-3/4 inch
• Door Thickness: 1-3/4 inch
• Warranty: 10 Years
• UL Listing: UL/cUL Listed
