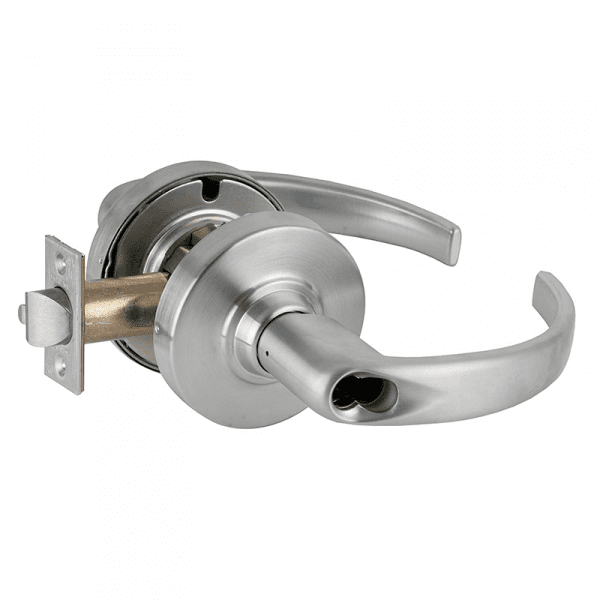

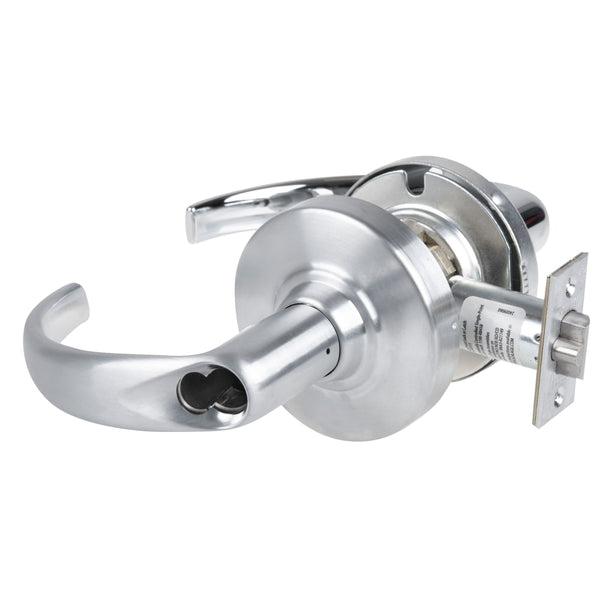

Schlage ND53-JD-SPA-626 Entrance Lever Lock Less Full Size Interchangeable Core

Product Description

The Schlage ND53-JD-SPA-626 is a cylindrical lever lock designed for entrance applications. It features a Sparta lever and is less full size interchangeable core. This lock is rated as ANSI/BHMA Grade 1, making it suitable for various commercial environments. It includes turn and push button locking mechanisms along with a deadlocking latch bolt. This product meets ADA requirements and is UL/cUL listed for fire safety up to three hours.

• ANSI/BHMA Grade 1 certified for commercial use
• Ideal for sectors like healthcare, education, and retail

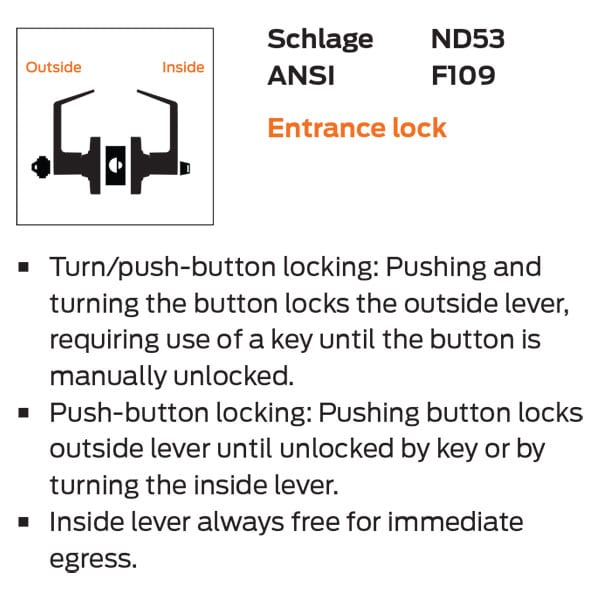

• Designed for easy operation with turn/push button locking

Product Highlights

The Schlage ND53-JD-SPA-626 provides enhanced security for high-traffic areas. Its heavy-duty construction ensures long-lasting durability and safety.

Product Information

Standard Information

• Brand: Schlage
• Lock Function: Entry (Entrance)

Technical Specifications

• Lever Design: SPA (Sparta)
• Cylinder: Less Interchangeable Core
• Latch: Half inch throw, deadlocking
• Strike: Four and seven-eighths by one and one-quarter inches, ANSI strike
• Backset: Two and three-quarter inches
• ADA Compliance: Meets A117.1 Accessibility Code
• Fire Rating: UL/cUL listed up to three hours
• Handing: Non-Handed
• Door Thickness: One and three-quarter inches
• Lock Chassis: Zinc plated for corrosion resistance
• Latchbolt: Steel, half inch throw
• Series: ND Series Lever Locks
• Country Of Origin: Mexico
• BAA Qualified: Yes
