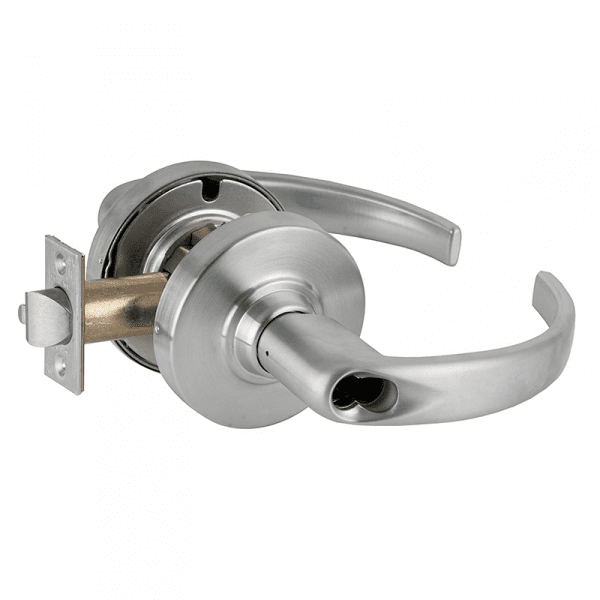

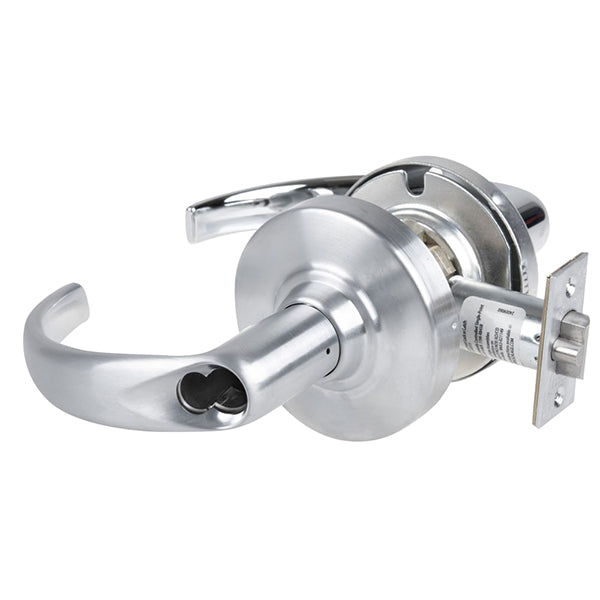

Schlage ND53-BD-SPA-626 ND Series Grade 1 Entrance Lock Sparta Lever Less Small Format Interchangeable Core

Product Description

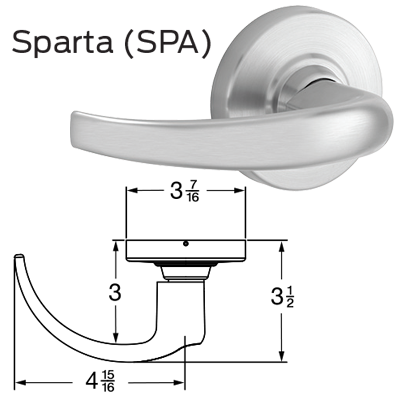

The Schlage ND53-BD-SPA-626 is a Grade 1 cylindrical lever lock designed for commercial use. It features an entrance function with a Sparta lever design and is suitable for small format interchangeable cores, which need to be purchased separately. This lock significantly exceeds the requirements established by ANSI/BHMA Grade 1 standards.

• ANSI Function F109 – Turn/push-button locking mechanism.
• Interchangeable core allows quick rekeying without the need for disassembly.
• Withstands 3,100 in-lb. of lever torque and 1,600 lbs. of offset lever pull.

Product Highlights

Ideal for use in high-traffic areas, this lock offers both security and convenience.

Product Information

Standard Information

• Brand: Schlage
• Function: Entrance

Technical Specifications

• Lock Finish: Available in multiple finishes including Satin Chrome and Bright Brass.
• Cylinder Type: Less Interchangeable Core for easy rekeying.
• Dimensions: Fits doors with a thickness of 1-3/4 inches.
• Fire Rating: UL/cUL listed for up to 3 hours.
• Usage: Heavy Duty; suitable for commercial installations.
• ADA Compliant: Yes, meets A117.1 requirements.
• Manufacturer: Schlage
• Grade: Grade 1
