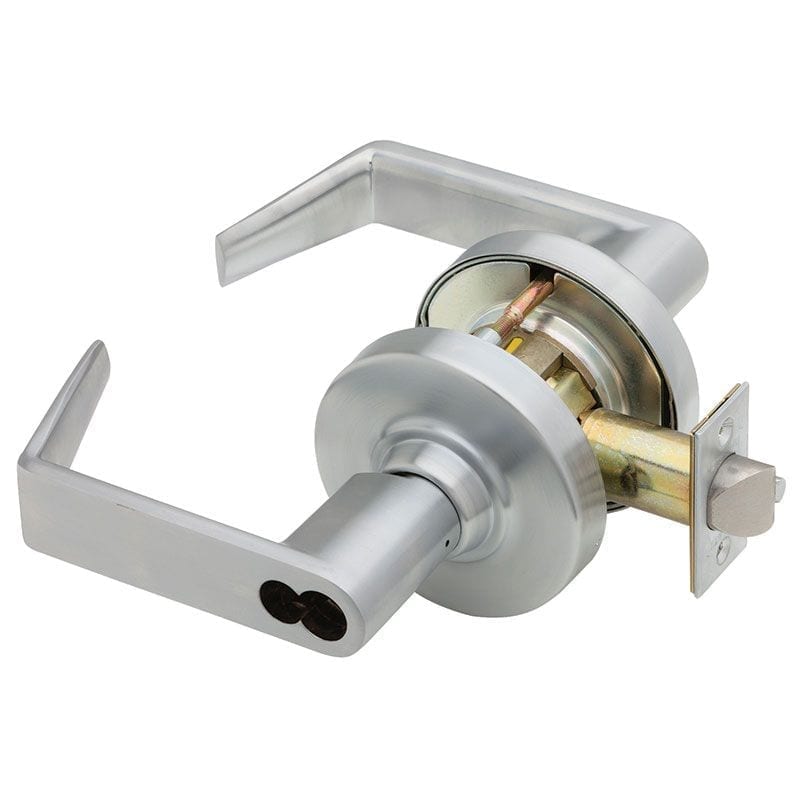

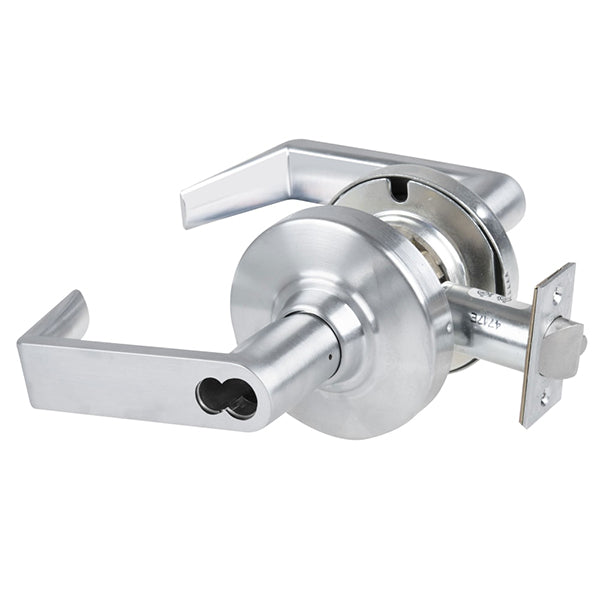

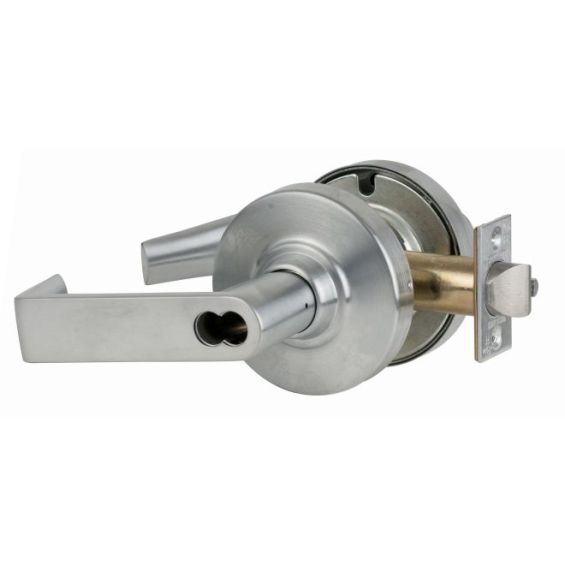

Schlage ND53-BD-RHO-626 Entrance Lock SFIC Less Core RHO Lever

Product Description

The Schlage ND53-BD-RHO-626 is an entrance lock designed for security and functionality. This cylindrical lock features a Rhodes lever and is prepped for a small format interchangeable core, sold without the core. With a two and three-quarter inch backset and a four and seven-eighths inch strike, it meets the requirements for Grade 1 locks suitable for various commercial and institutional applications.

• Exceeds ANSI/BHMA A156.2 standards for Grade 1 locks.

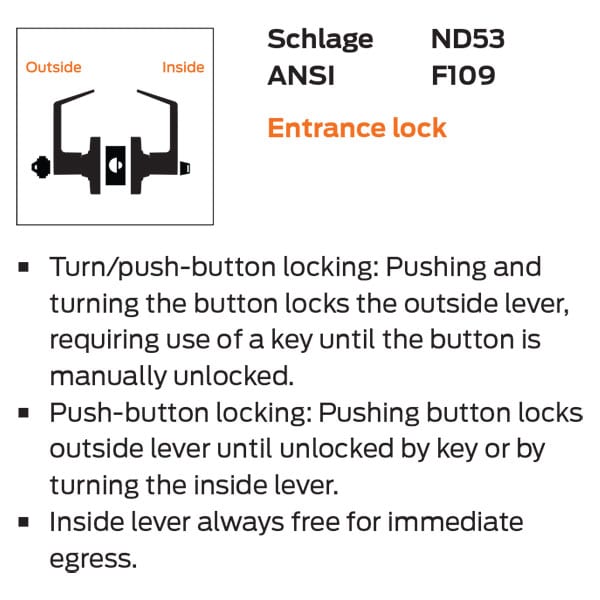

• Turn/push-button locking mechanism for added security.
• Deadlocking latch bolt for enhanced protection.

Product Highlights

The ND53-BD-RHO-626 is designed for heavy-duty use while ensuring easy installation on ANSI 161 prepped doors, making it ideal for both new construction and retrofitting.

Product Information

Standard Information

• Manufacturer: Schlage
• SKU: ND53PD RHO 626

Technical Specifications

• Grade: Grade 1
• Installation: Commercial
• Origin: Mexico
• Unit of Measure: Each
• UL Listing Type: UL/cUL Listed
• ANSI Number: ANSI A156.2 Series 4000, Grade 1
• BAA Qualified: Yes
• Limited Warranty: 10 Years
• Fire Rated: 3 Hours
• ADA Compliance: Yes
• Function: 53 Entrance Lock
• Lever/Knob Design: RHO Rhodes Lever
• Rose/Escutcheon Design: 3-7/16 inch Rose Diameter
• Cylinder Type: SFIC Prep Less Core
• Handing: Non-handed
• Door Thickness: 1-5/8 inches to 2-1/8 inches
• Std. Latch Type: Deadlatch
• Std. Latch Backset Dim: 2-3/4 inches
• Lock Face Size: 1-1/8 inches x 2-1/4 inches
• Strike Size: 4-7/8 inches x 1-1/4 inches
