Schlage ND50-LD-RHO-626 Cylindrical Entrance Lock Rhodes Lever Less Cylinder

Product Description

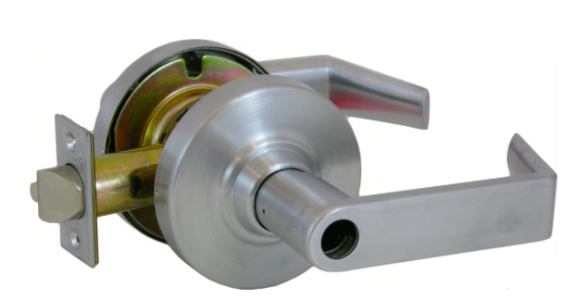

The Schlage ND50-LD-RHO-626 is a cylindrical entrance and office lock designed for commercial use. This model features a Rhodes lever and is sold without a cylinder. It has a standard backset of two and three-quarters inches and includes a four and seven-eighths inch strike. Manufactured for high security and durability, this grade one lock is ideal for various applications, including healthcare facilities, educational institutions, government buildings, and retail outlets.

• Exceeds ANSI/BHMA A156.2 standards for grade one locks
• Offers thirty-one mechanical functions
• Available with nine lever designs and two rose designs

Product Highlights

Suitable for a range of commercial environments, the Schlage ND50-LD-RHO-626 is designed to enhance security while providing ease of use.

Product Information

Standard Information

• Manufacturer: Schlage
• SKU: ND50LD RHO 626

Technical Specifications

• Grade: Grade 1
• Installation: Commercial
• Origin: Mexico
• UL Listing Type: UL/cUL Listed
• ANSI Number: ANSI A156.2 Series 4000, Grade 1
• Limited Warranty: 10 Years
• Fire Rated: 3 Hours
• Door Thickness: 1-5/8 inches to 2-1/8 inches
• Function: Entrance Office Lock
• Lever Design: Rhodes Lever
• Roses: Wrought brass
• Lock Face Size: 1-1/8 inches x 2-1/4 inches
• Screws: Wood/Machine Screws
• Product Type: Cylindrical Lock
