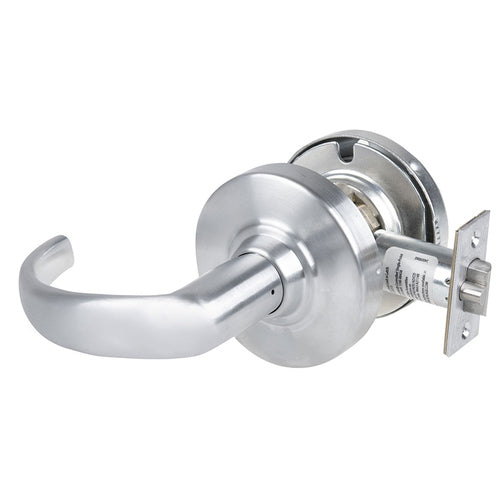

Schlage ND25D-SPA-622 ND25D SPA Exit Lever Lock

Product Description

The Schlage Lock ND25D-SPA-622 is a Grade-1 cylindrical lever lock suitable for commercial applications. This lock features an exit function with a Sparta lever design. It exceeds ANSI/BHMA Grade 1 standards, ensuring durability and reliability in heavy-duty use. The inside lever is always free for immediate egress.

• Exceeds ANSI/BHMA Grade 1 requirements
• Resistant to abusive lever torque and offset lever pull
• Design shows minimal droop or wobble after extensive use

Product Highlights

This lock is designed for high-traffic areas and is compliant with ADA requirements.

Product Information

Standard Information

• Brand: Schlage
• Lock Function: Exit / Communicating

Technical Specifications

• Lever Design: SPA (Sparta)
• Usage: Heavy Duty
• ANSI/BHMA Standard: Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
• ADA Compliance: Meets ADA requirements – A117.1 Accessibility Code
• Fire Rating: UL/cUL listed up to 3 Hours
• Handing: Non-Handed
• Backset: 2-3/4 inches
• Latch: 1/2 inch throw, deadlocking
• Strike: 4-7/8 inches x 1-1/4 inches ASA/ANSI strike
• Door Thickness: 1-3/4 inches
• Warranty: 10 Years
• Function: 25-Exit Lock
• Series: ND Series Lever Locks
• Grade: Grade 1
• Country Of Origin: Mexico
• Finish: Matte Black (622/US19)
• Cylinder Type: Non-Keyed
