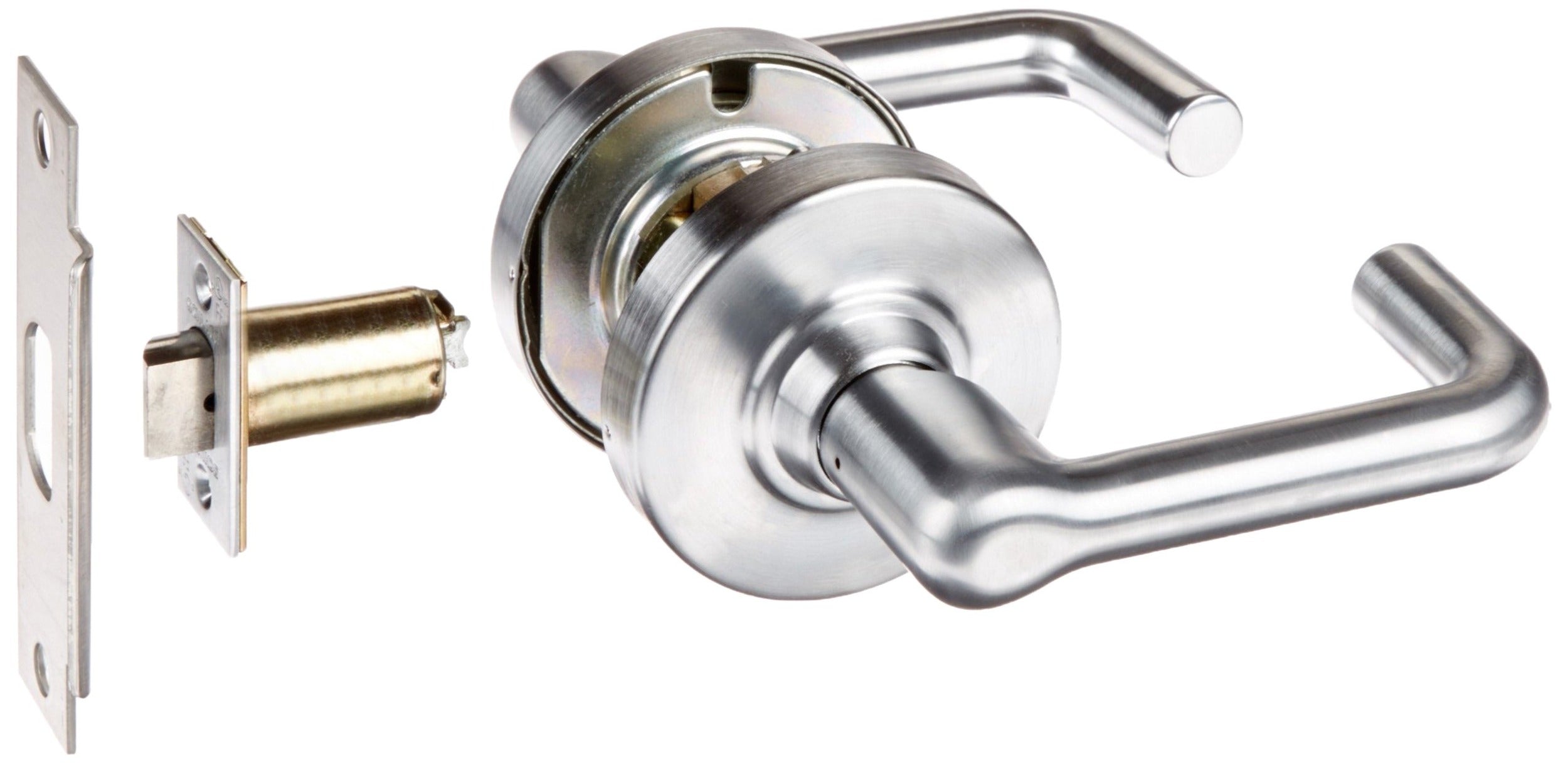

Schlage ND10S-TLR-626 Passage Lever Lockset Satin Chrome

Product Description

The SCHLAGE ND10S-TLR-626 is an extra heavy-duty passage lever lockset built for commercial, institutional, and industrial door applications. It operates as a passage function - no locking or keying - making it the right choice for corridors, storerooms, and interior doors where free passage is required at all times. The finish is Satin Chrome (626). This unit is Grade 1 rated, UL Listed, and ANSI certified, meeting the demands of high-traffic facilities where hardware durability and code compliance are non-negotiable. Licensed locksmiths, commercial door hardware installers, and facility maintenance trades handle installation.

The ND10S-TLR-626 is designed for heavy-use environments including schools, universities, hospitals, medical offices, retail spaces, government buildings, and corporate facilities. It fits both interior and exterior door applications where a non-locking lever is appropriate. The levereset is non-handed and field reversible, simplifying installation and reducing the need to stock multiple configurations. It accommodates door thicknesses from 1-5/8 inches to 2-1/8 inches, covering the full range of standard commercial door profiles.

Key Features

• Grade 1 extra heavy-duty construction rated for commercial, institutional, and industrial use
• UL Listed and ANSI certified lever lockset
• Non-handed design - easily field reversible without special tools
• Standard backset of 2-3/4 inches for compatibility with common door prep
• Accommodates door thicknesses from 1-5/8 inches to 2-1/8 inches
• Includes ANSI Strike measuring 1-1/4 inches x 4-7/8 inches
• Satin Chrome (626) finish for a clean, corrosion-resistant appearance in high-contact environments

Compatibility

Designed as an OEM-style commercial passage lever lockset compatible with standard ANSI door prep. Fits doors with 2-3/4 inch backset and thicknesses between 1-5/8 inches and 2-1/8 inches typical of commercial hollow metal and wood door assemblies.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial hardware standards and local building codes. Verify door prep matches the required backset and bore dimensions before installation. Ensure the door is properly aligned and the frame strike is correctly positioned for positive latch engagement. No keying or cylinder work is required for this passage function unit.
