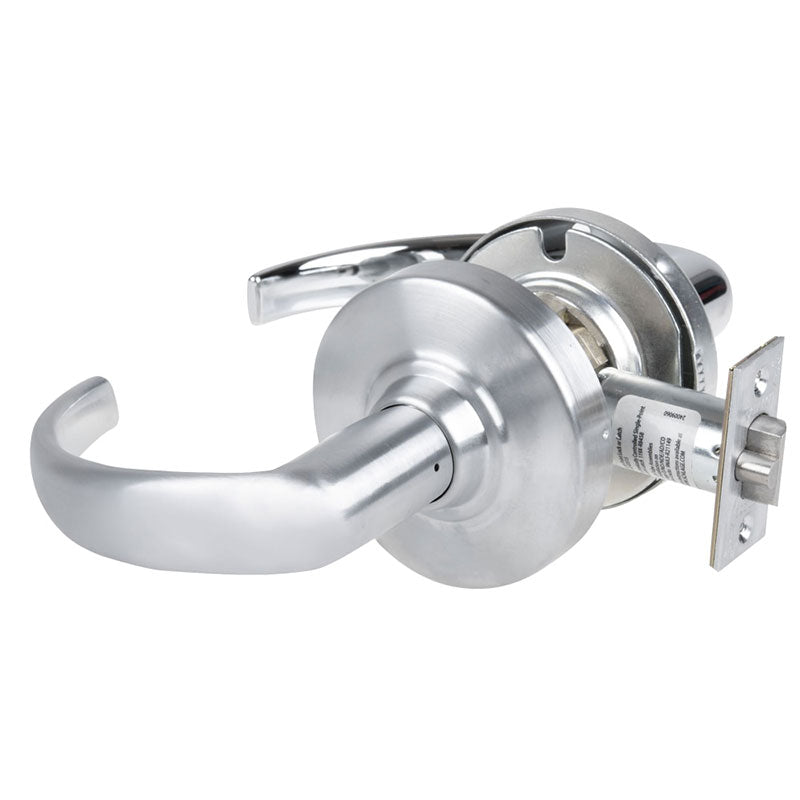

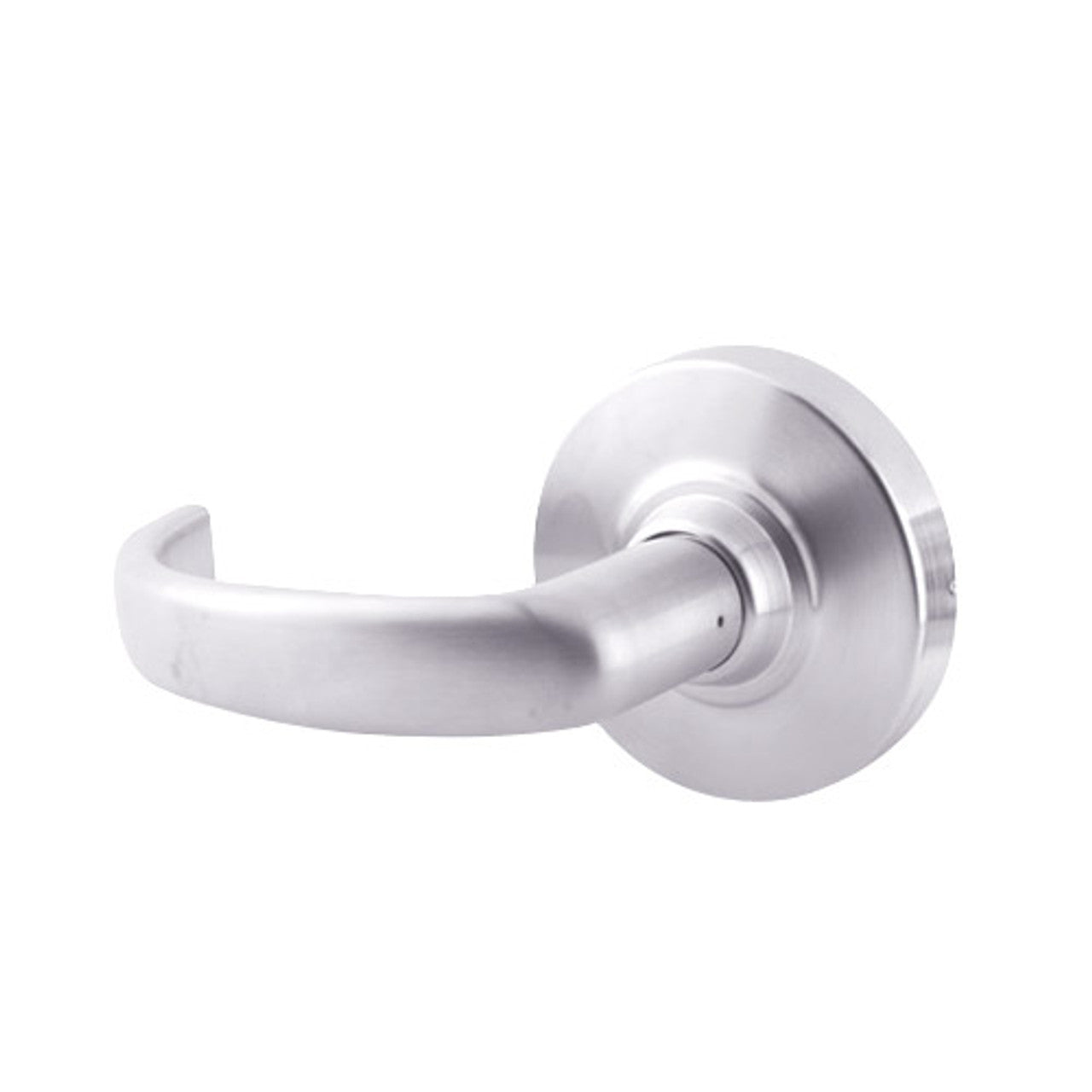

Schlage ND10S-SPA-626 ND10S SPA Passage Lever

Product Description

The Schlage Lock ND10S-SPA-626 is an ANSI/BHMA Grade 1 certified cylindrical lever lock designed for passing access. This lever lock features the Sparta design and is commonly used in commercial settings such as schools, hospitals, and retail spaces. Its construction exceeds ANSI Grade 1 standards, making it the strongest cylindrical lock from Schlage.

• Certified to ANSI/BHMA Grade 1 standards.
• Maintains stability with minimal droop after over sixteen million cycles.
• ADA compliant for accessibility.

Product Highlights

This lock is ideal for high-traffic doors requiring controlled access while ensuring compliance with accessibility regulations.

Product Information

Standard Information

• Brand: Schlage
• Usage: Heavy Duty

Technical Specifications

• Lock Function: Passage
• Lever Design: SPA (Sparta)
• Fire Rating: UL/cUL listed up to 3 hours
• Backset: 2-3/4 inches
• Door Thickness: 1-3/4 inches
• Warranty: 10 years
• Installation: Commercial
• Origin: Mexico
• Product Type: Cylindrical Lock
• Key Function: Non-Keyed
