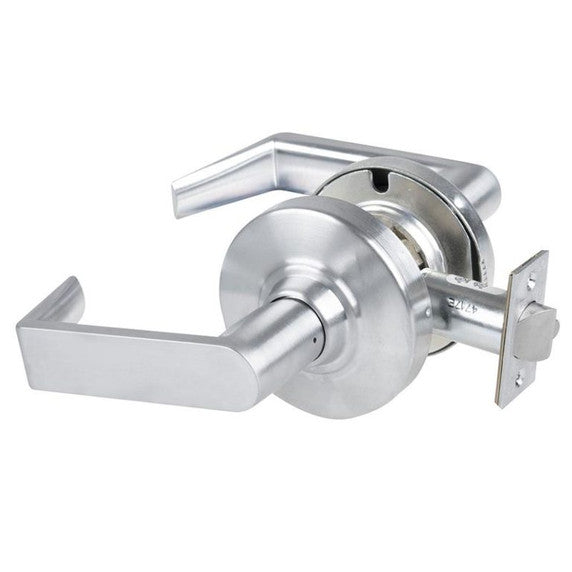

Schlage ND10S-RHO-625 ND Series Passage Lever Lock Rhodes Style

Product Description

The Schlage ND10S-RHO-625 is a heavy-duty passage lever lock designed for durability and ease of use. It features a non-handed mechanism, allowing installation on either left or right-hand doors. This lock is suitable for areas requiring passage access, maintaining a secure yet accessible environment.

• Heavy-duty construction for long-lasting performance
• Rhodes style lever for easy operation
• Both levers are always unlocked for constant access

Product Highlights

This lock offers a passage latch function, making it ideal for interior doors where locking is not required. Its robust build meets industry standards for performance and safety.

Product Information

Standard Information

• Function: Passage Latch - ANSI F75

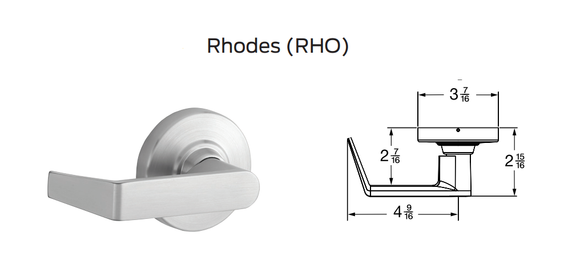

• Lever Style: Rhodes (RHO)

Technical Specifications

• Handing: Non-Handed
• Door Range: 1 5/8 inches - 2 1/8 inches standard
• Backset: 2 3/4 inches (70 mm) standard, 2 3/8 inches (60 mm) available
• Faceplate: Standard: 1 1/8 inches x 2 1/4 inches; Optional: 1 inch x 2 1/4 inches for 2 3/8 inches backset doors
• Latch Bolt: Standard: 1/2 inch throw via Oil Impregnated Stainless Steel
• Strikes: Standard: ANSI Curved Lip: 1 1/4 inches x 4 7/8 inches x 1 3/16 inches; Optional: T Strike
• Warranty: 10 years
• Certifications: ANSI/BHMA compliant with A156.2 grade 1 requirements
