Product Description

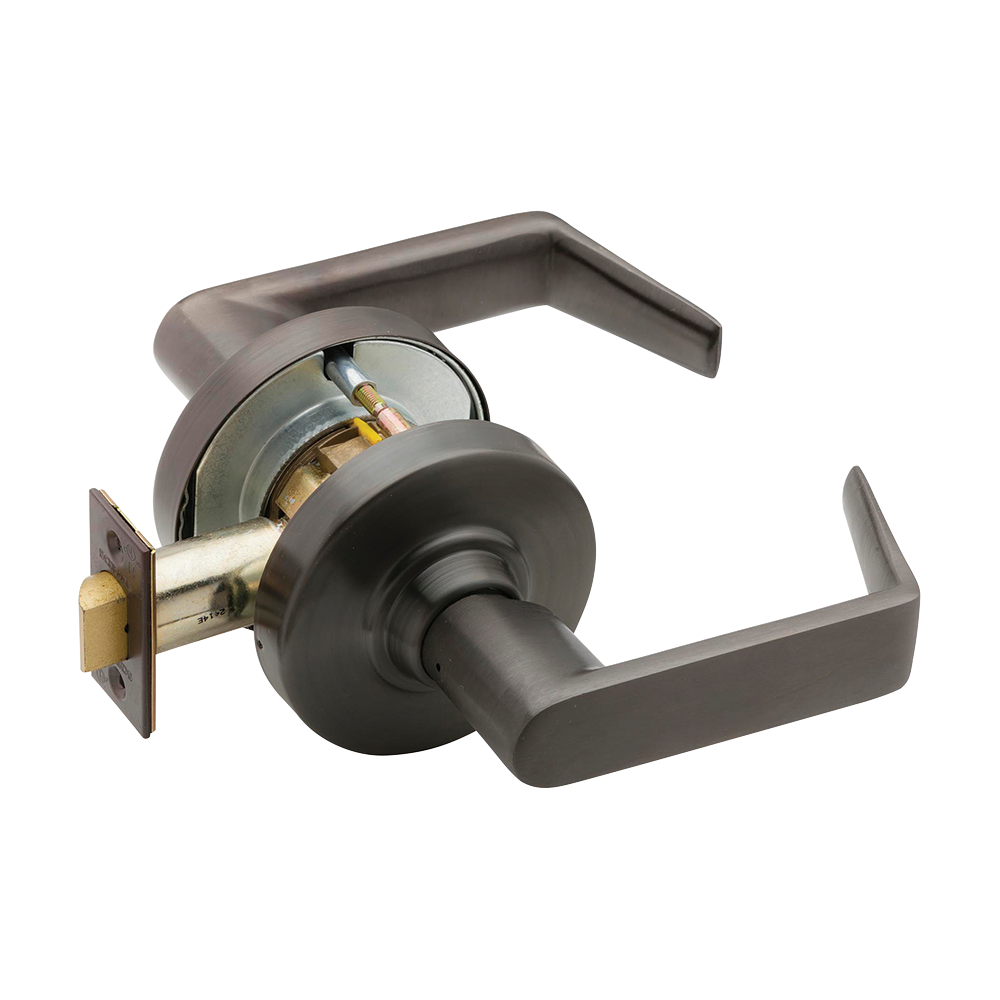

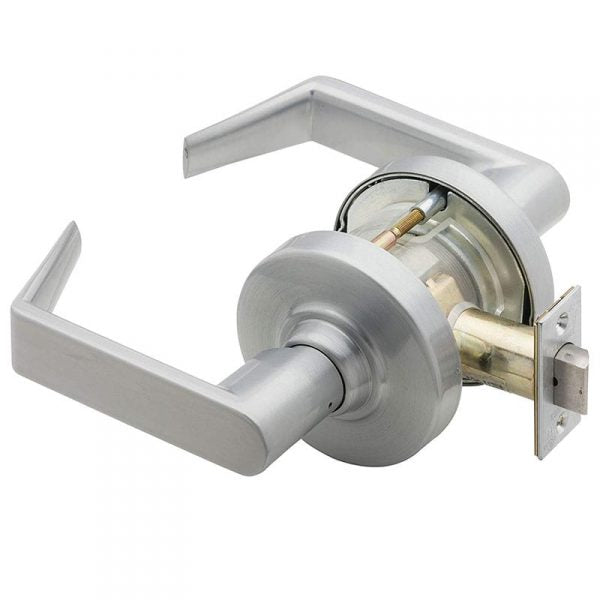

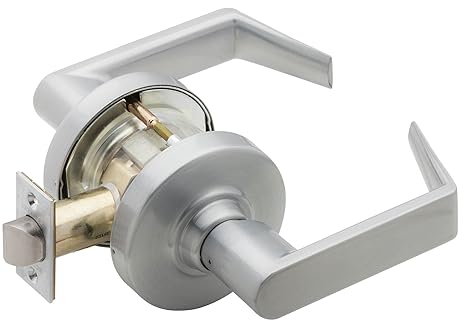

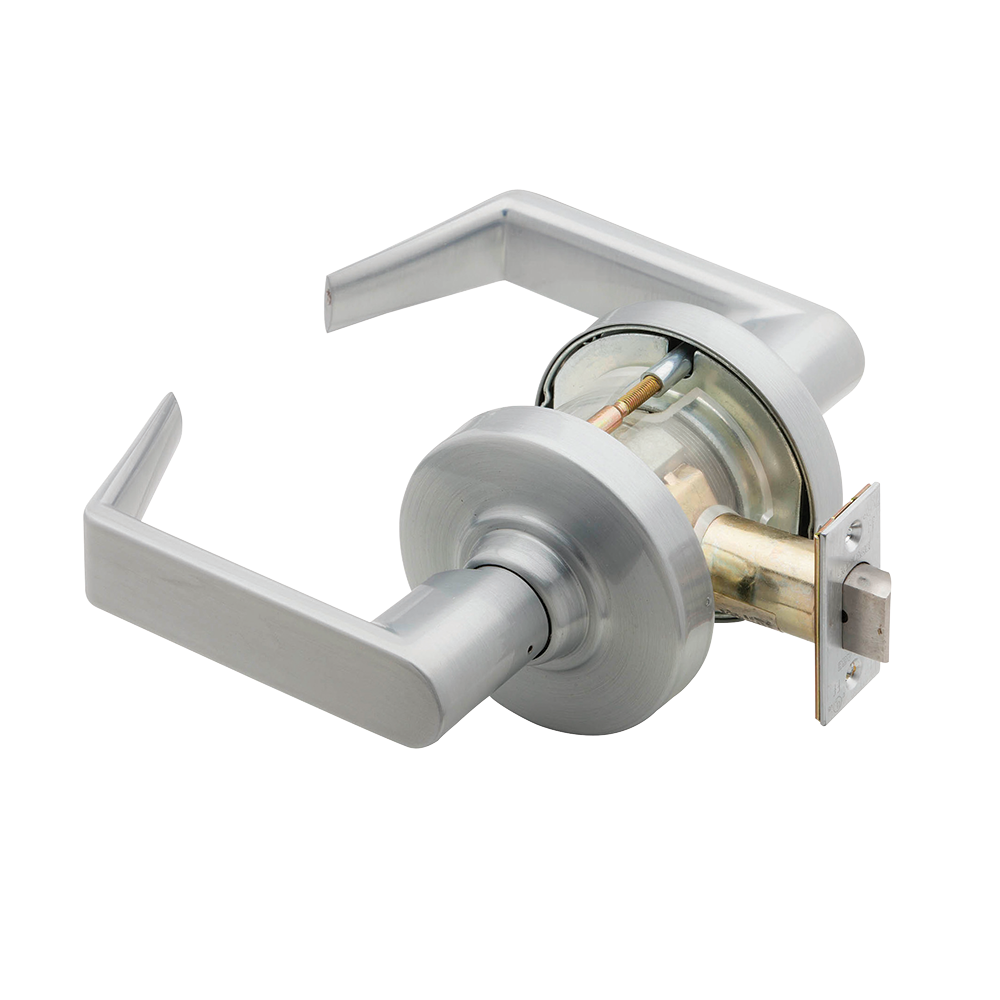

The Schlage Lock ND10S-RHO-622 is an ANSI/BHMA Grade 1 certified passage lever designed for high-performance security needs. This lock is ideal for commercial applications such as healthcare, education, government, and retail environments. The design features a latch bolt operated by levers at all times, ensuring functionality without compromise.
- Meets and exceeds ANSI/BHMA Grade 1 standards
- Designed for heavy-duty use across various sectors
- Durable construction with minimal droop or wobble after extensive use
Product Highlights
The Schlage ND10S-RHO-622 combines strength with a proven design to provide security and ease of use in busy environments.
Product Information
Standard Information
-
Brand: Schlage
-
Lock Function: Passage
Technical Specifications
-

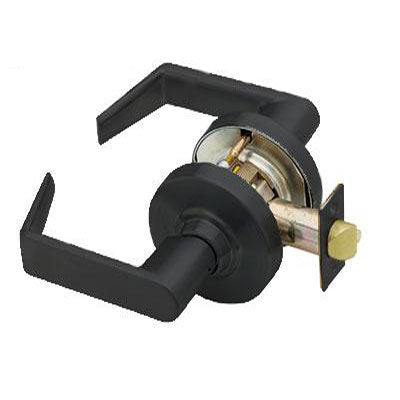

Finishes: 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643E Aged Bronze
-
Usage: Heavy Duty
-
Lever Design: RHO (Rhodes)
-
ANSI/BHMA Standard: Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
-
ADA Compliance: Meets ADA requirements – A117.1 Accessibility Code
-
Fire Rating: UL/cUL listed up to 3 Hours (A Label)
-
Handing: Non-Handed
-
Backset: 2-3/4 inches
-
Latch: 1/2 inch throw – 1-1/8 inches x 2-1/4 inches face
-
Strike: 4-7/8 inches x 1-1/4 inches ASA/ANSI strike
-
Door Thickness: 1-3/4 inches
-
Warranty: 10 Years
